If you have ever wondered how inkjet printers work, the short answer is that they spray microscopic droplets of liquid ink through tiny nozzles in a printhead onto paper, building up text and images one tiny dot at a time. The idea seems straightforward at first glance, yet the engineering inside is far more refined than most people realize. A typical inkjet printer fires thousands of ink droplets per second, each smaller than the width of a human hair, and positions them so precisely that the dots blend into smooth photo-quality color.
In this guide, we will walk through what an inkjet printer is, the key parts inside it, the two main technologies that power it, and the step-by-step inkjet printing process from “print” to finished page:
-
Epson ColorWorks C7500 Gloss Inkjet Color Label Printer SKU: C31CD84311 GTIN: 814420980107$9,349.00
FREE SHIPPING over $199*
Orders before 12PM EST usually Ship Same Business Day -
Epson ColorWorks CW-C6000A Gloss Color Inkjet Label Printer with Auto Cutter SKU: C31CH76A9991$3,059.00
FREE SHIPPING over $199*
Orders before 12PM EST usually Ship Same Business Day -
Epson ColorWorks C3500 Inkjet Color Label Printer SKU: C31CD54011 GTIN: 814420980046$2,419.00
FREE SHIPPING over $199*
Orders before 12PM EST usually Ship Same Business Day
What Is an Inkjet Printer?
An inkjet printer is a non-impact device that prints text and graphics by depositing fine droplets of liquid ink directly onto paper or compatible media. Unlike laser printers, which use powdered toner fused with heat, inkjet printers use liquid ink stored in cartridges. The ink is pushed through a printhead containing hundreds or thousands of nozzles, each capable of releasing droplets so small they are measured in picoliters.
Inkjet printers dominate the home and small business market because they are affordable, quiet, compact, and capable of producing vibrant color prints. They are also widely used in commercial settings for on-demand color label printing, photo printing, and short-run packaging work.
Key Parts of an Inkjet Printer
To understand how an inkjet printer works, it helps to know the parts working together inside the machine. The following inkjet printer components show up in almost every modern unit you will come across.
Printhead. The printhead sits at the very core of the printer. It contains rows of microscopic nozzles, often hundreds per color, that fire ink droplets onto the page. In some models, the printhead comes built into the ink cartridge itself, while in others it is fixed inside the printer as a permanent component.
Nozzles. Each printhead holds hundreds to thousands of nozzles, typically about a tenth the width of a human hair. They control droplet size and placement.
Ink cartridges. These hold liquid ink in the four standard inkjet colors: cyan, magenta, yellow, and black, often referred to as CMYK. Some photo printers add light cyan, light magenta, or gray cartridges for finer color reproduction.
Stepper motors and a belt. A stepper motor drives a belt that moves the printhead assembly precisely back and forth across the page. A second stepper motor controls the paper feed, advancing the sheet a fraction of an inch between passes.
Stabilizer bar. The printhead rides along this bar, which keeps motion smooth and consistent so droplets land exactly where they should.

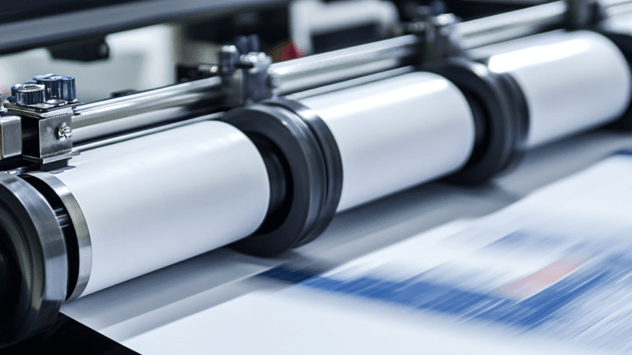

Paper feed assembly. Pickup rollers grab one sheet at a time from the tray and guide it along a paper path, keeping it flat as the printhead works.
Control circuitry. A built-in microprocessor receives data from your computer, interprets the image, and tells every nozzle exactly when and how much to fire.
Duplex unit. Found on more advanced inkjet printers, this mechanism flips the paper so the printhead can print on the other side automatically.
The Two Core Inkjet Technologies
Although every inkjet printer fires ink through a nozzle, there are two main ways it does so. Understanding the difference matters when choosing a printer for your business.
Thermal Inkjet (Bubble Jet) Technology
Thermal inkjet, sometimes called bubble jet, is the most common technology used in consumer printers from brands like HP, Canon, and Brother. Inside each nozzle is a tiny resistor that heats up in a fraction of a second. The heat vaporizes a small amount of ink and forms a bubble. That rapidly growing bubble pushes a single droplet out through the nozzle and onto the page. Once the heating element cools and the bubble collapses, fresh ink is pulled in from the reservoir to refill the chamber for the next pulse.
Thermal inkjet technology is compact, inexpensive to manufacture, and capable of high firing rates. It is the dominant approach in industrial thermal inkjet (TIJ) coding printers as well, because the entire system fits into a tiny, low-maintenance footprint.
Piezoelectric Inkjet Technology
Piezoelectric inkjet technology, used mainly by Epson, replaces the heater with a piezoelectric crystal at each nozzle. When an electrical charge is applied, the crystal flexes and creates a pressure pulse that pushes an ink droplet out. No heat is involved.
Because piezoelectric printheads do not heat the ink, they can handle a wider range of ink chemistries, including pigment, UV-curable, and solvent-based inks. These printheads also have a longer working life and give much finer control over the exact size of each droplet released. This is why commercial color label printers like the Epson ColorWorks CW-C4000 and the Epson ColorWorks CW-C6000A use piezoelectric PrecisionCore printheads to deliver sharp, photo-quality labels at high speed.
Continuous Inkjet (CIJ) Printing
There is also a third industrial variant called continuous inkjet printing. In a CIJ system, ink is pumped continuously through a nozzle, and an electric charge deflects unused droplets back into a recirculation tank. CIJ is used mainly for product coding, date stamps, and high-speed packaging lines rather than office printing.
How Does an Inkjet Printer Work, Step by Step
Now that you know the parts and the technology, here is the inkjet printing process from the moment you click “print” to the finished page.
Step 1: Data preparation. Your computer sends the digital file to the printer. The printer driver translates the image into a grid of dots, deciding exactly which color and intensity each pixel should be.
Step 2: Paper feed. Pickup rollers draw one sheet from the input tray and guide it into position. Sensors confirm the paper is loaded; if not, the printer alerts you to add more.
Step 3: Printhead movement. The stepper motor and belt move the printhead assembly across the page along the stabilizer bar. The printhead pauses for a fraction of a second at each position, fires a burst of droplets, then moves a tiny distance and fires again. The motion looks continuous, but it is actually a precise stop-start sequence.
Step 4: Ink ejection and droplet formation. Depending on the technology, either a heated bubble or a flexing crystal pushes a droplet out of each active nozzle at speeds of around 10 meters per second. Droplet sizes are measured in picoliters, and resolutions typically range from 600 DPI in basic models up to 1200 x 1200 DPI or even higher on professional inkjet label printers.
Step 5: Color mixing. By combining cyan, magenta, yellow, and black droplets in different ratios, the printer creates a full color spectrum on the page. Overlapping dots blend visually to produce smooth gradients and natural skin tones.
Step 6: Drying. Once the ink lands, it is absorbed into the paper. Modern inkjet inks dry within seconds, especially on inkjet-specific paper. Some commercial machines add airflow or mild heat to speed up drying.
Step 7: Paper advance and ejection. Between each pass of the printhead, the paper feed motor advances the sheet a fraction of an inch. When the page is complete, it is ejected into the output tray. On duplex-capable inkjet models, the duplexer flips the page so the back side can be printed too.
Inkjet vs Laser Printers
A common question alongside inkjet operation is how these printers compare to laser printers. The two technologies are designed for different jobs.
Inkjet printers rely on liquid ink and are at their best when producing vivid color photos, detailed graphics, and labels. They have a lower upfront cost, are smaller, and print on a wider variety of media, including glossy photo paper, fabric, and adhesive labels. Laser printers use powdered toner fused to the page with heat, which makes them faster for high-volume black-and-white text documents and gives them a lower cost per page at scale.
For businesses that print color labels, packaging, or anything where image quality matters, inkjet is usually the better fit. For high-volume office text printing, a laser is often more economical. You can compare both options across our full color label printer collection.
Paper and Media for Inkjet Printers
The paper you choose has a real impact on print quality. Inkjet ink is liquid, so it needs media that absorbs it properly.
Plain inkjet paper. Good for everyday documents and quick drafts. Designed to absorb ink without bleeding.
Matte inkjet paper. Offers a non-glare, evenly textured surface that suits document-heavy projects, reports, and slide handouts.
Glossy photo paper. Has a coated surface that holds ink near the top layer for vivid colors and sharp detail. Best for photo printing.
Specialty media. Inkjet printers can also print on labels, transparencies, iron-on transfers, envelopes, and even some fabrics. For businesses needing professional label media, our Epson label printers support a wide selection of matte and gloss label stocks.
Matching the right paper to your printer settings and ink type is one of the easiest ways to improve print results without changing hardware.
Wrapping Up
Inkjet printers may look simple from the outside, but inside they are a precise piece of engineering: a printhead with thousands of nozzles, stepper motors moving in tiny synchronized steps, and ink droplets fired so accurately that they build full-color photos and labels one dot at a time. Whether your printer uses thermal or piezoelectric technology, the process behind every page is a careful balance of mechanics, electronics, and chemistry.
Need more help understanding how inkjet printers work? Contact the TCS Digital Solutions expert support team at orders@tcsdigitalsolutions.com or call +1 (762) 208-6985. Visit our blog for more insights.
Frequently Asked Questions
Are Inkjet Printers Good for Everyday Use?
Yes. Inkjet printers are quiet, compact, and produce excellent color, making them a great fit for homes, small offices, and businesses that need vibrant prints or labels.
How Are Thermal Inkjet Printers Different From Piezoelectric Inkjet Printers?
Thermal inkjet printers use heat to form a bubble that fires ink, while piezoelectric printers use a flexing crystal driven by electricity. Piezoelectric models support more ink types and tend to last longer; thermal models are usually cheaper and more compact.
Do Inkjet Printers Use CMYK?
Yes. Most inkjet printers use four primary inks: cyan, magenta, yellow, and black, combined to produce the full color range. Some photo printers add extra cartridges for finer color reproduction.
How Small Are Inkjet Ink Droplets?
Droplets are measured in picoliters and can be as small as 1 to 2 picoliters in advanced printers. The dots they form on paper are typically tens of microns across, smaller than a human hair.
What is the Typical Drying Time for Inkjet Ink?
Most modern inkjet prints dry in a few seconds on the right paper. Glossy and specialty media may take slightly longer; matte paper dries fastest!
