Epson ColorWorks C6000 Series: On-Demand Inkjet Color Label Printers | Take the Tour

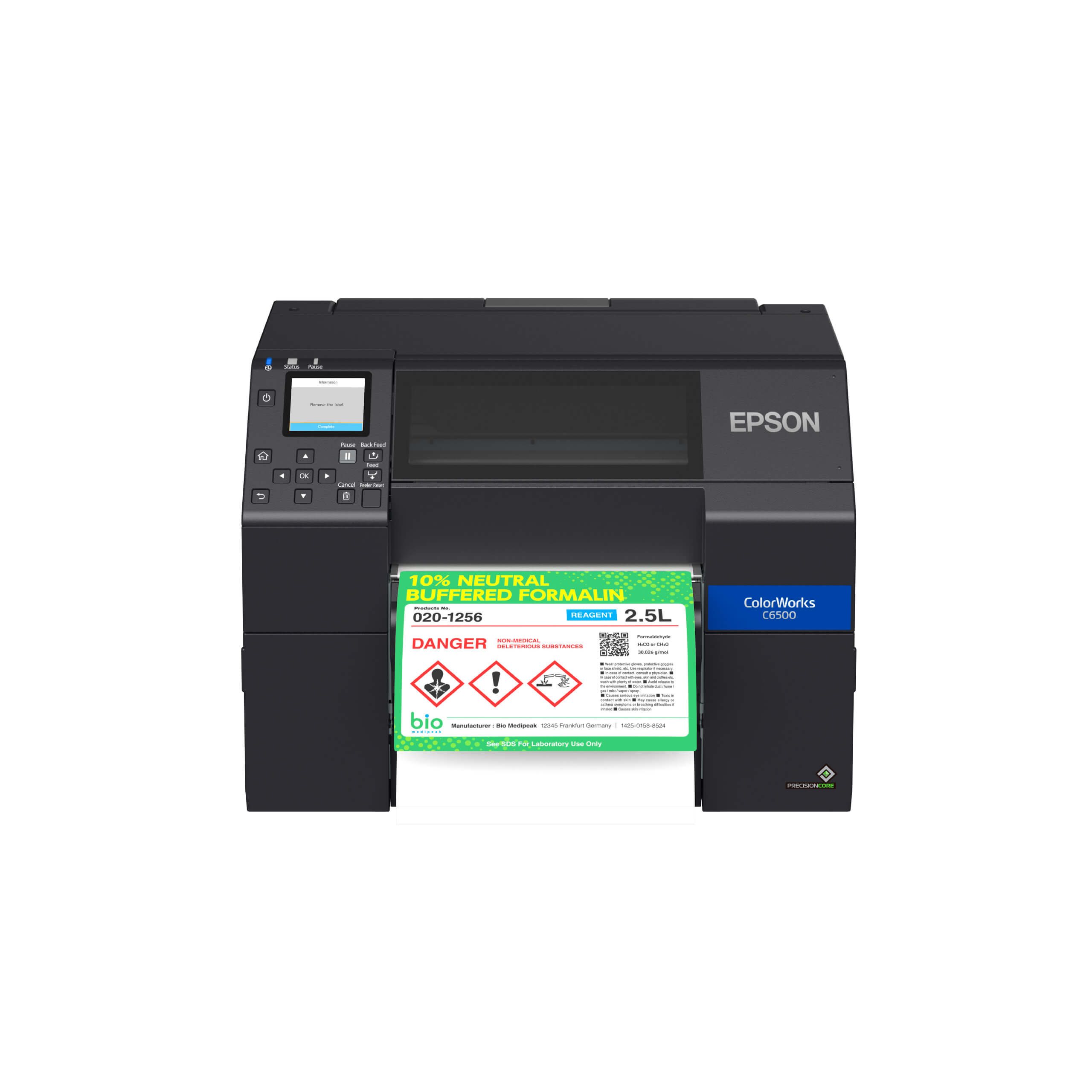

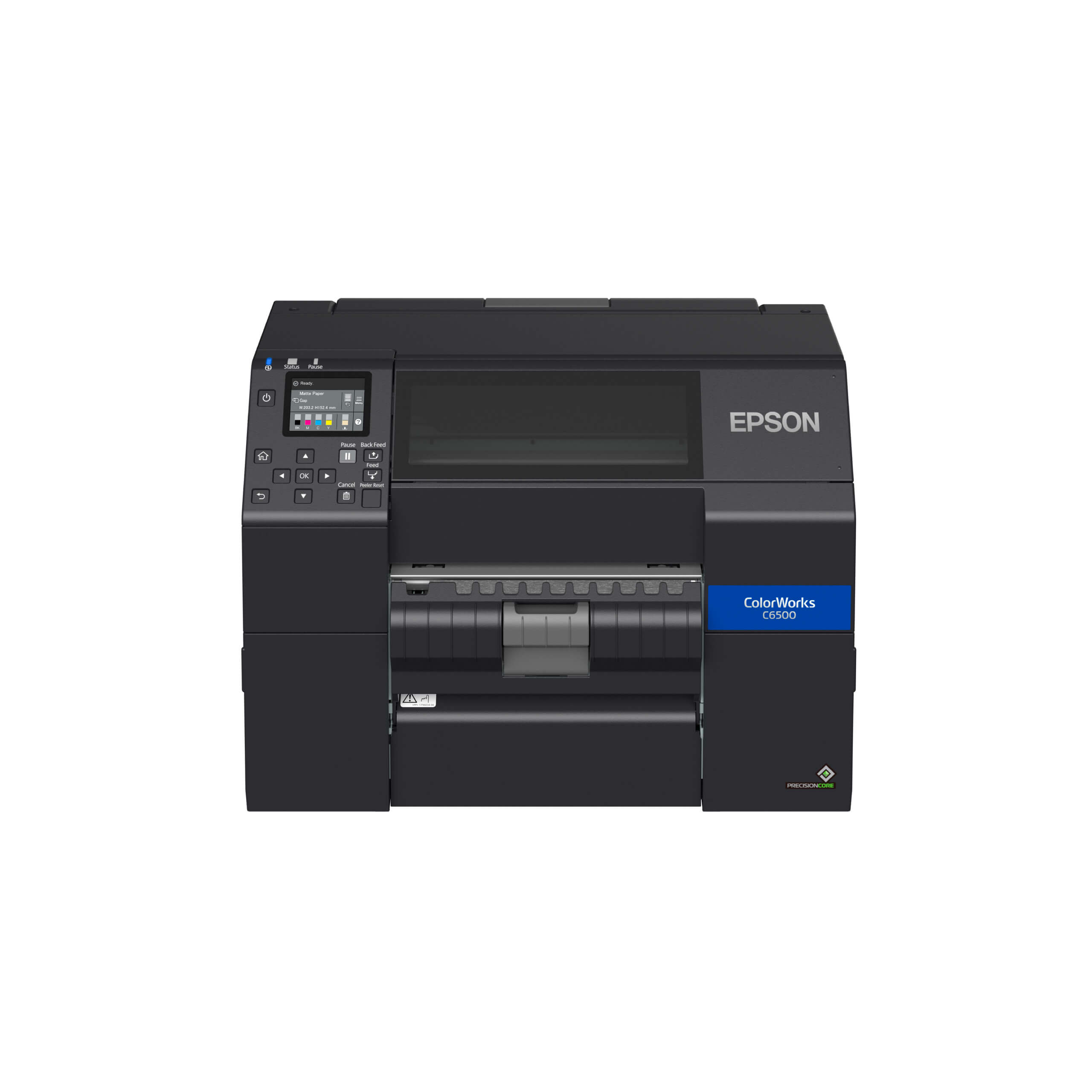

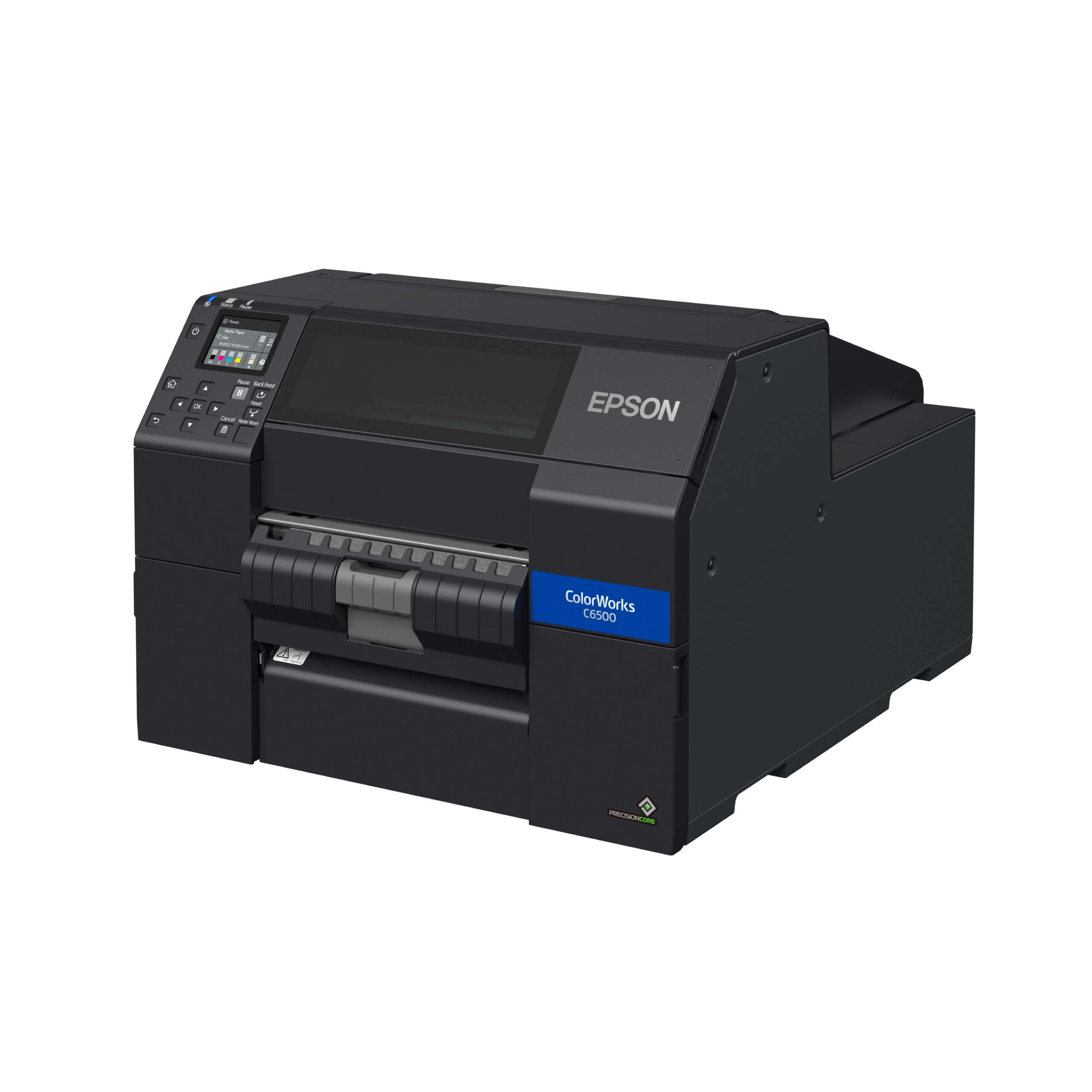

Epson ColorWorks CW-C6500P Gloss Color Inkjet Label Printer with Peel and Present SKU: C31CH77A9971
Quality 8″ color label print and peel at a price comparable to thermal transfer.
The first printer designed explicitly as a color upgrade to black-and-white thermal transfer printers1, the ColorWorks CW-C6500P Gloss inkjet printer delivers on-demand, 8” color labels at a comparable price2. Engineered for mission-critical applications, this reliable printer speeds through labels at up to 5” per second3. Featuring up to 1200 dpi resolution, the CW-C6500P Gloss produces crisp images comparable to pre-printed labels. Compatible with ZPL II, SAP®, and more, and built to accommodate remote printer management, this versatile printer offers seamless integration with your existing workflow. The first color inkjet label printer to deliver a peel-and-present option4, it’s ideal for fast, print-and-apply applications.
- Model: C31CH77201 SKU: C31CH77A9971 (CW-C6500P Gloss)
- Reliability you can count on — engineered by Epson for demanding applications; backed by industry-leading service and support
- First printer specifically designed as a color upgrade to black-and-white thermal transfer printers1 — with similar media handling capabilities, speed, features and connectivity options, all at a comparable price point
- Enhanced productivity — eliminate the need to pre-print; speeds up to 5″ per second3; fast time to first label
- Astounding image quality — up to 1200 dpi resolution with various droplet sizes; crisp images comparable to pre-printed labels
- Seamless integration — compatible with ZPL II, major middleware, SAP, Windows®, Mac® and Linux
- Remote printer management — for managing large fleets over the network
- The first color label printer with a peel-and-present option4 — Ideal for fast, on-demand print-and-apply applications
- Applicator I/O control port for truly automated workflow — supports I/O commands; can be integrated into nearly any workflow
- Low cost — comparable to existing thermal transfer printers2
- Durable, high-quality labels — meets BS 5609 certification5

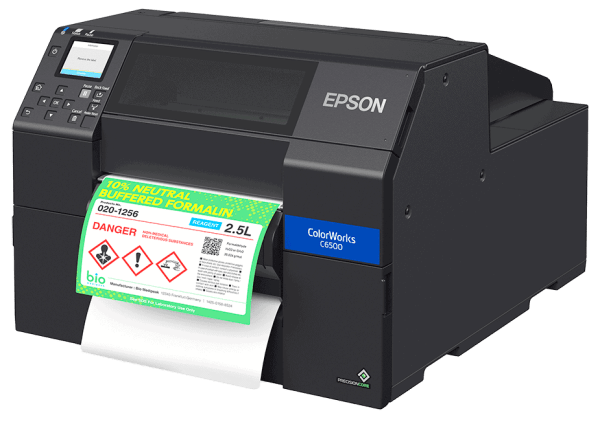

Epson offers the first color inkjet printer with peel-and-present capability, which can help speed up the manual application of on-demand labels. An integrated label-taking sensor holds off subsequent printing until the previous label is removed. This feature is ideally suited for fully automated label application systems. This unique capability eliminates the need for a loose loop and allows individual labels to be used as soon as they are printed.
Epson-engineered PrecisionCore® TFP® printhead technology delivers ultra-sharp text and precise barcodes. It also produces varying droplet sizes that, coupled with a 1200 x 1200 dpi resolution, can create a vast gamut of vibrant, accurate colors, smooth gradations, and fine image details. So, whether the challenge is to produce complex informational labels or high-quality product labels, the CW-C6000 series family is up to the challenge.
ESC/Label and ZPL II Interface Languages
ZPL II capabilities allow you to experience the advantages of Epson inkjet technology without reprogramming existing systems. ESC/Label command extensions programmed into the printer or added to the print stream to unlock the power of color. Leverage color for color-coded fields, product pictures, logos, and marketing messages to improve overall business processes and brand image.
Remote Management Tools
Epson made the CW-C6000 series family for large-scale enterprise environments. To support these high-volume scenarios, a wide range of remote management tools are available. These tools allow IT and support teams to monitor large fleets of printers remotely, generate email alerts on items needing attention, remotely deploy firmware updates, set up complex network environments, and view or modify settings from any computer browser or Android™ or Apple® powered smartphone.
General-purpose I/O Port
All CW-C6000 series family printers, designed for mission-critical production environments, come equipped with a general-purpose IO port. The IO port gives automation developers all the control they need to integrate the printer seamlessly into their automated workflow. The port provides all the necessary information on supply levels, status, faults, and readiness. Inputs enable users to pause, clean, and print.
What’s In The Box:
- ColorWorks CW-C6500P Gloss printer
- AC power cord
- CW-C6500P Gloss Full-capacity ink cartridges
- Maintenance box
- Instruction sheet
- CD with utilities and manuals
|Print Method:||Serial inkjet PrecisionCore TFP|
|Inks:||UltraChrome® DL pigment ink SJIC35P-C Ink Cartridge (Cyan) SJIC35P-M Ink Cartridge (Magenta) SJIC35P-Y Ink Cartridge (Yellow) SJIC35P(BK)-K Ink Cartridge (Black)|
|Print Resolution:||Up to 1,200 x 1,200 dpi|
|Print Speed:||Up to 5-inch per Second|
|Print Width:||8.34" (212 mm)|
|Media Types:||Inkjet Coated Matte Paper, Gloss Paper, High-gloss Synthetic, Fine Paper, PET Film, Matte Synthetic, Uncoated Plain Paper|
|Media Width:||1.0" (25 mm) - 8.5" (216 mm)|
|Media Length:||Max. 24" (610 mm) Min. 0.31" (8 mm) no finishing 0.50" (13 mm) peeling 0.59" (15 mm) cutting|
|Thickness:||.005" – .009" (0.129 mm – 0.236 mm)|
|Maximum Roll Diameter:||6.0" (153 mm)|
|Core Diameter:||3" (76 mm)|
|Media Sensors:||Gap, black mark Gap Sensor Location: Adjustable 0.4" – 2.4" (10 mm – 60 mm) in 0.2" (5 mm) steps from left paper guide Black Mark Sensor Location: Fixed at 0.5" (12 mm) from left paper guide|
|Die-Cut Label Gap:||2 mm – 6 mm|
|Black mark:||Min. 0.72" x 0.16" (18 mm x 4 mm) (W x H)|
|Cutter/sheeter:||Cutter Life (cuts): Paper Liner up to 1.5 M Synthetic Liner up to 0.5 M Continuous Matte Paper up to 0.5 M Continuous Gloss Paper up to 0.3 M Continuous Synthetic up to 0.1 M|
|Interfaces:||Ethernet 1000BASE-T/100BASETX/ 10BASE-T USB 2.0|
|Operating System:||Windows 10, 8.1, 8, 7 SP1, Windows Vista® SP2, macOS® 10.6.8 or later, Linux|
|Barcode Font:||UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBarOmnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded|
|2-D Code Printing:||PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code|
|Operating Temperature:||5 to 35 °C/20 – 80% RH humidity|
|Storage Temperature:||-20 to 60 °C/5 – 85% RH humidity|
|Overall Dimensions:||Printer (W x D x H): 17.5" x 20.9" x 12.8" (444 mm x 530 mm x 326 mm) Shipping (W x D x H): 24" x 28" x 19" (610 mm x 710 mm x 480 mm)|
|Weight:||Printer (Dry): 57.3 lb (26.0 kg) Shipping: 81.6 lb (37.0 kg)|
|Rated Voltage:||AC 100 – 240 VAC|
|Rated Frequency:||50 – 60 Hz|
|Warranty:||1-year depot repair|
