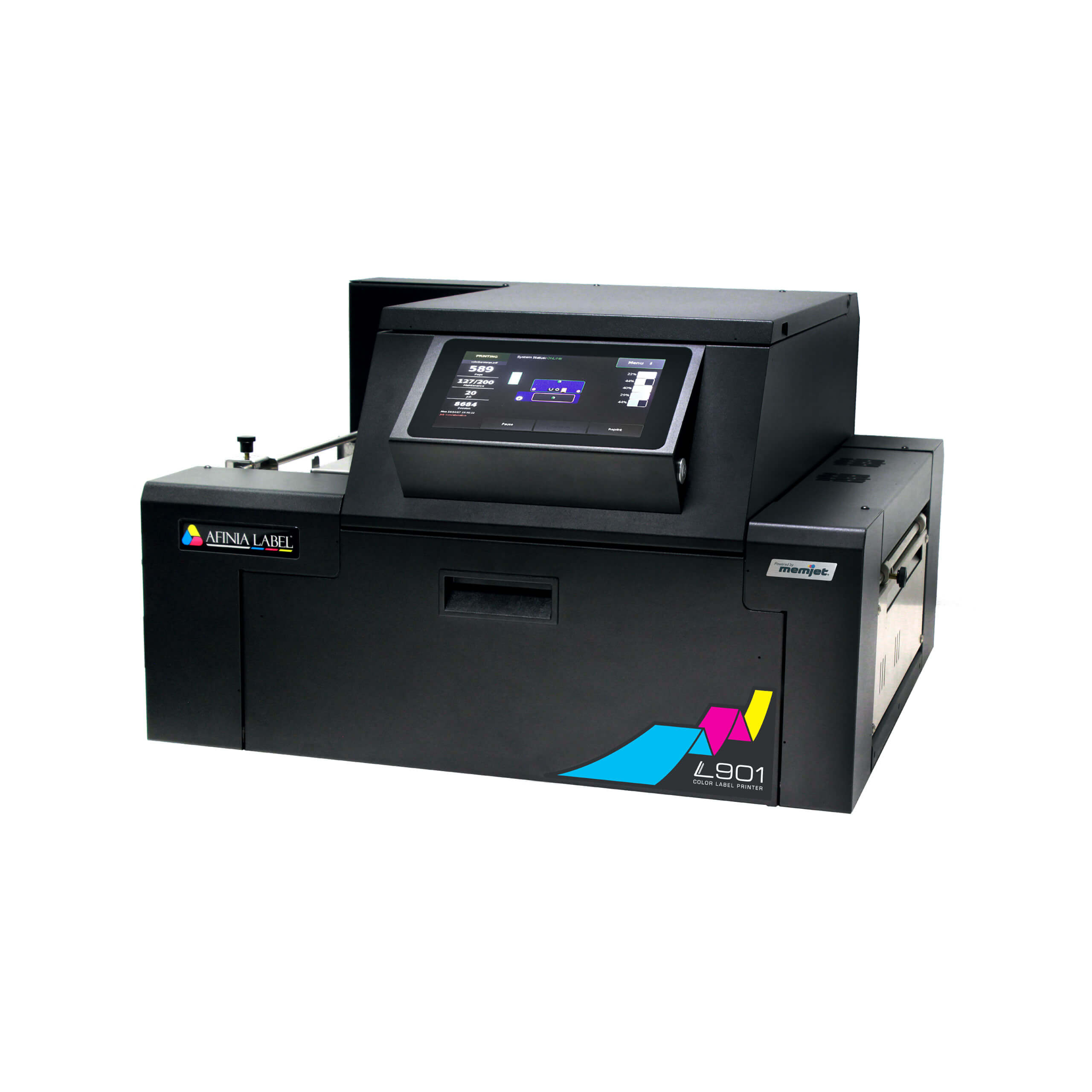

Afinia L901 Inline Industrial Color Label Printer
Powerful in both roll-to-roll and inline applications
Integrates directly with label finishers, applicators, dispensers, and more
The Afinia L901 Industrial Inline color label printer combines industrial design, exceptional image quality, and high production speeds with a new ability to service and maintain the printhead “on-the-fly.” This makes the L901 perfect for long roll-to-roll print jobs or inline integration with label finishers, applicators, dispensers.
Produce vibrant, full-color prints in high resolution. Large print volumes are now more economical, with five high-capacity 250ml CMYKK ink cartridges delivering an ultra-low-cost per label.
Roll-to-Roll Label Printing

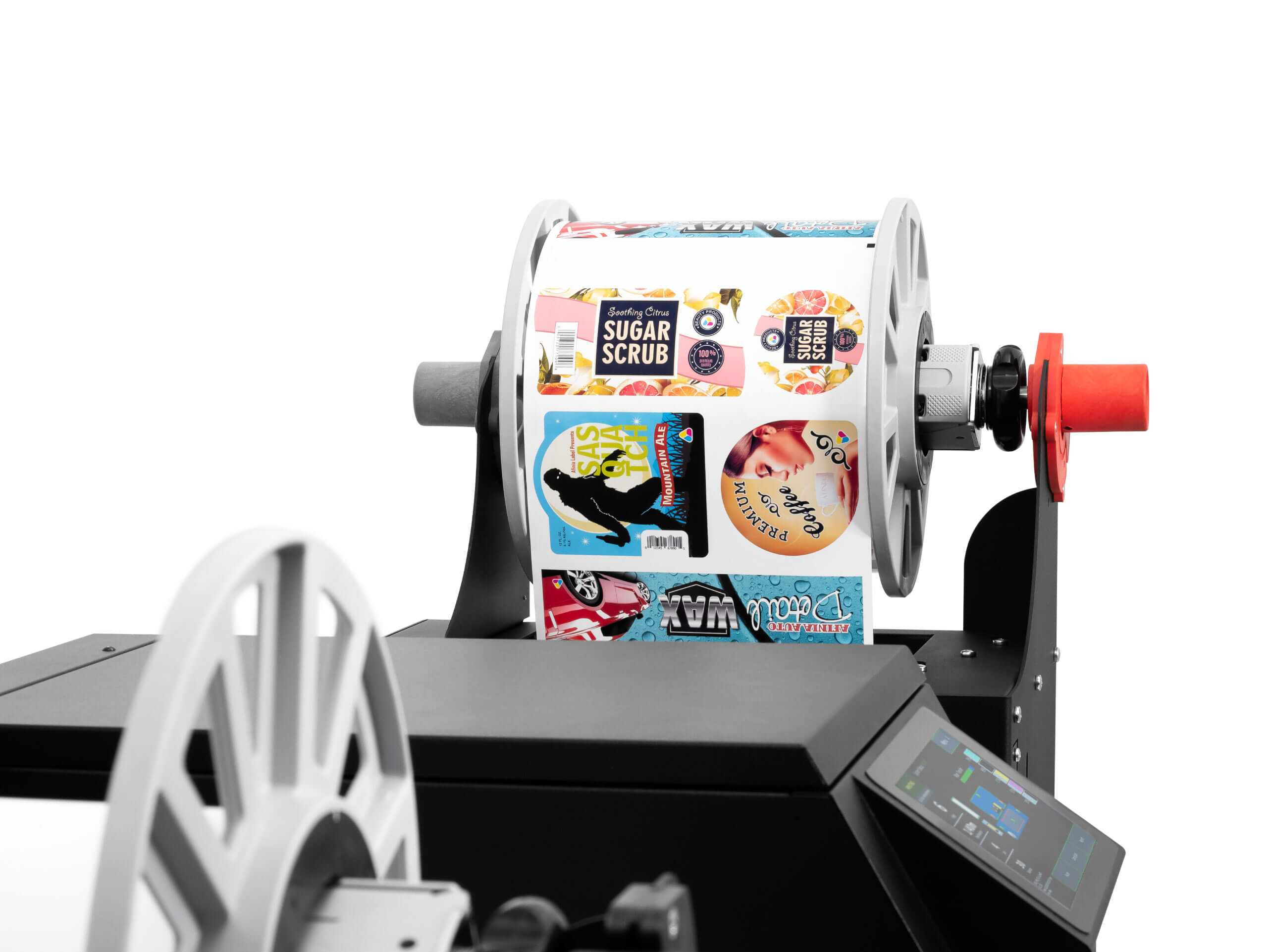

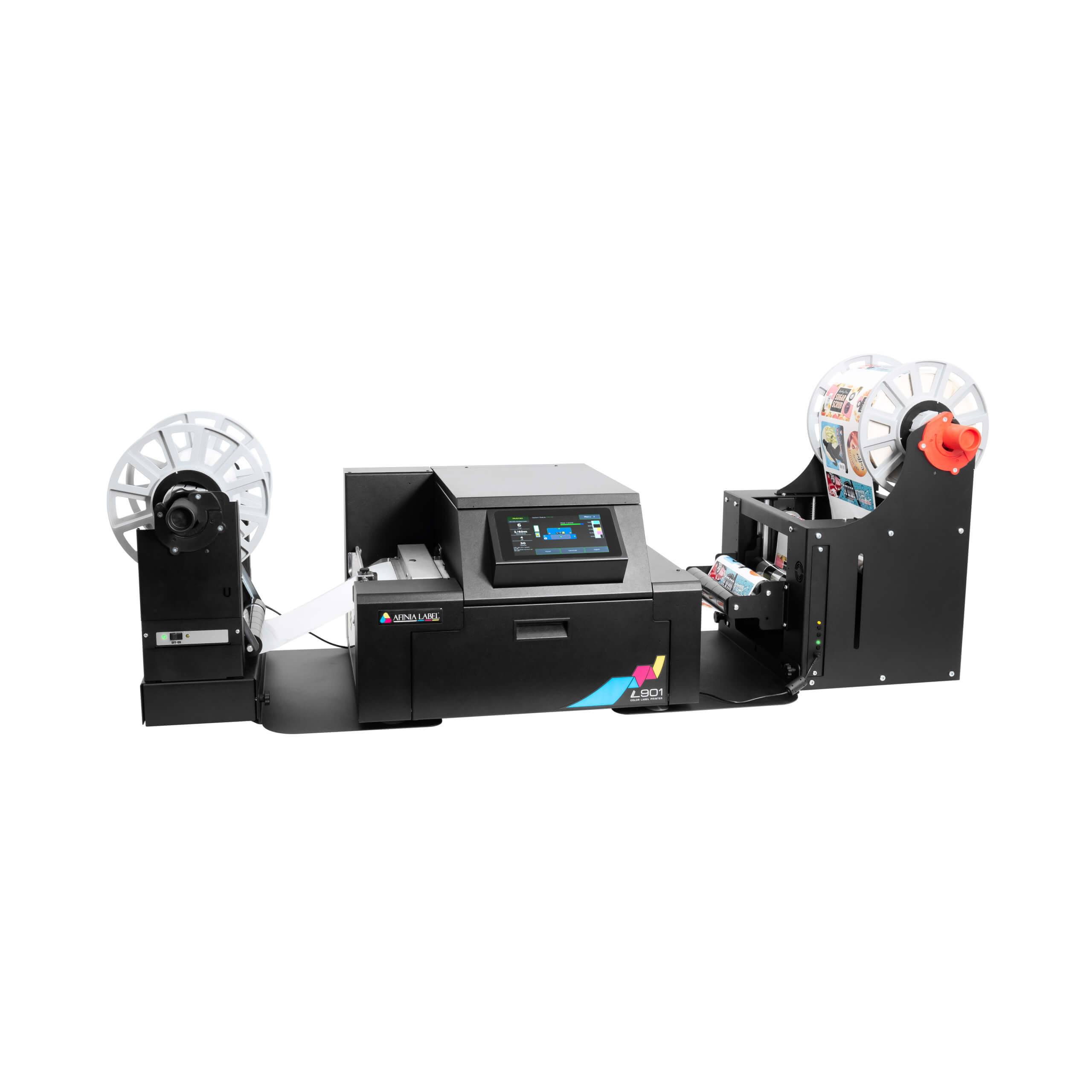

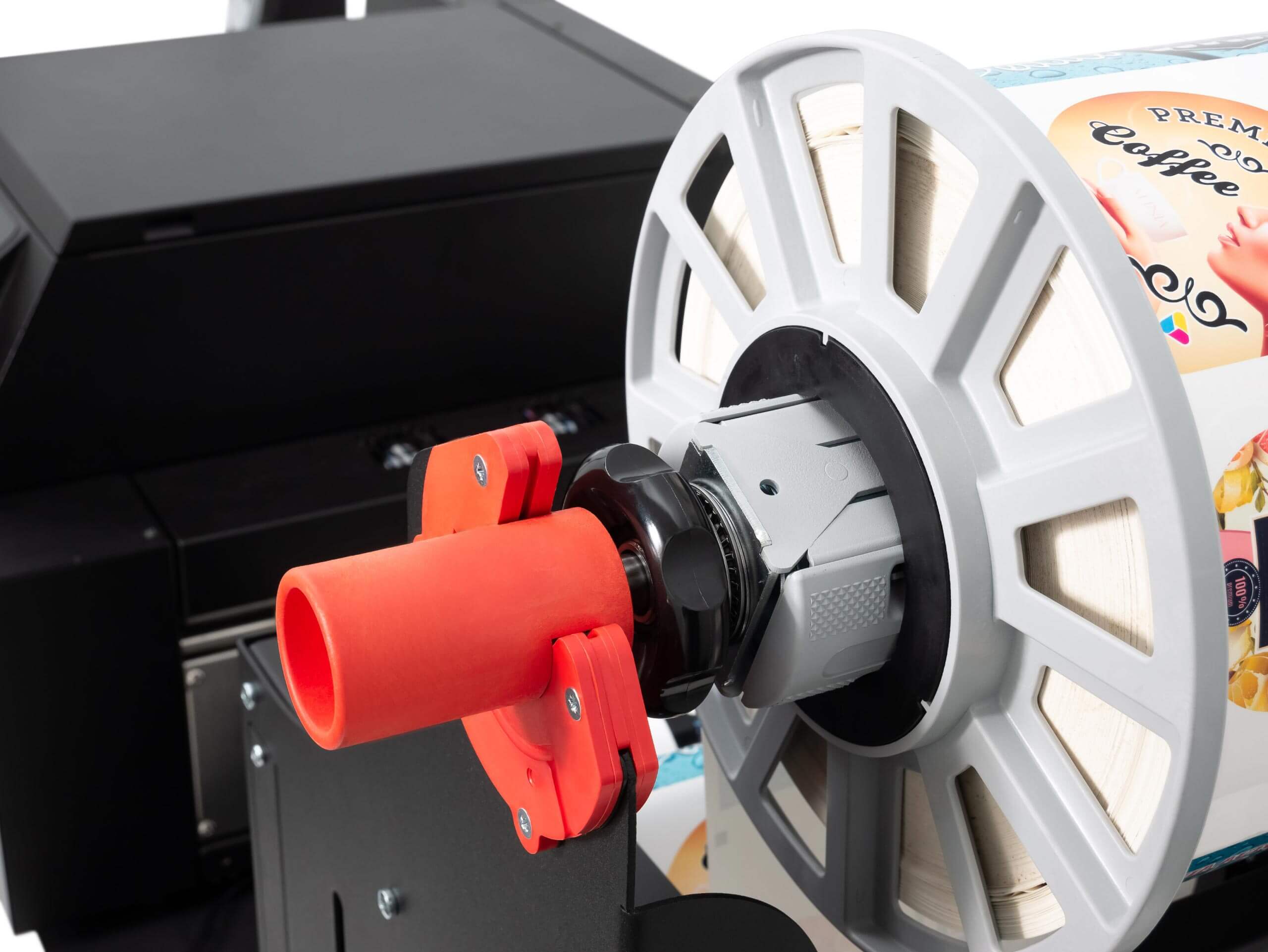

The XL Unwinder/Rewinder system pairs perfectly with the L901 to allow for continuous, roll-to-roll label production. Easily handle rolls up to 12″ in diameter outside diameter for high-volume jobs and reduced media costs.
Designed for Inline Applications
The L901’s Memjet VersaPass printhead technology allows for on-the-fly maintenance, which makes for perfect inline integration with dispensers, applicators, label finishers and high-volume digital label press configurations.
Ultra-low Ink Cost
Five high-capacity ink cartridges (CMYKK) offer extremely low ink cost per print, a top factor in assessing cost of ownership while choosing a printer.
High Speed & High Resolution
A stationary printhead offers blazing fast print speeds of up to 60 inches (18m) per minute. Keep up with most high-volume jobs, whether in a continuous roll-to-roll setup or inline with a digital press.
|Print Method:||Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip)|
|Inks:||Dye-based, 250mL CMYKK cartridges (1.25L total)|
|Print Resolution:||1600×1600 dpi to 1600×800 dpi|
|Print Speed:||6" or 12" per second (152mm or 305mm)|
|Print Width:||8.5" (216mm)|
|Media Types:||Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks|
|Media Width:||2"–9" (50.8mm–229mm)|
|Media Length:||2"–40" (50.8mm–1016mm)|
|Thickness:||0.005"-0.01" (0.13mm–0.3mm) including liner|
|Maximum Roll Diameter:||10" (250mm) with XL Unwinder/Rewinder System|
|Core Diameter:||Requires 3" (76.2mm) cardboard core|
|Media Sensors:||Gap (movable), continuous, black mark|
|Die-Cut Label Gap:||Minimum 0.125" (3.0mm) Maximum 0.3" (8.0mm)|
|Black mark:||3mm wide, 25.4mm long, Left side position|
|Interfaces:||USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control|
|Operating System:||Windows 7+ (32 and 64 bit)|
|Barcode Font:||1D Barcode at least Grade B (Code39) with 10mils bar width|
|2-D Code Printing:||2D Barcode at least Grade B (PDF417) with 10mils cell size|
|Operating Temperature:||15°–35°C (59°–95°F) at RH 20–80%|
|Storage Temperature:||-5°–50°C (23°–113°F) at RH up to 85%, non-condensing at 65°|
|Overall Dimensions:||18.9" (480mm) W, 19" (485mm) D, 21.1" (535mm) H|
|Weight:||85 lbs. (38.5kg)|
|Rated Voltage:||AC 110V – 220V, auto-sensing|
