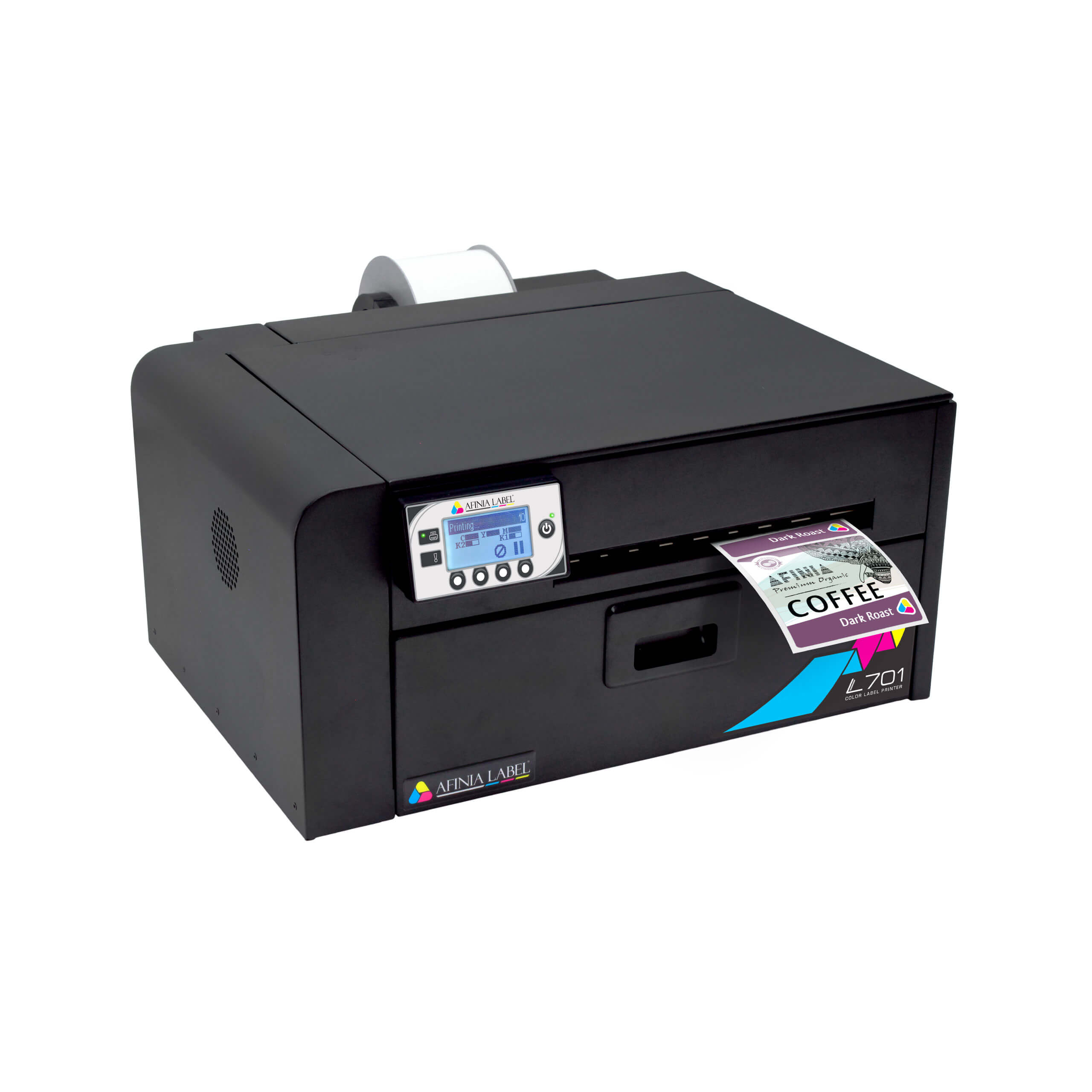

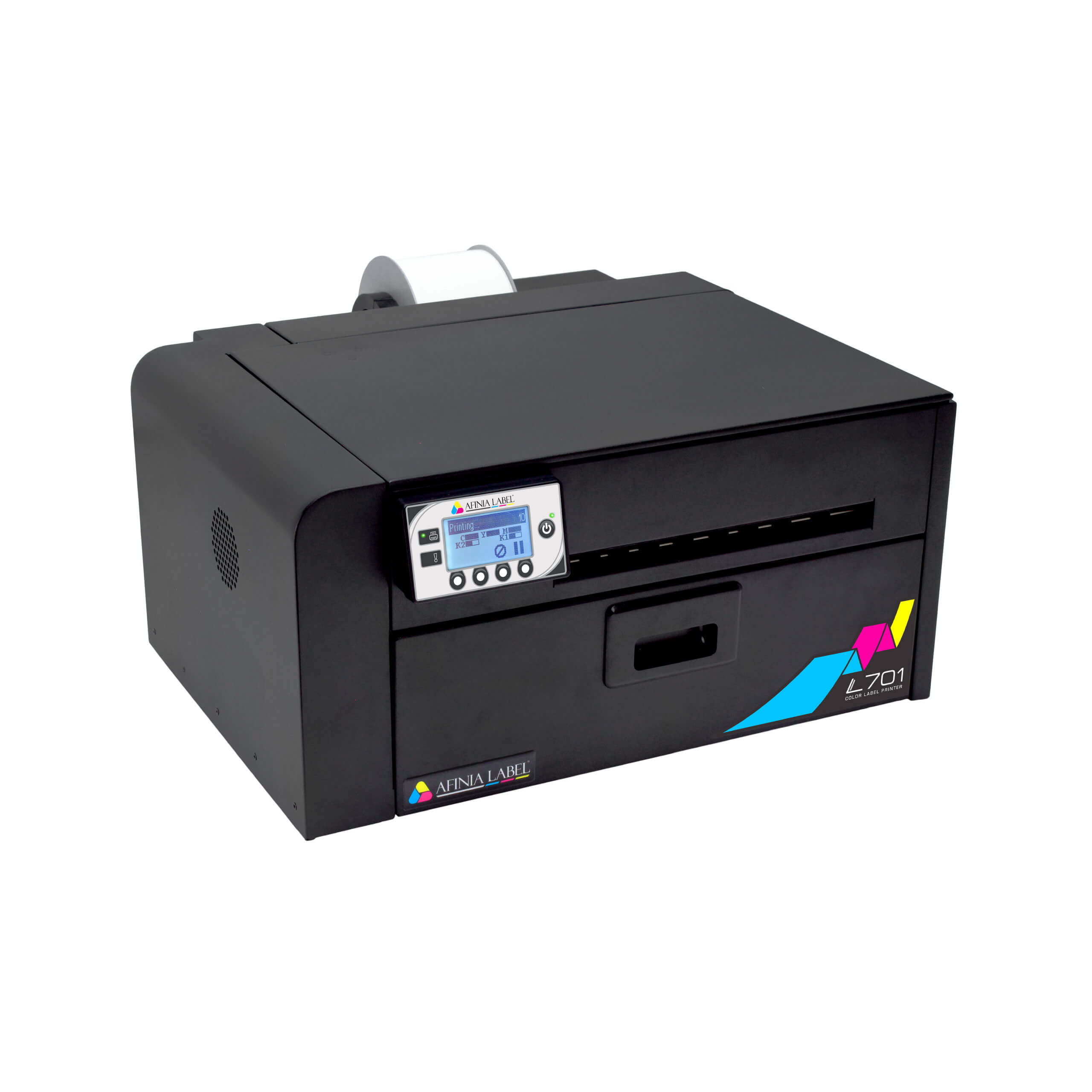

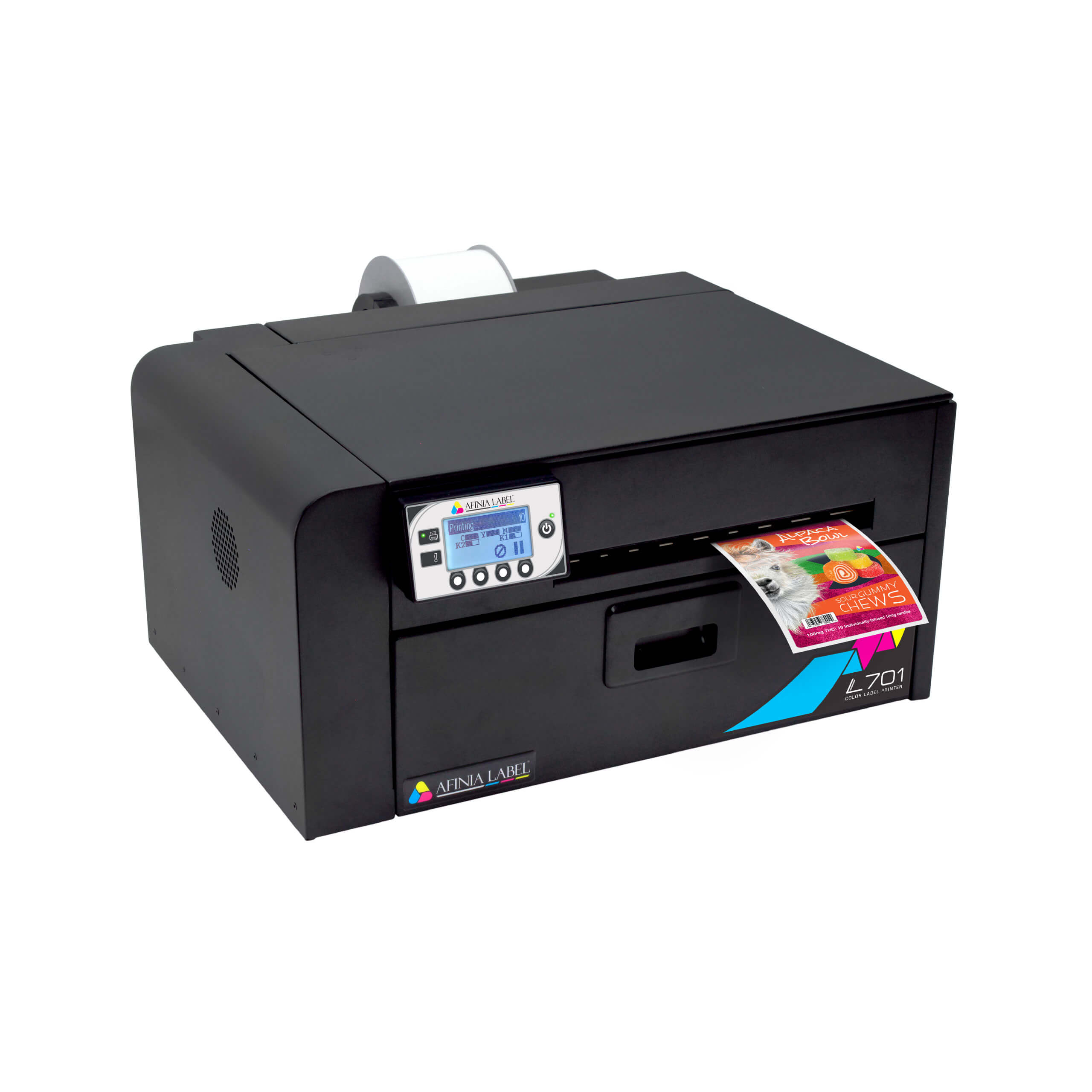

Afinia L701 Digital Color Label Printer Fan Fold Video
Powered Unwinder Sold Separately #30762 (see below)
Affordability without compromise
The Afinia L701 Color Label Printer—our lowest initial cost offering with Memjet technology—allows you to print high-impact, full-color labels without breaking the bank. The L701 is an excellent fit for multiple-printer installations or applications where high performance, low initial investment, and a smaller footprint are required.
The intuitive L701 is an excellent option for small- to mid-sized companies looking to print their full-color labels in house. The Memjet-powered stationary printhead provides speed, industrial reliability, and stunning image quality. Five large (150ml CYMKK) ink cartridges offer low label costs and high return on investment, making the L701 ideal for short- to medium-range print runs for retail, inventory, and product identification applications.
- Mid-volume printing
- Medium-fast print speeds (≤ 8 IPS)
- Low ink costs
- Lowest initial cost Memjet printer
High Quality & Resolution
Get all the benefits of Memjet in a consolidated form factor. Memjet’s stationary “waterfall” printhead technology allows for blank label material to move quickly through the printer while maintaining excellent print resolution. Print at up to 1600 x 1600 dpi for vivid, eye-catching labels. Using CMYKK, the L701 offers exceptional color and rich blacks, giving you the ability to print with excellent contrast.

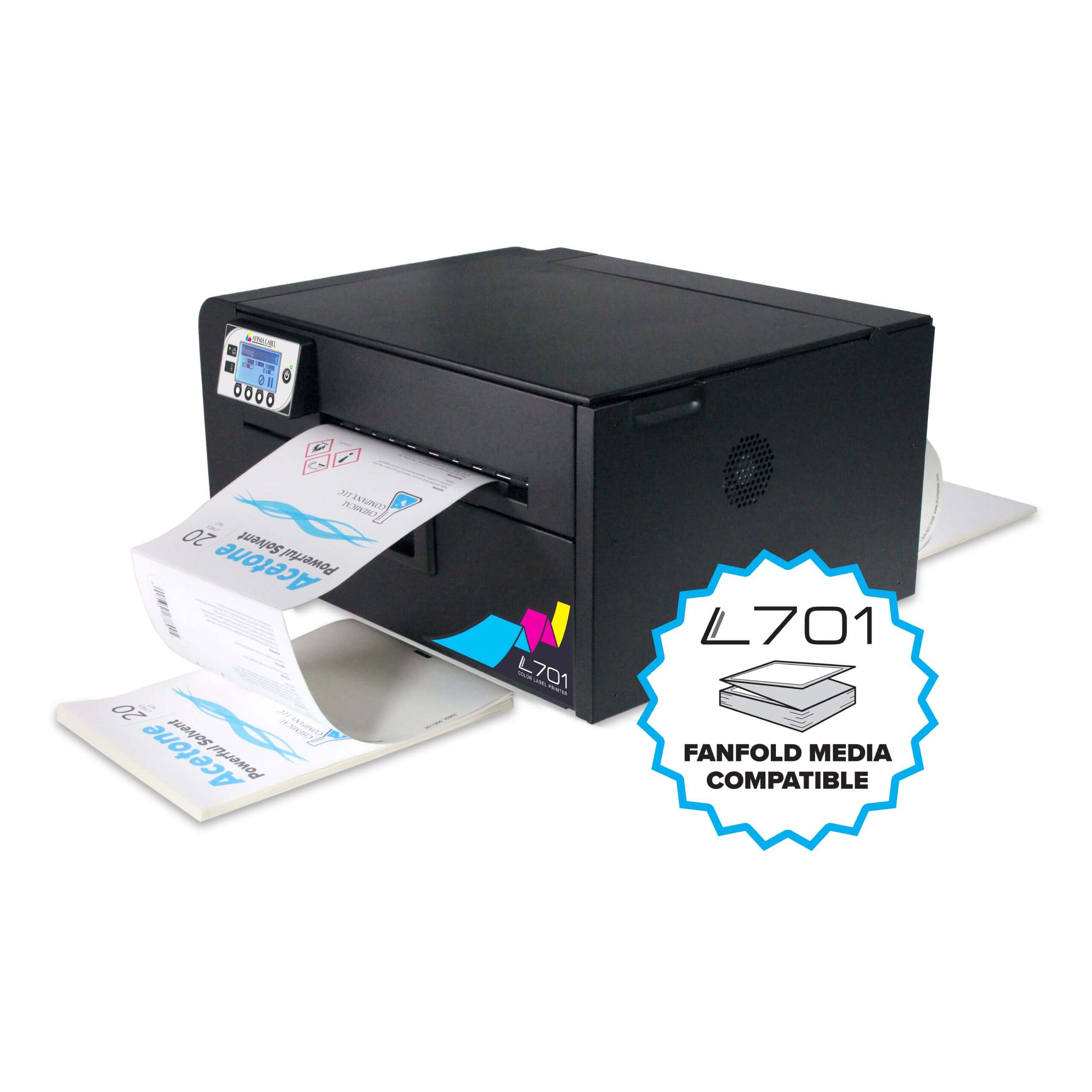

Fanfold Media Support
The L701 is perfect for use with fanfold media. Place a stack or box of TCS Digital fanfold labels behind the printer, feed it, and print. As the first few labels fall into place, a neat stack of finished labels forms.
Low Label Costs
The Afinia Label L701 holds five large 150mL ink cartridges to support mid to long runs while reducing per-label costs. You can send us your artwork to see how much you can save or see how the L701 has a great return on investment.
|Print Method:||Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip)|
|Inks:||Dye-based, 150mL CMYKK cartridges (750mL total) — Watershield water-resistant formula available|
|Print Resolution:||1600×1600 dpi or 1600×800 dpi|
|Print Speed:||6"–8" per second (152mm–203mm)|
|Print Width:||8.5" (216mm)|
|Media Types:||Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks|
|Media Width:||2"–8.5" (50.8mm–216mm)|
|Media Length:||2"–40" (50.8mm–1016mm)|
|Thickness:||Minimum 0.005" (0.13mm) Maximum 0.01" (0.3mm, including liner)|
|Maximum Roll Diameter:||6" (152mm)|
|Core Diameter:||Requires 3" (76.2mm) cardboard core|
|Media Sensors:||Gap, continuous, black mark|
|Die-Cut Label Gap:||Minimum 0.125" (3.0mm) Maximum 0.3" (8.0mm)|
|Black mark:||3mm wide, 25.4mm long, Left side position|
|Interfaces:||USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control|
|Operating System:||Windows 7+ (32 and 64 bit)|
|Barcode Font:||1D Barcode at least Grade B (Code39) with 10mils bar width|
|2-D Code Printing:||2D Barcode at least Grade B (PDF417) with 10mils cell size|
|Operating Temperature:||15°–35° C (59°–95°F) at RH 20–80%|
|Storage Temperature:||-5°–50° C (23°–113°F) at RH up to 85%, non-condensing at 65°|
|Overall Dimensions:||With unwinder: 549mm (21.6") W, 679mm (21.6") D, 285mm (11.2") H Printer only: 510mm (20.1") W, 385mm (15.2") D, 285mm (11.2") H|
|Rated Voltage:||AC 110V – 220V|
