Afinia Label LT5C Digital LED Toner Printer Overview - Print in CMYK + White

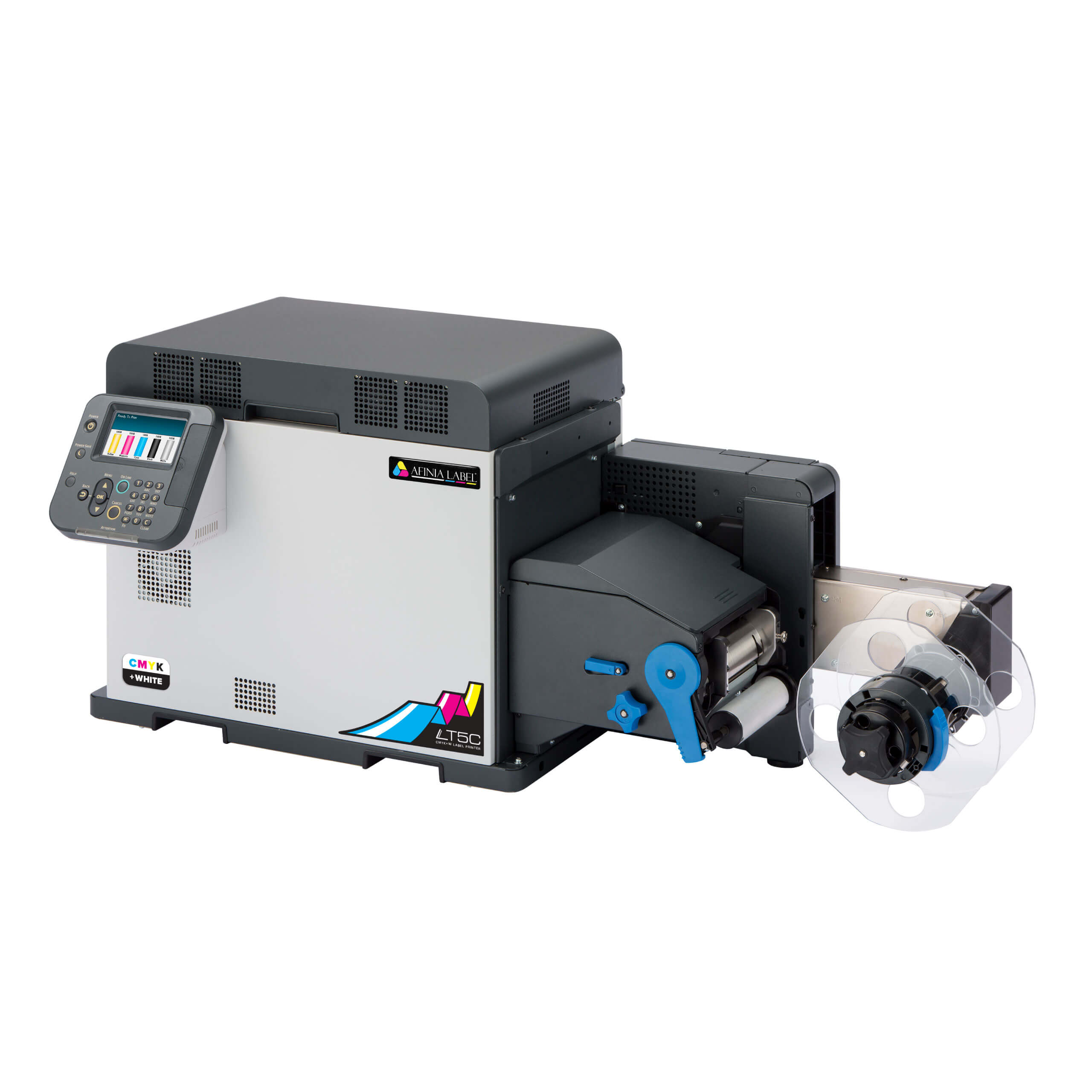

Afinia LT5C CMYK + White Label Printer
Print with white on standard or specialty media
The LT5C CMYK + white label printer offers professional five-color output for a wide variety of markets. Whether it’s high-durability labels, freezer and cold-storage labels, food and beverages, or household goods—the LT5C from Afinia Label can deliver that and more.
*Print with white
*Works with foils and specialty media
*LED dry toner technology
*Fully-waterproof print durability
Print in CMYK + white on a wide variety of materials to produce unique and professional labels that are waterproof and can stand up to the most demanding environments.

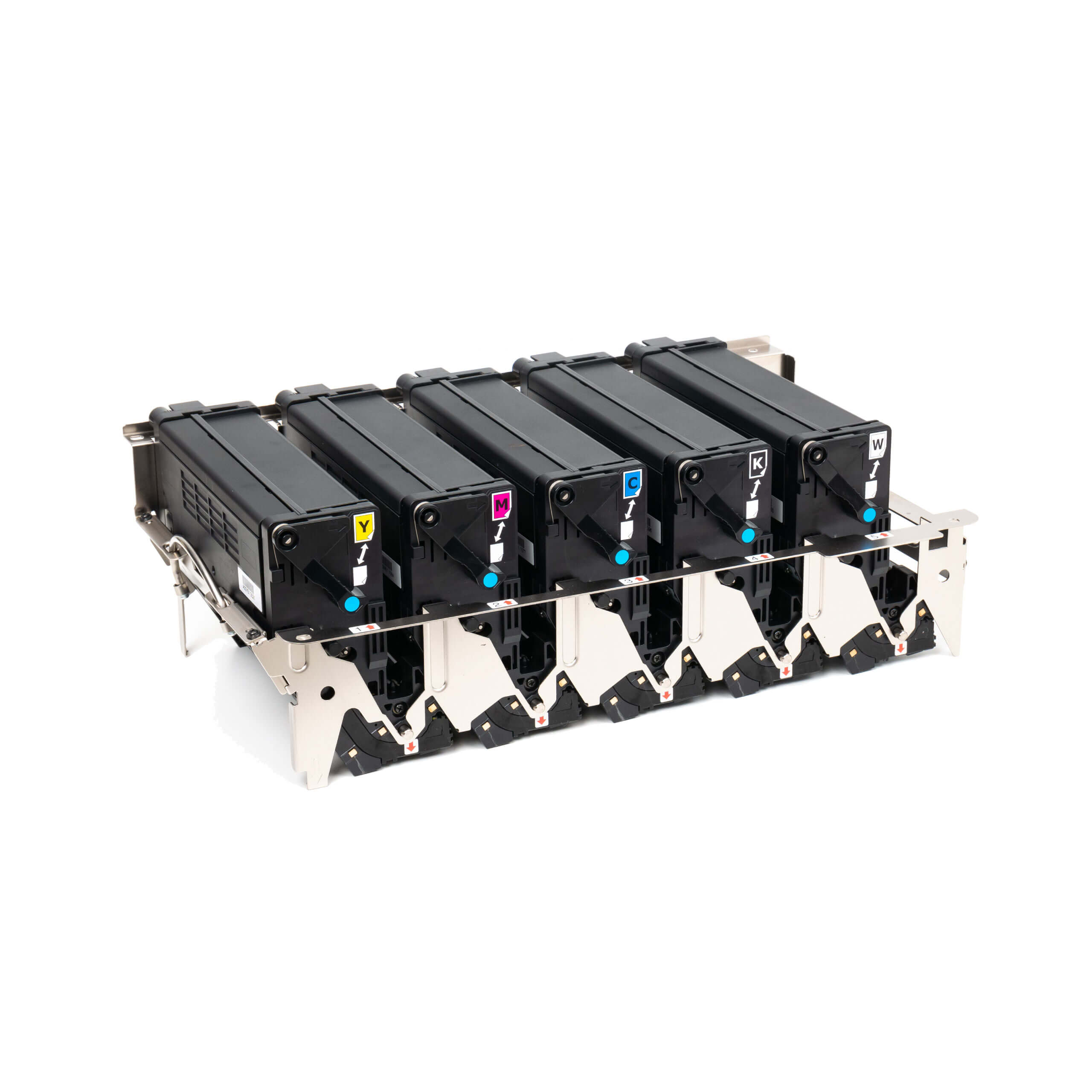

5th Station White Toner
The fifth station allows for white printing, making it easy to print brilliant designs on transparent and dark materials. This feature gives users the ability to reach a wider range of markets and applications that other label printers simply cannot serve.
Digital LED Print Technology & Substrate Capabilities
A low fusing temperature gives the LT5C unrivaled media compatibility—especially when handling heat-sensitive synthetics and films. This LED-based technology opens the door to a range of substrates that other label printers simply can’t handle. Dry toner technology gives users the ability to use uncoated and flood-coated stocks also provides further advantage for printers looking to reduce overall cost per label.

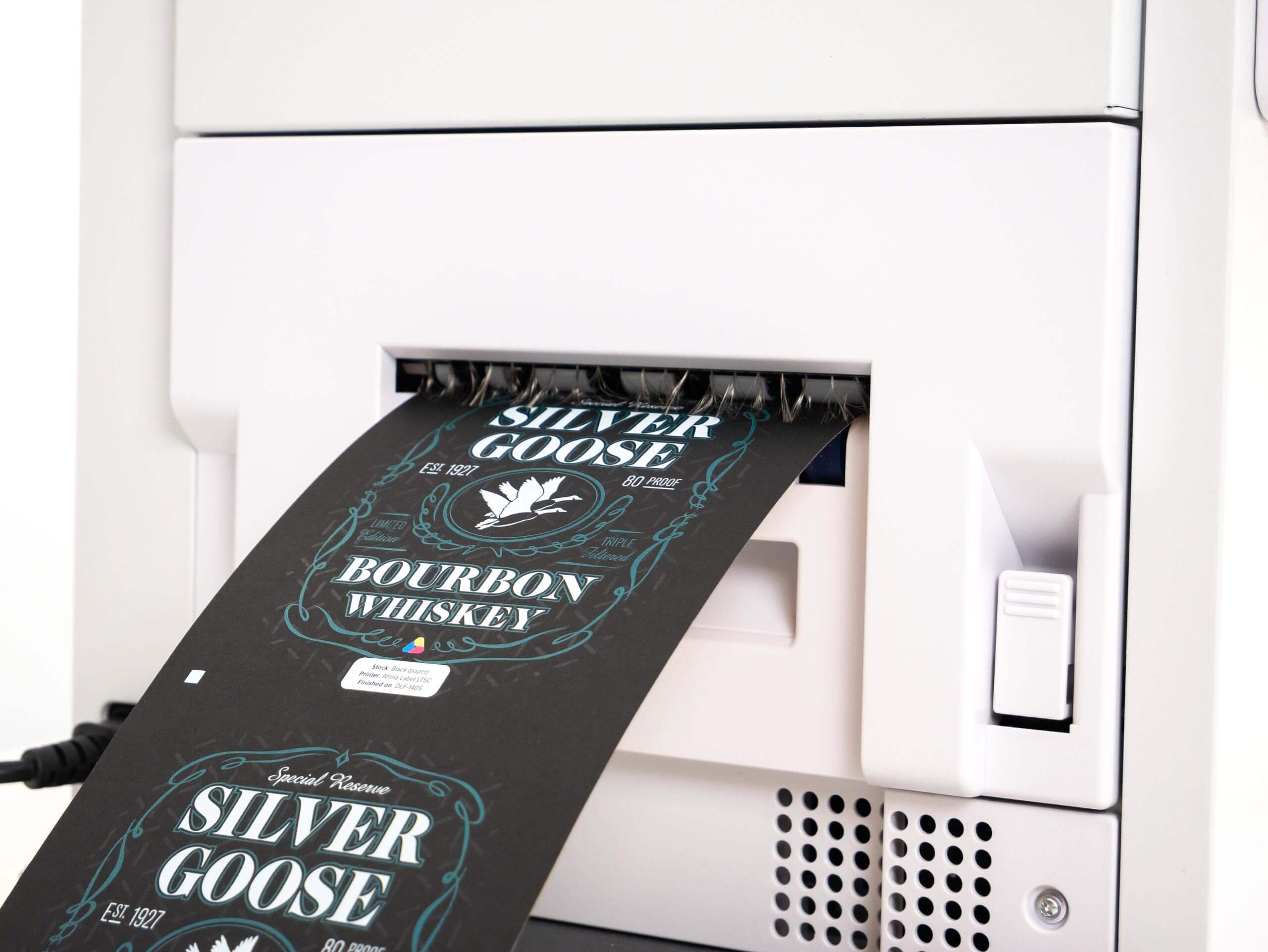

Fitting rolls ranging from 1″-5.1″ wide with a maximum outside diameter of 8″, the LT5C gives users the versatility to run a variety of label sizes. Two types of sensors are used to detect printing position, Black Mark and Gap, making it easy to run both continuous and die-cut media. The automatic cutter ensures accurate end-of-job cutting, enabling users to print one or many labels quickly and efficiently.

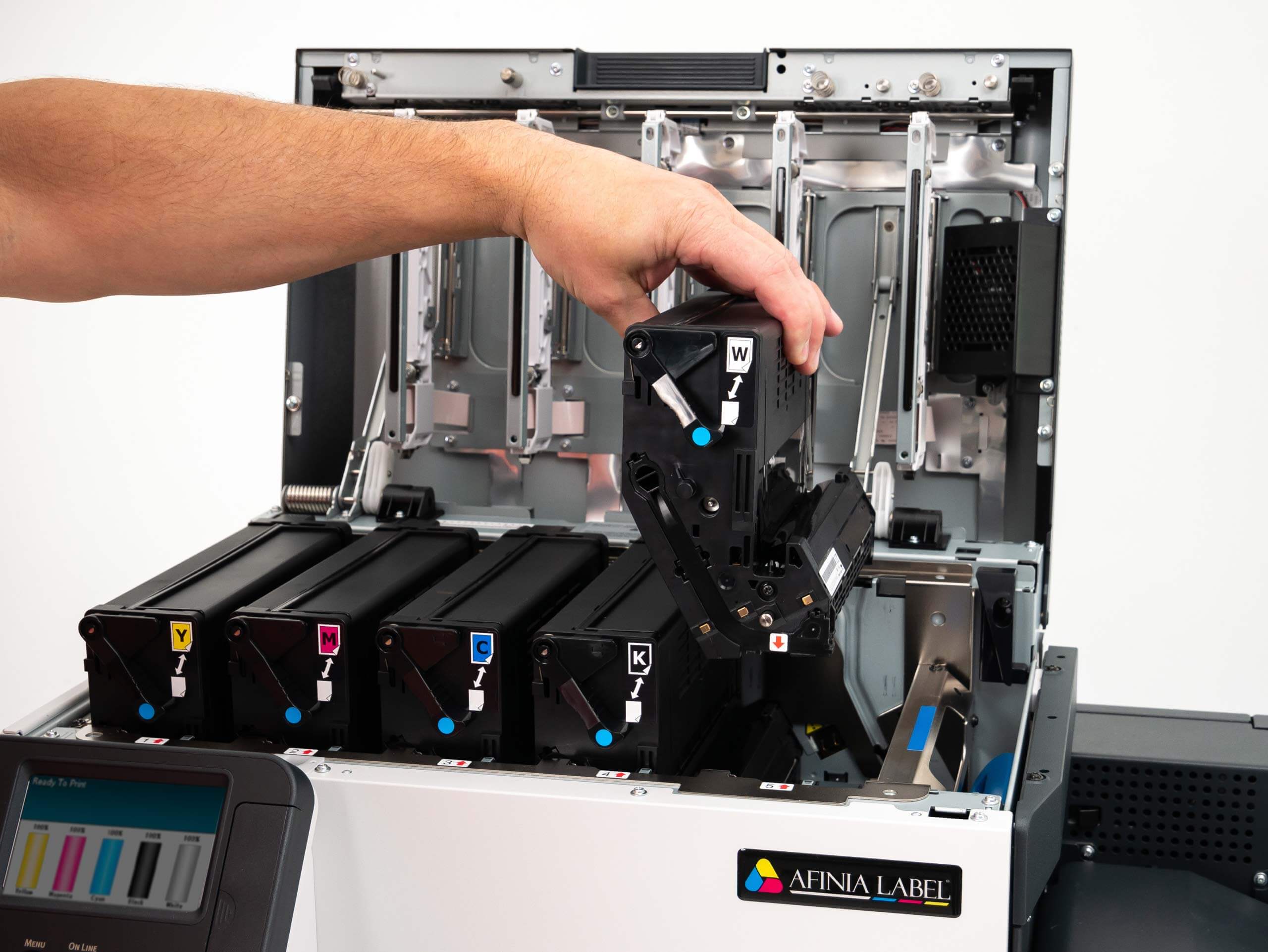

The LT5C is intuitive and simple to install, requiring minimal training or technical skills. The simple desktop configuration allows for easy consumable and parts access. Rolls of different types can quickly be exchanged, and consumables have a high capacity for extended printing. The 4.3″ LCD color display panel and paper handling guidance makes it easy to feed and print labels on demand.
The Perfect Companion
Labels printed on the LT5C can be cut to any size and shape from continuous (uncut) media on the DLF-140s Tabletop Digital Label Finisher. It’s all done digitally through a simple cut shape you place in a pdf file—no need for expensive dies or tooling, machinery, or wait times. The computer tells the machine where to cut and how many labels to produce, so short run label jobs can be completed easily and quickly. When finishing labels digitally, lamination can also be applied for aesthetic, tactile, and durability purposes.
|Print Method:||Digital 5 LED Full-color Electrophotographic Printing Method|
|Inks:||Toner, 5-color (CMYK+White) printing|
|Print Resolution:||Brilliant, high-resolution graphics (1200 x 1200 dpi and 600 x 600 dpi)|
|Print Speed:||Max. 152.4 mm/s (6ips)|
|Print Width:||Maximum print width: 4.95 inches (125.76 mm)|
|Media Types:||Plain Paper, Film, Plain Paper Label, Glossy Paper Label, Film Label, Synthetic Label|
|Media Width:||25.4 - 130.0mm|
|Media Length:||Enter Specs Here|
|Thickness:||0.076 - 0.25mm|
|Maximum Roll Diameter:||Max. Ф203.2mm (Ф8")|
|Core Diameter:||Ф76.2mm (Ф3")|
|Media Sensors:||Position-adjustable transmission gap sensor, Position-adjustable reflective black mark sensor (back of liner)|
|Die-Cut Label Gap:|
|Black mark:||Enter Specs Here|
|Cutter/sheeter:||Cuttable Media Length: Min. 101.6mm|
|Interfaces:||1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed)|
|Operating System:||Windows 10, Windows 8, Windows Server 2016 & 2012|
|Barcode Font:||Enter Specs Here|
|2-D Code Printing:||Enter Specs Here|
|Operating Temperature:||Operating: 10 - 30 °C, 20 - 70 %RH, No condensation|
|Storage Temperature:||Enter Specs Here|
|Overall Dimensions:||1,040 x 477 x 441 mm (WxDxH)|
|Weight:||Approx. 50 kg (approx 62 kg with included supplies)|
|Rated Voltage:||110-127V AC ±10% / 220-240V AC ±10%|
|Rated Frequency:||Enter Specs Here|
|TCS Part Numbers:||Enter Specs Here|
L901 Printer: 29698
Black Ink: 26730
Cyan Ink: 26723
Magenta Ink: 26716
Yellow Ink: 26709
L901 Plus (Watershield™)
L901 Plus Printer: 32344
Black Plus Ink: 30461
Cyan Plus Ink: 30454
Magenta Plus Ink: 30447
Yellow Plus Ink: 30440
|Accessories:||Enter Specs Here|
XL Unwinder/Rewinder (set): 26674
XL Unwinder: 26681
XL Rewinder: 28802
