Pigment and Dye-based Labels
Pigment-based prints are highly resistant to the challenges of moisture, abrasion, sun-fading, and extreme temperature. This makes the F502 perfect for packaging requiring GHS compliance, as well as those with high exposure to moisture, such as beverages and bath products.
The F502’s dye-based prints are high-impact, colorful, and vibrant, making them ideal for prime labeling applications, such as in retail environments.
Enjoy the durability of pigment and the vibrancy of dye inks in the same printer. The F502’s ink interchangeability offers a level of versatility never before experienced in the label printing world.
BS5609 Certified for Durable Labels
The F502 has been tested and certified to produce BS 5609-compliant and GHS (Globally Harmonized System) labels, which helps keep chemical manufacturers in compliance with packaging and transportation requirements. This testing evaluates the permanence of the print through abrasion and submersion in salt water for a period of 90 days.
The F502 is perfect for chemical drum label applications, and for those looking to replace their legacy pin-fed systems.
Built for Industrial Use

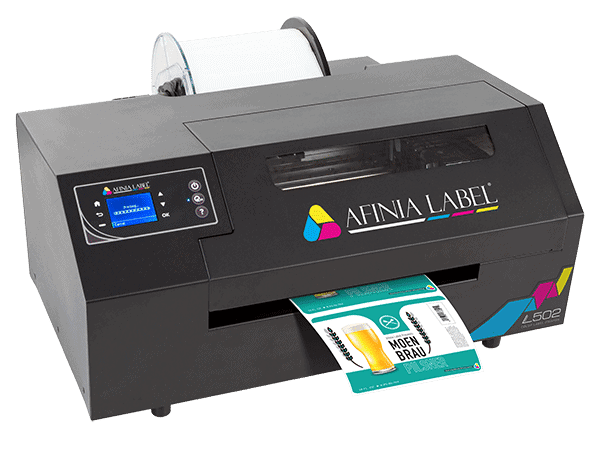

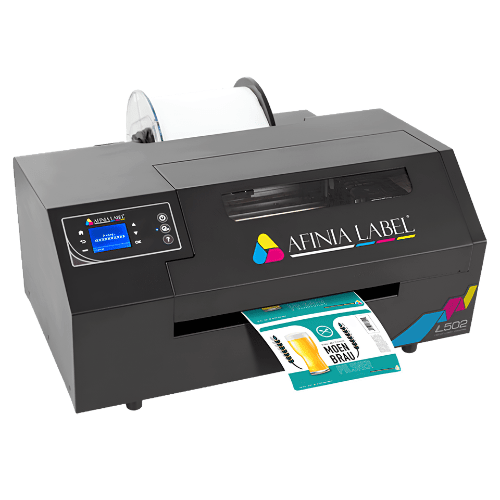

The heavy-duty construction of the F502 color label printer includes an all-steel industrial cover, with a window for print bed visibility and status monitoring. It also includes improved sensors which allow for greater compatibility with specialty media, such as reflective metallic material. In addition to the standard roll-fed model, the F502 is also available in a roll-compatible version (L502) with the same build quality and basic feature set.
Improvements extend to the F502 Color Label Printer toolbox, allowing for increased control, including ‘Pause’ and ‘Cut’ functions. Firmware upgrades can also now be more easily performed.
Versatility Meets Economy
Not only is the F502 one of the most versatile desktop fanfold label printers on the market, it offers great value for small to mid-sized label applications. Separate CMYK ink cartridges contribute to a lower cost per label, since only colors that are empty need to be replaced.
If you’re after increased variation in color label printers, explore our diverse range of Afinia printers and choose the most suitable one for your business demands. If you require further information about our Afinia F502 Fanfold Color Label Printer (Pigment Version), please contact us via our contact form, phone (762) 208-6985, or email orders@tcsdigitalsolutions.com. Our efficient team is available to assist you.
Afinia F502 Printer Options:
Printer Inks & Parts
- Afinia F502 Label Rewinder
- Afinia F502 Black Dye Ink Cartridge
- Afinia F502 Black Pigment Ink Cartridge
- Afinia F502 Cyan Dye Ink Cartridge
- Afinia F502 Cyan Pigment Ink Cartridge
- Afinia F502 Magenta Dye Ink Cartridge
- Afinia F502 Yellow Dye Ink Cartridge
- Afinia F502 Yellow Pigment Ink Cartridge
- Afinia F502 Magenta Pigment Ink Cartridge
- Afinia F502 Pigment Printhead
- Afinia F502 Printhead Cap
- Afinia F502 Maintenance Tray
- Afinia F502 Cutter Blade
- Afinia F502 Dye Printhead
- Afinia F502 Ink Absorber Aerosol
- Afinia F502 Ink Absorber Spittoon
Need Support?
- Click here to view Afinia F502 Quick Start Guide
- Click here to view Afinia F502 Operator Manual
- Click here to view Afinia F502 Driver
- Click here to view Afinia F502 MSDS Sheets
- Click here to view video on Afinia F502 Installation & Setup
- Click here to view video on Afinia F502 Operating the printer
- Click here to view video on Afinia F502 Basic Print Properties
- Click here to view video on Afinia F502 Adjust Print Position
- Click here to view video on Afinia F502 Creating Custom Page Size
- Click here to view video on Afinia F502 Accomplishing Full Bleed
- Click here to view video on Afinia F502 Toolbox Software Overview
- Click here to view video on Afinia F502 Ink Cost Calculator
- Click here to view video on Afinia F502 Switching Out Printheads
- Click here to view video on Afinia F502 Printhead Alignment
- Click here to view video on Afinia F502 Add Network Printer
- Click here to get technical support
Printer | |
Print Method: | HP Thermal Inkjet |
Inks: | Option of Dye or Pigment — Individual Cyan/Magenta/Yellow (26ml), Individual Black (78.4ml) |
Print Resolution: | Up to 4800 dpi |
Print Speed: | Artwork-dependent, Approximately 5.2 in/sec (13.2cm/sec) printing a 2.2in (56mm) wide image in normal mode |
Print Width: | 1.0"–8.5" (25.4mm–215.9mm) |
Media | |
Media Types: | Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks |
Media Width: | 1.5"–8.65" (38.1mm–219.7mm) including liner |
Media Length: | |
Thickness: | 0.004"–0.01" (0.1mm–0.3mm) |
Maximum Roll Diameter: | 10" (254 mm) |
Core Diameter: | 3" (76.2 mm) |
Media Sensors: | Gap, continuous, black mark. Auto-calibrating |
Die-Cut Label Gap: | 0.125" (3.0mm) |
Black mark: | 0.125" (3.0mm) – 0.3" (8.0mm) Height, ≤1.25" (31.75mm) Width |
General | |
Cutter/sheeter: | Powered |

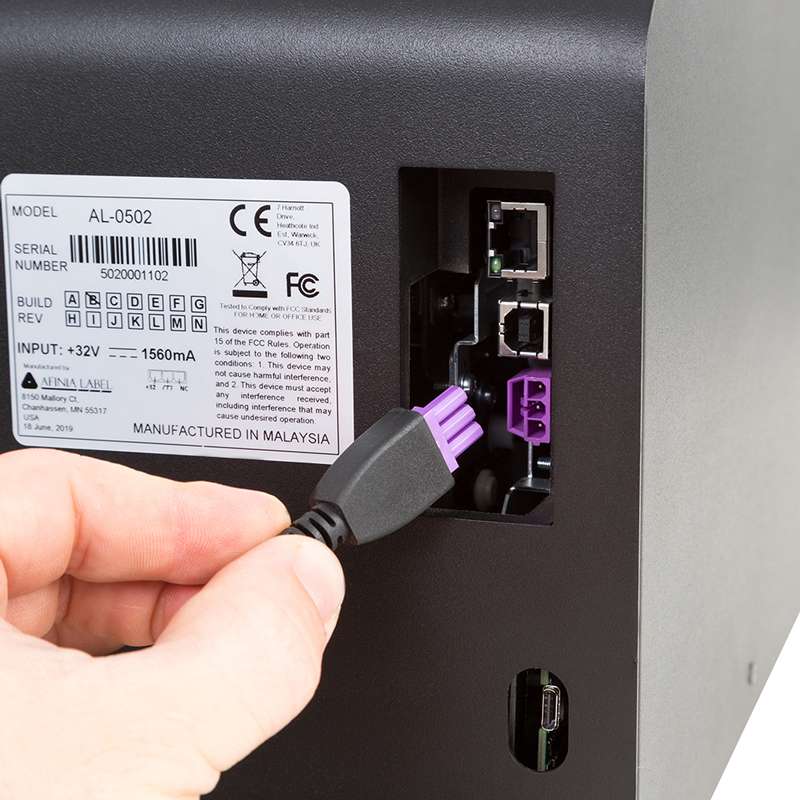

Interfaces: | USB 2.0 connection and 10/100 Base-Tx Ethernet |
Operating System: | Windows 7+ (32 and 64 bit) |
Barcode Font: | |
2-D Code Printing: | |
Operating Temperature: | 59°–90°F (15°–32°C) |
Storage Temperature: | -40°–140°F (-40°–60°C) |
Overall Dimensions: | 20" (508mm) W x 20.125" (511mm) D x 9.75" (248mm) H |
Weight: | 33.6 lbs. (15.24kg) |
Rated Voltage: | |
Rated Frequency: | |
Warranty: | One year |
TCS Part Numbers: | F502 w/ Dye Inks: 35431 Dye Printhead and Ink Set: 30986 Cyan Ink - Dye: 30636 Magenta Ink - Dye: 30643 Yellow Ink - Dye: 30650 Black Ink - Dye: 30657 F502 w/ Pigment Inks: 35424 Pigment Printhead and Ink Set: 30993 Cyan Ink - Pigment: 30664 Magenta Ink - Pigment: 30671 Yellow Ink - Pigment: 30687 Black Ink - Pigment: 30685 |
Accessories: | XL Unwinder/Rewinder (set): 26674 XL Unwinder: 26681 XL Rewinder: 28802 |
