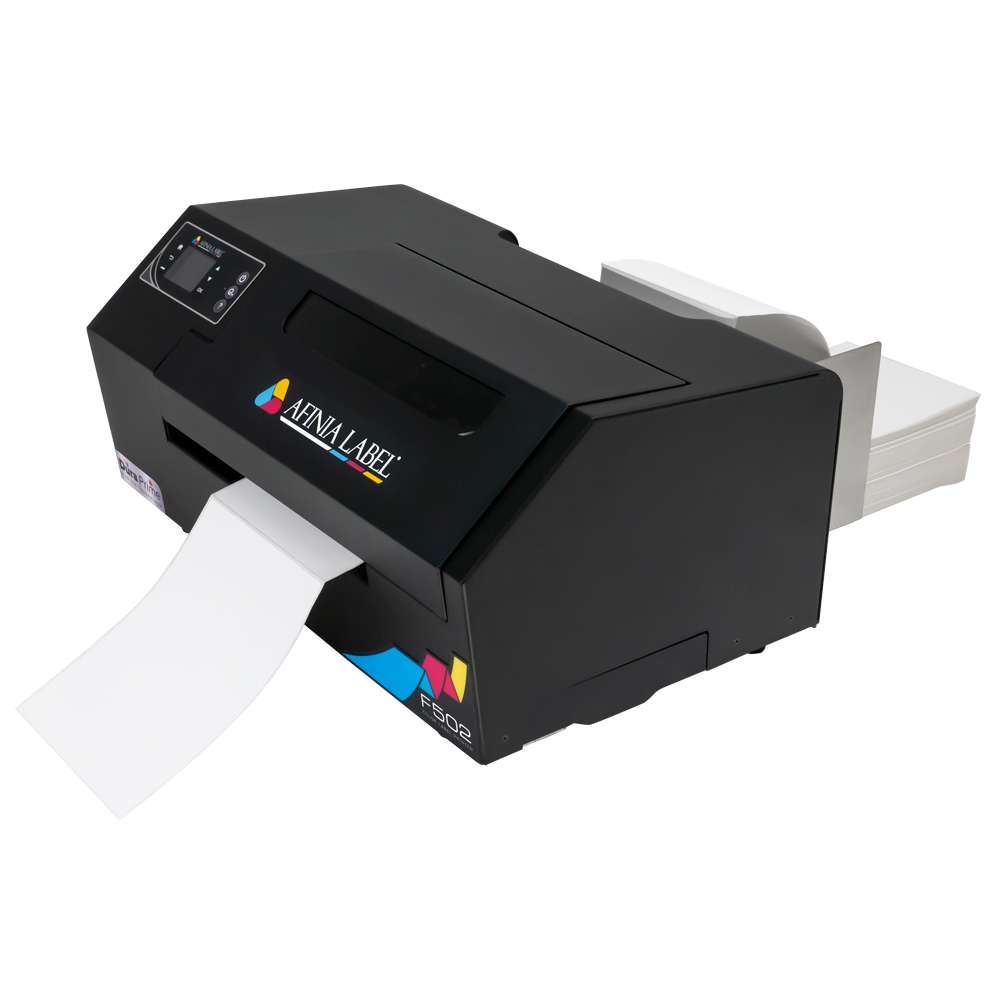

Afinia F502 Fanfold Color Label Printer with durable pigment inks
Pigment and Dye-based Labels
Pigment-based prints are highly resistant to the challenges of moisture, abrasion, sun-fading, and extreme temperature. This makes the F502 perfect for packaging requiring GHS compliance, as well as those with high exposure to moisture, such as beverages and bath products.
The F502’s dye-based prints are high-impact, colorful, and vibrant, making them ideal for prime labeling applications, such as in retail environments.
Enjoy the durability of pigment and the vibrancy of dye inks in the same printer. The F502’s ink interchangeability offers a level of versatility never before experienced in the label printing world.

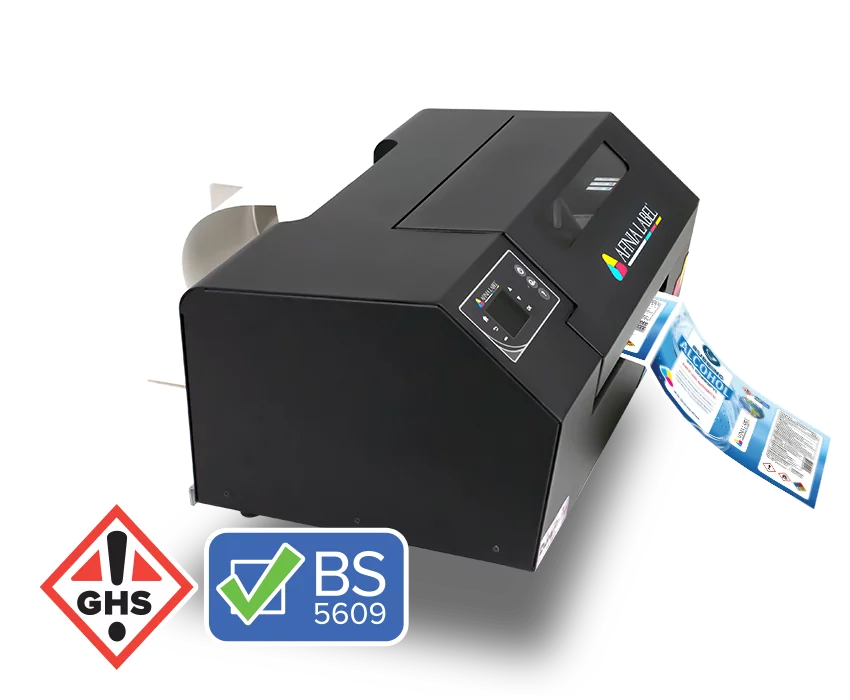

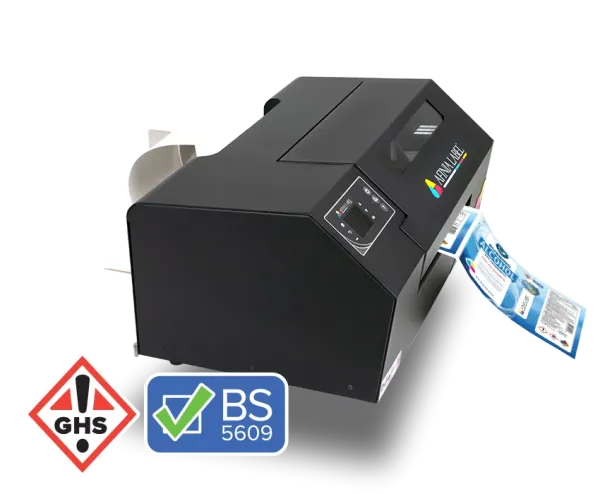

BS5609 Certified for Durable Labels
The F502 has been tested and certified to produce BS 5609-compliant and GHS (Globally Harmonized System) labels, which helps keep chemical manufacturers in compliance with packaging and transportation requirements. This testing evaluates the permanence of the print through abrasion and submersion in salt water for a period of 90 days.
The F502 is perfect for chemical drum label applications, and for those looking to replace their legacy pin-fed systems.
Built for Industrial Use

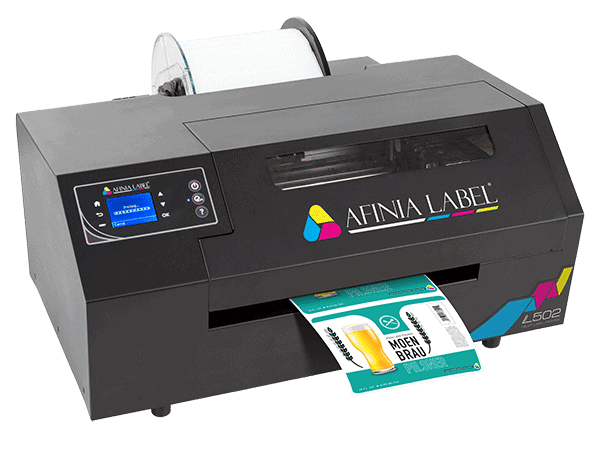

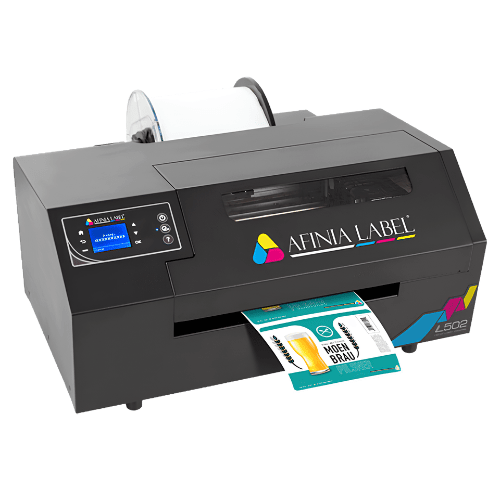

The heavy-duty construction of the F502 color label printer includes an all-steel industrial cover, with a window for print bed visibility and status monitoring. It also includes improved sensors which allow for greater compatibility with specialty media, such as reflective metallic material. In addition to the standard roll-fed model, the F502 is also available in a roll-compatible version (L502) with the same build quality and basic feature set.
Improvements extend to the F502 Color Label Printer toolbox, allowing for increased control, including ‘Pause’ and ‘Cut’ functions. Firmware upgrades can also now be more easily performed.
Versatility Meets Economy

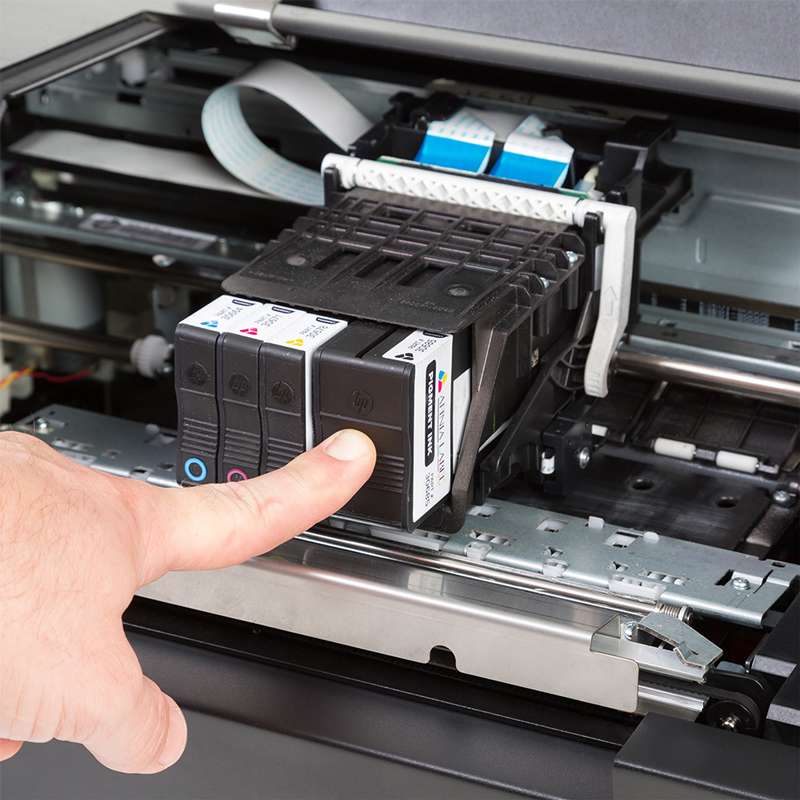

Not only is the F502 one of the most versatile desktop fanfold label printers on the market, it offers great value for small to mid-sized label applications. Separate CMYK ink cartridges contribute to a lower cost per label, since only colors that are empty need to be replaced.
|Print Method:||HP Thermal Inkjet|
|Inks:||Option of Dye or Pigment — Individual Cyan/Magenta/Yellow (26ml), Individual Black (78.4ml)|
|Print Resolution:||Up to 4800 dpi|
|Print Speed:||Artwork-dependent, Approximately 5.2 in/sec (13.2cm/sec) printing a 2.2in (56mm) wide image in normal mode|
|Print Width:||1.0"–8.5" (25.4mm–215.9mm)|
|Media Types:||Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks|
|Media Width:||1.5"–8.65" (38.1mm–219.7mm) including liner|
|Media Length:||Enter Specs Here|
|Maximum Roll Diameter:||10" (254 mm)|
|Core Diameter:||3" (76.2 mm)|
|Media Sensors:||Gap, continuous, black mark. Auto-calibrating|
|Die-Cut Label Gap:||0.125" (3.0mm)|
|Black mark:||0.125" (3.0mm) – 0.3" (8.0mm) Height, ≤1.25" (31.75mm) Width|

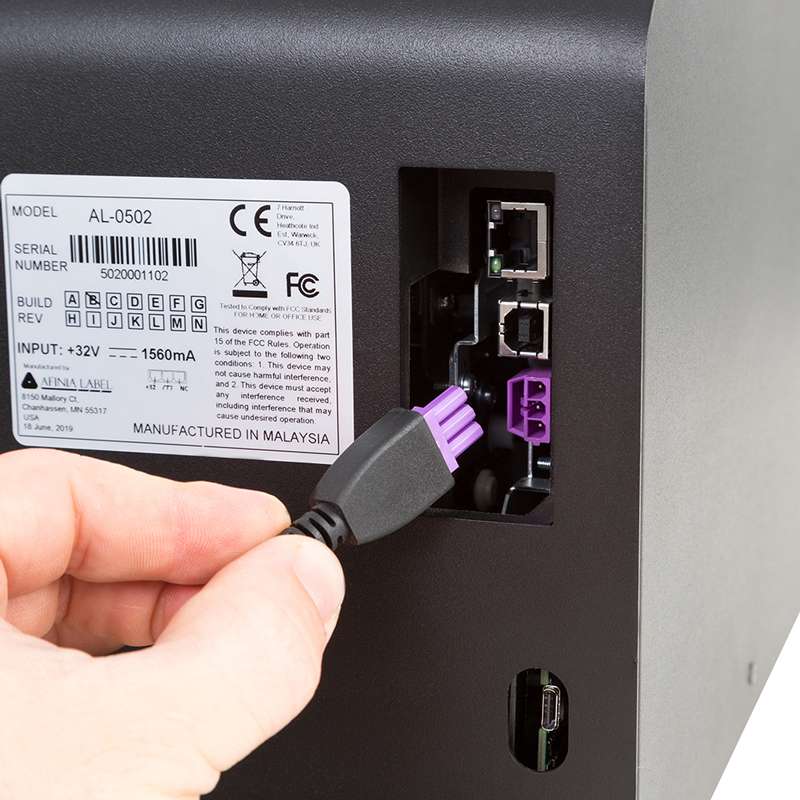

|Interfaces:||USB 2.0 connection and 10/100 Base-Tx Ethernet|
|Operating System:||Windows 7+ (32 and 64 bit)|
|Barcode Font:||Enter Specs Here|
|2-D Code Printing:||Enter Specs Here|
|Operating Temperature:||59°–90°F (15°–32°C)|
|Storage Temperature:||-40°–140°F (-40°–60°C)|
|Overall Dimensions:||20" (508mm) W x 20.125" (511mm) D x 9.75" (248mm) H|
|Weight:||33.6 lbs. (15.24kg)|
|Rated Voltage:||Enter Specs Here|
|Rated Frequency:||Enter Specs Here|
|TCS Part Numbers:||F502 w/ Dye Inks: 35431 Dye Printhead and Ink Set: 30986 Cyan Ink - Dye: 30636 Magenta Ink - Dye: 30643 Yellow Ink - Dye: 30650 Black Ink - Dye: 30657 F502 w/ Pigment Inks: 35424 Pigment Printhead and Ink Set: 30993 Cyan Ink - Pigment: 30664 Magenta Ink - Pigment: 30671 Yellow Ink - Pigment: 30687 Black Ink - Pigment: 30685|
|Accessories:||Enter Specs Here|
XL Unwinder/Rewinder (set): 26674
XL Unwinder: 26681
XL Rewinder: 28802
