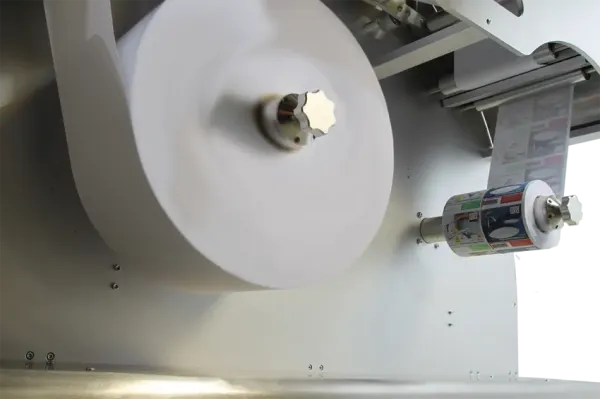

Introducing the Trojan T2: A High Volume Digital Label Press
Sophisticated Digital Label Mini Press
Professional Digital Label Mini Press For Affordable High Volume Label Production
- Fast print speed up to 12 inches per second (60 ft per minute)
- Superior print resolution up to 1600 dpi
- Print width from 2″ to 8.77″
- World’s first affordable production digital label mini press

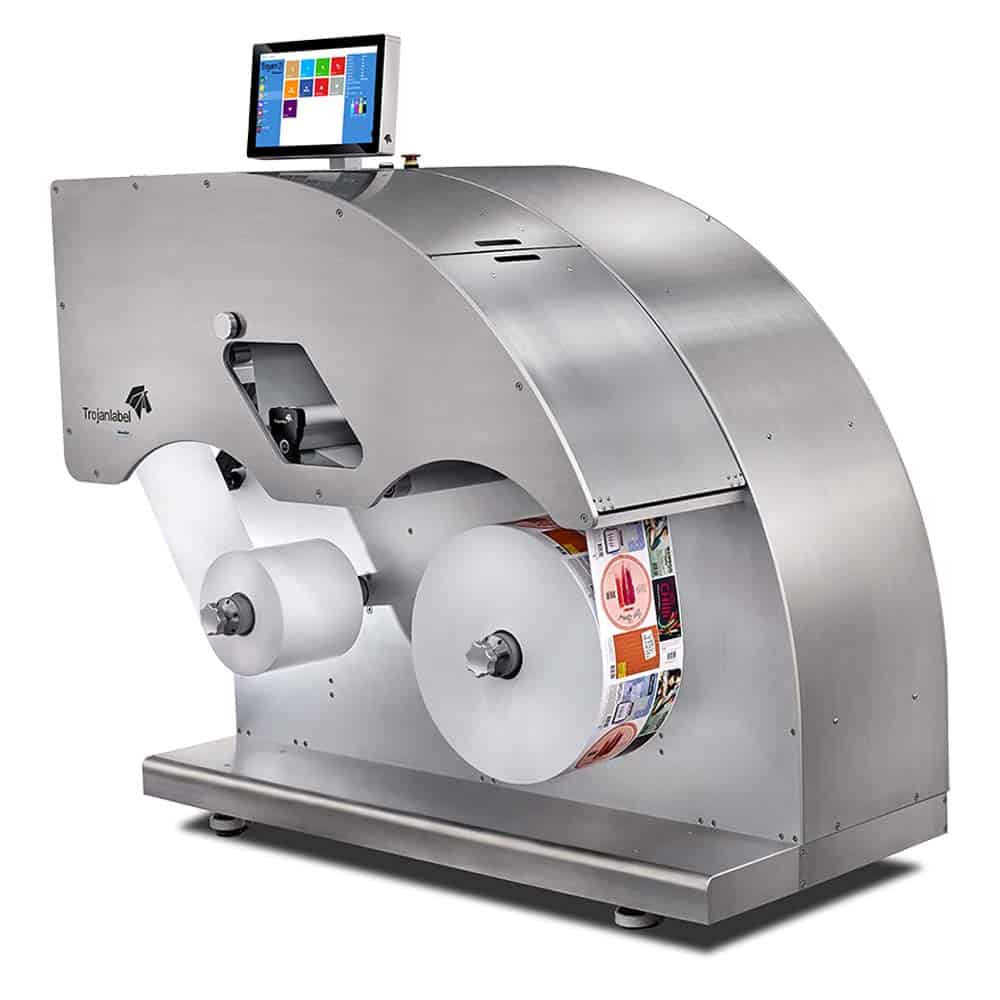

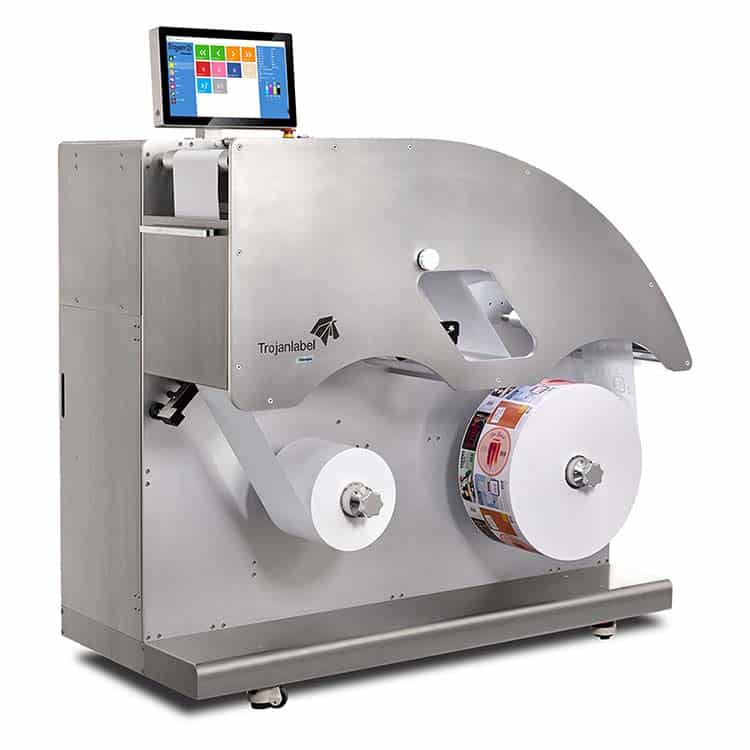

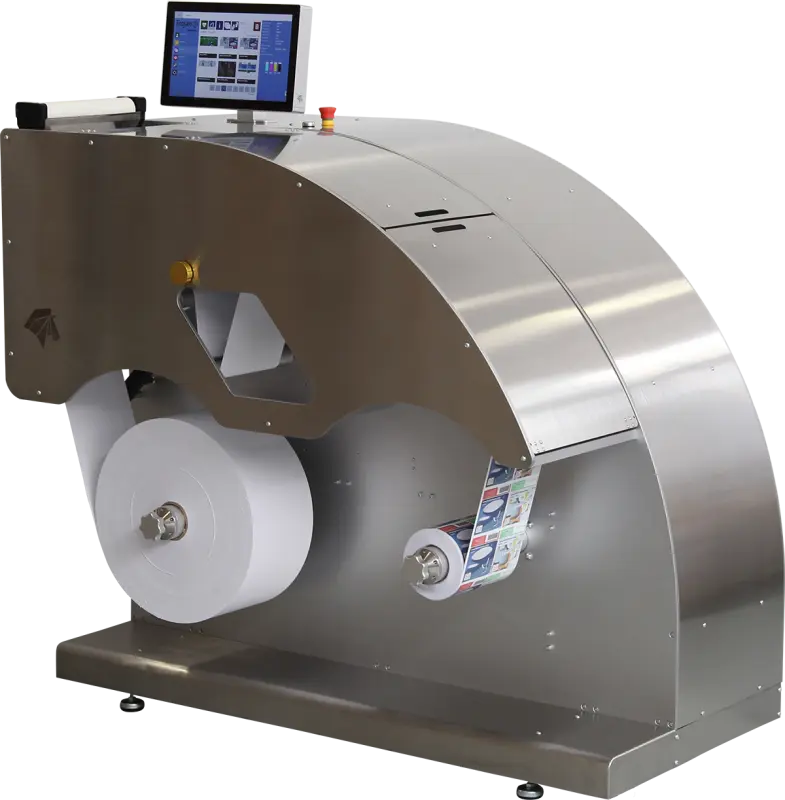

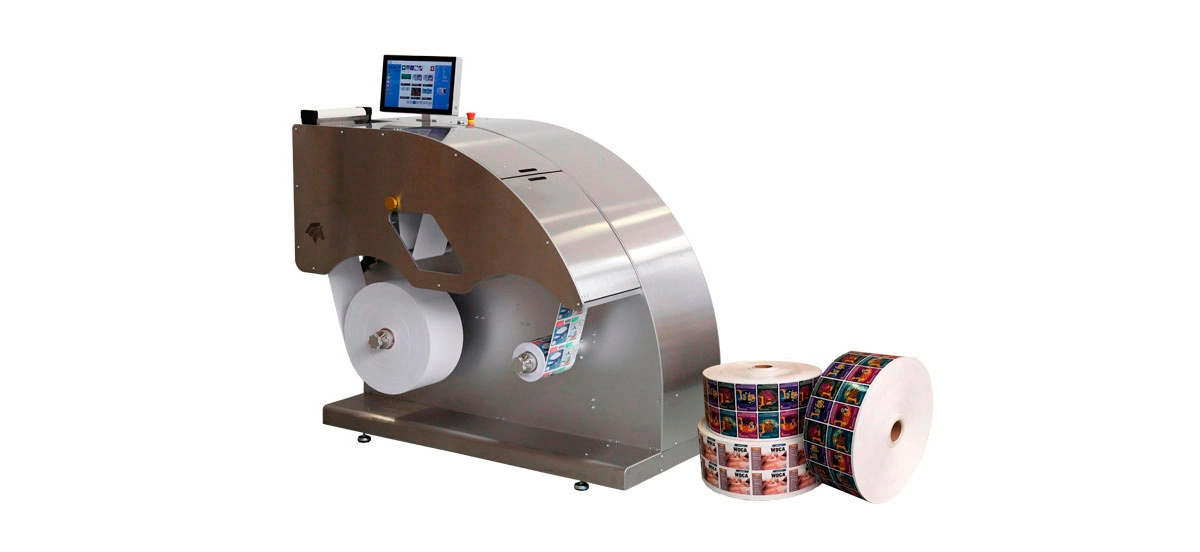

The T2 is the world’s first affordable, industrial-grade, compact, and professional digital label mini press for advancing in-house labeling production. This mini-press has characteristics of a much larger and more expensive press. As a result, this design gives customers the advantage to convert their labels at a fraction of the cost.
Moreover, the T2 provides labels suitable for commercial labeling with a superior print resolution of up to 1600 dpi. In addition, labels can be printed in multiples or as one large label in a print run because of the 2” to 8.77” width area capabilities. Above all, its impressive print speed of up to 12 inches per second allows users to generate long runs within a short period.

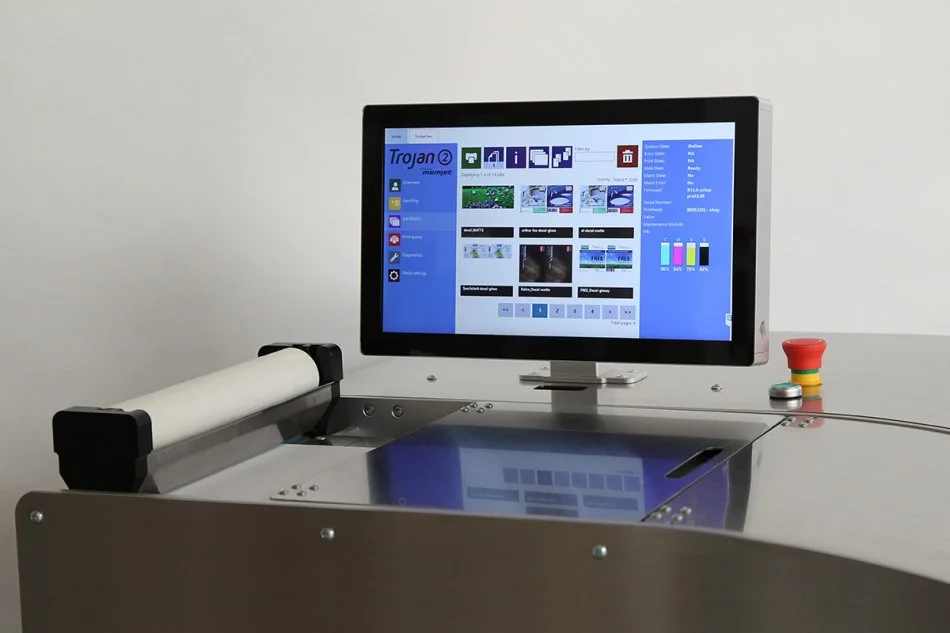

With the T2, the consumption of ink is reduced to an absolute minimum when compared to other systems. Its TrojanControl touch screen software, which includes a cost calculator and job library, makes it even easier to review operating costs. In addition, the TrojanControl display makes it effortless to place labels on pre-die cuts in perfect registration.
Known for its exceptionally quiet operation in any facility, the T2 is a robust system that delivers quality output and high productivity for label converters, print shops, contract packaging providers, and secondary label logistics.
The T2 is an ideal label printing solution designed to give both owners and users peace of mind with the perfect combination of ease of use, quality, and reliability.

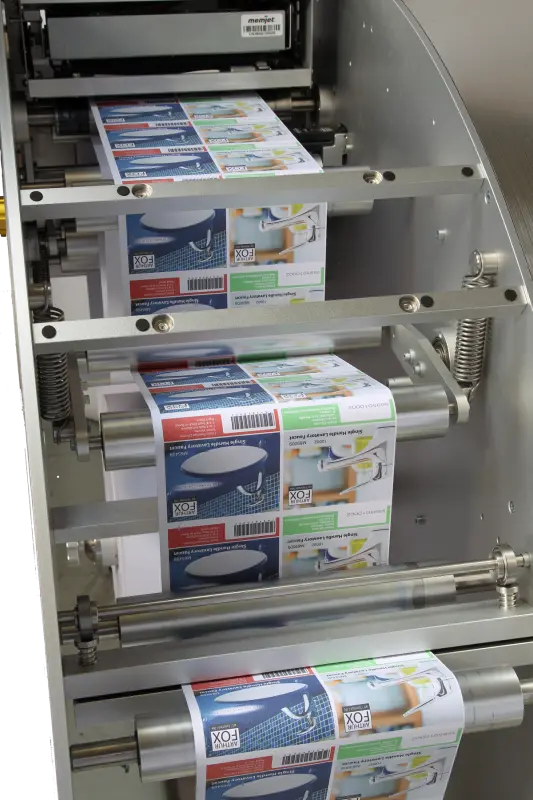

|Print Method:||Memjet Waterfall Technology|
|Inks:||Dye ink, (4) individual CMYK tanks|
|Print Resolution:||1600 x 1600 dpi full color|
|Print Speed:||6 ips (152 mm/sec) or 12 ips (305 mm/sec)|
|Print Width:||2″ (51 mm) – 8.8″ (223 mm)|
|Media Types:||Paper, Inkjet coated gloss paper, PE, PET, PP|
|Media Width:||2″ (51 mm) – 9.5″ (241 mm)|
|Media Length:||0.6″ (15 mm) – 60″ (1525 mm) (Die-cut)|
|Thickness:||4pt/mil to 12 pt/mil|

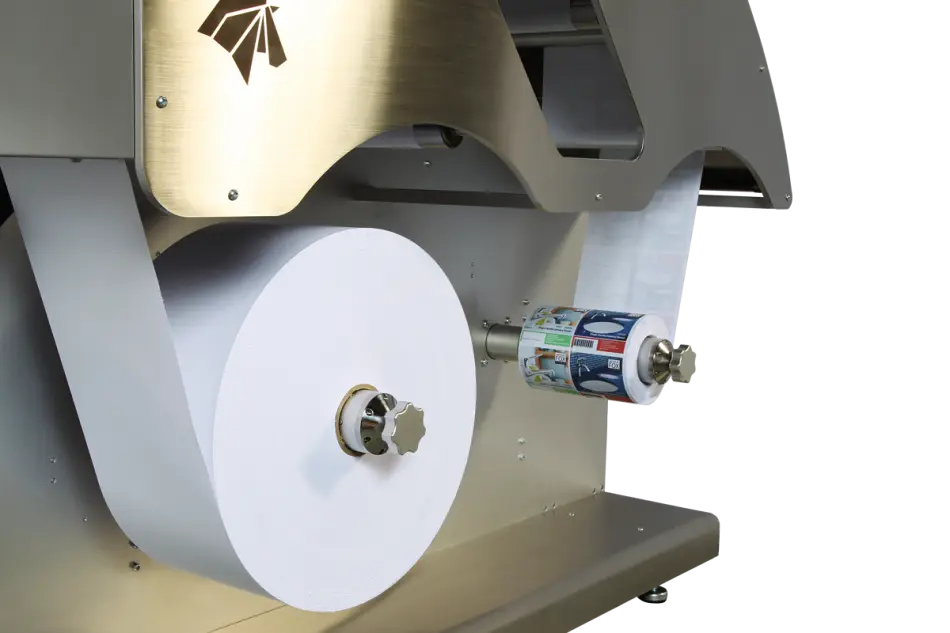

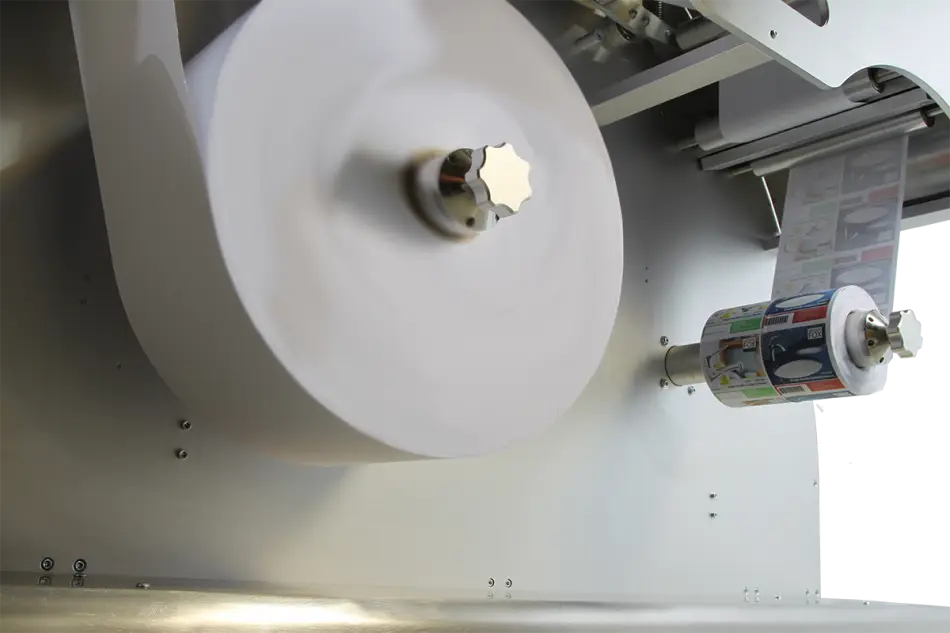

|Maximum Roll Diameter:||24″ (600 mm)|
|Core Diameter:||3″ (76 mm)|
|Media Sensors:||Optical tracking edge sensor, adjustable position Black mark sensor, gap sensor and continuous|
|Die-Cut Label Gap:||Supported|
|Cutter/sheeter:||Slitter for die-cut labels (3 knives) - OPTIONAL; Exit feeder for inline placement - OPTIONAL|
|Operating System:||TrojanControl Software; Microsoft Windows® 10, 8.1, 8, 7; Windows Server® 2012, 2008, 64/32-bit Drivers|
|Barcode Font:||All Barcodes Supported|
|2-D Code Printing:||All 2-D Barcodes Supported|
|Operating Temperature:||41° F to 95° F (5° C to 35° C), 59° F (15° C) recommended, at RH 22 to 80% (non-condensing)|
|Storage Temperature:||23° F to 122° F (-5° C to 50° C) at RH up to 85%, non-condensing at 149° F (65° C)|
|Overall Dimensions:||59″ L x 36″ W x 62″ H (1500 mm x 916.5 mm x 1591 mm)|
|Weight:||1036 lbs. (470 kg) without supplies|
|Rated Voltage:||100-240V AC|
|Rated Frequency:||50/60 Hz|
|Warranty:||12 Month Manufacturer’s Parts & Labor Warranty (excludes wear parts and supplies)|
