Trojan™ T5

-> Lowest Price Guarantee* -> Call for Best Price +1 (678) 824-2304

Category:

Description

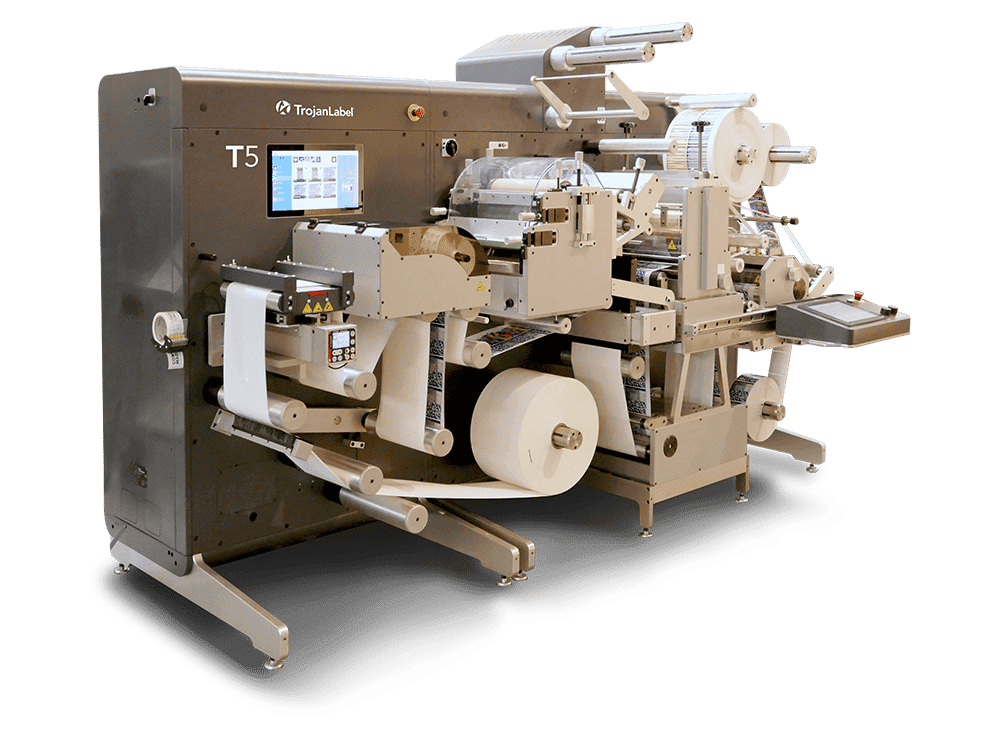

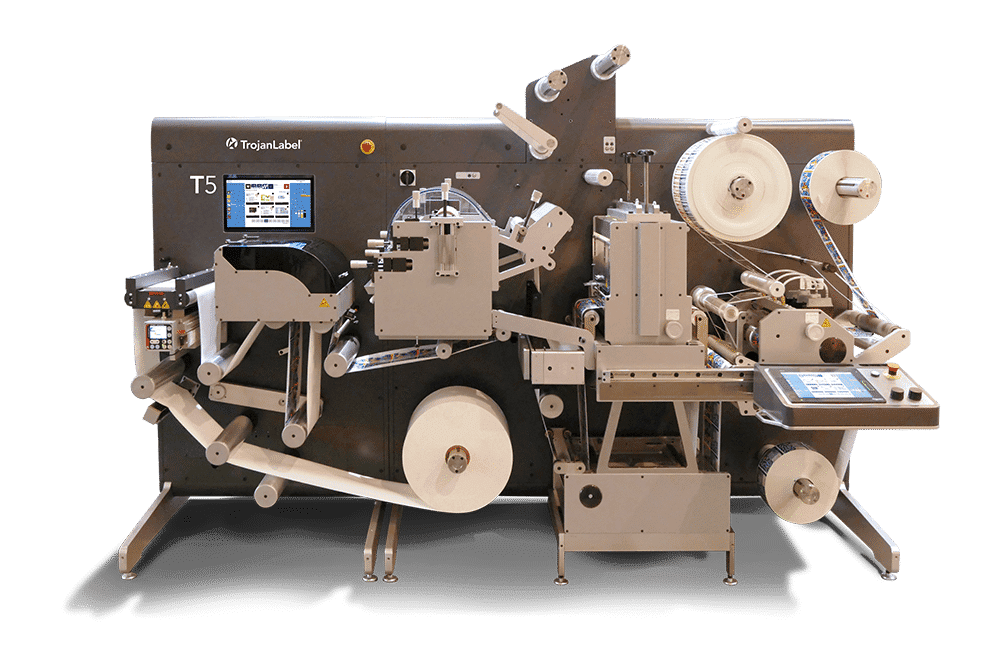

TrojanLabel T5 Digital Press

Quick Facts

  • null

    Printer Cost: Call for a price

  • null

    Monthly Use: 1,000,000+

  • null

    Ink Type: Dye

  • null

    Print Speed: 60 ft/min (18.3 m/min)

  • null

    Max Print Width: 8.5 in (216 mm)

  • null

    Max Roll Diameter: 27.6 in (701 mm)

Advanced Full-Print In-Line Digital Color Label Press and Finishing System

A robust, high-production label printing and converting solution, the T5 is perfectly designed for the professional printing market.

The TrojanLabel® T5 is an all-in-one digital print and finish in-line labeling solution. With a superior printing resolution of up to 1600 dpi, the T5 features added enhancements such as spot and SUPERgloss, varnish, lamination, slit & rewind, and optional cold foil application for silver, gold, and metallic decorative accents – all of this one single, compact platform.

With an impressive print speed, up to 12 inches per second (60 ft. per minute), the T5 allows users to generate high capacity production and long runs within a short period.

The Trojan™ T5 features operator-friendly TrojanControl software. The touch screen interface comes complete with a job library and includes other benefits, such as a cost calculator – making it easy to review operating costs. The T5 reduces ink consumption to an absolute minimum, delivering the market’s lowest cost of operations. Users are pleasantly surprised at the quiet operation of a printer of this caliber.

The T5 is a high-performance unit perfect for professional printers and large brand owners.

Printer
Print Method:Memjet Inkjet
Inks:CMYK Dye Based Inks
Print Resolution:1600 x 1600 DPI
1600 x 800
Print Speed:16 ft/min (18.3 m/min)
Print Width:2" - 8.5" (51 mm - 216 mm)
Media
Media Types:Non Adhesive Ink Jet Coated Paper
Adhesive Ink Jet Coated Paper
Adhesive Ink Jet Coated Polypropylene (PE)
Adhesive Ink Jet Coated Polyester (PET)
Media Width:2" - 13" (50 mm - 330 mm)
Thickness:50 - 200 microns (2-8 pt)
Maximum Roll Diameter:Unwind: 27.6" (700 mm)
Rewind: 19.7" (500 mm)
Core Diameter:3" Core
Die Station:Semi-Rotary Speed 105 ips (32 m/min)
Full-Rotary Speed: 164 ft/min (50 m/min)
Die Plate Size (repeat): 2" - 22" (50 mm - 558.8 mm)
Slitting Station:Knife Type: Pneumatic Crush, Smart Crush, Shear or Razor Knife
Min Distance Shear: 0.4"
Media Types:Non Adhesive Ink Jet Coated Paper
Adhesive Ink Jet Coated Paper
Adhesive Ink Jet Coated Polypropylene (PE)
Adhesive Ink Jet Coated Polyester (PET)
Media Width:2" - 13" (50 mm - 330 mm)
General
Interfaces:100/1000 BaseT Ethernet
Operating Temperature:68ºF to 95ºF (20ºC to 35ºC), with RH 22%-80% (non-condensing)
Storage Temperature:23ºF to 122ºF (-5ºC to 50ºC) with up to RH 85% (non-condensing)
Overall Dimensions:117" x 78" x 60" (2969 mm x 1980 mm 1515 mm)
Weight:Approx. 2000 lbs. (907 kg) without ink, media and Lamination rolls
Rated Voltage:Y 3W + N + PE 400V 50Hz 16A - min. 350mA RCCB (HFI)
Interfaces:100/1000 BaseT Ethernet
Rated Frequency:50/60 Hz
Warranty:12 Month Manufacturer’s Parts & Labor Warranty (excludes wear parts and supplies)
