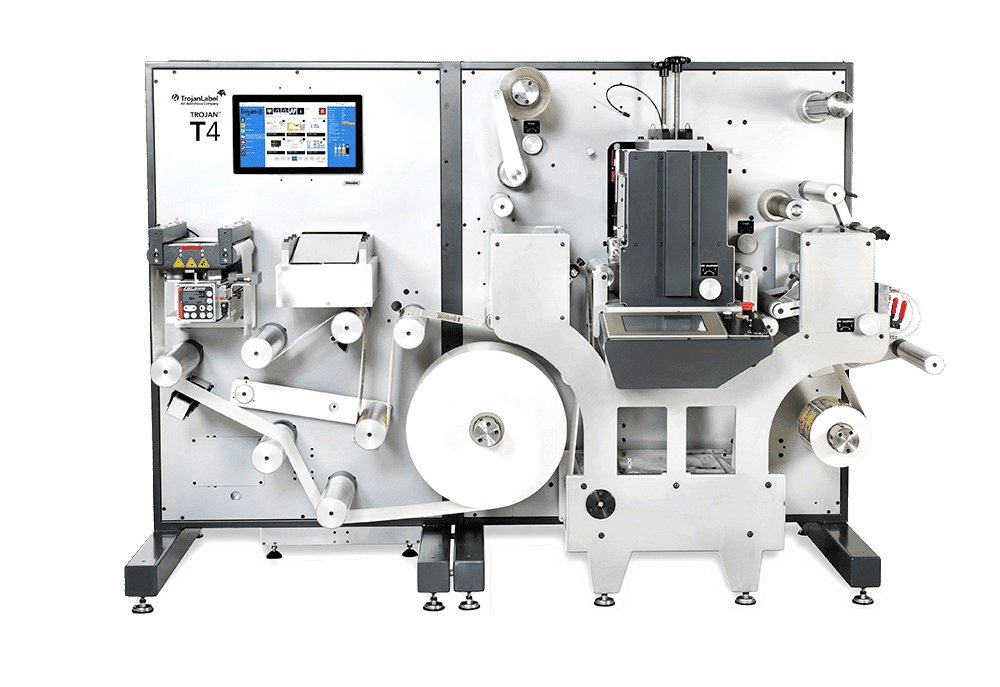

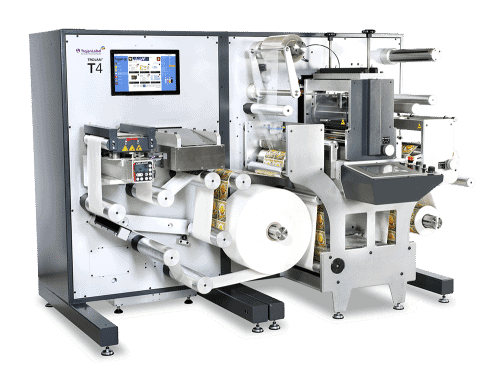

TrojanLabel T4 Digital Press

Quick Facts

  • null

    Printer Cost: Call for Pricing

  • null

    Monthly Use: 1,000,000+

  • null

    Ink Type: Dye

  • null

    Print Speed: 60 ft/min max

  • null

    Max Print Width: 8.5 in (216 mm)

  • null

    Max Roll Diameter: 20 in (508 mm)

Professional Label Press & Finishing System for Compact Production

  • High print speed up to 12 inches per second (60 ft per minute)
  • Superior print resolution up to 1600 dpi
  • Print width 2″ to 8.8″
  • Optimized footprint 7.58 x 4.75 x 5.0 ft.
  • High-volume label printing press with a complete finishing system

The T4 encompasses the entire labeling production line within a first-class intuitive system built on decades of experience.

The T4 is a robust, stand-alone, advanced label printing press that includes a precision laminator and semi-rotary die-cutting feature for complete label production. Less than 7-1/2 feet long, the T4 has a much smaller footprint than comparable systems taking up less space on the production floor.

Moreover, the T4 provides labels with a superior print resolution of up to 1600 dpi and a print width of 2” to 8.77”. In addition, this professional label & finishing press also automatically adjusts for variances in timing and spacing when fed manually. Above all, its impressive print speed of up to 12 inches per second allows users to generate high capacity production and long runs within a short period.

The T4 is one of the most compact and economic finishers in the market, providing perfect registration. The TrojanControl touch screen is complete with a job library and has other beneficial features, including a cost calculator, making it easy to review operating costs. The T4 reduces ink consumption to an absolute minimum, delivering the market’s lowest cost of operations. Users are pleasantly surprised at the quiet operation of a printer of this caliber.

The T4 offers an all-in-one solution press from start to finish. Ideal for stand-alone operation, brand owners, and label converters.

Printer
Print Method:Memjet Inkjet
Inks:CMYK Dye
Print Resolution:1600 x 1600 DPI
1600 x 800
Print Speed:30 ft/min (9.14 m/min)
60 ft/min (18.29 m/min)
Print Width:2" (51 mm) - 8.8" (223 mm)
Finishing Length:2" (51 mm) - 22" (550 mm)
Media
Media Types:Non Adhesive Ink Jet Coated Paper
Adhesive Ink Jet Coated Paper
Adhesive Ink Jet Coated Polypropylene (PE)
Adhesive Ink Jet Coated Polyester (PET)
Media Width:2" - 13" (50 mm - 330 mm)
Thickness:50 - 200 microns (2-8 pt)
Maximum Roll Diameter:Unwind: 20" (500 mm)
Rewind: 19.7" (500 mm)
Core Diameter:3" Core
Die Station:Semi-Rotary Speed 105 ips (32 m/min)
Full-Rotary Speed: 164 ft/min (50 m/min)
Die Plate Size (repeat): 2" - 22" (50 mm - 558.8 mm)
Slitting Station:Knife Type: Pneumatic Crush or Razor Knife
Min Distance Crush: 0.5"
General
Interfaces:100/1000 BaseT Ethernet
Operating Temperature:41ºF to 95ºF (5ºC to 35ºC), 59ºF (15ºC) recommended, with RH 22%-80% (non-condensing)
Storage Temperature:23ºF to 122ºF (-5ºC to 50ºC) with up to RH 85% (non-condensing)
Overall Dimensions:57" x 91" x 60" (1450 mm x 2300 mm 1524 mm)
Weight:Approx. 2646 lbs. (1200 kg) without ink, media and Lamination rolls
Rated Voltage:Y 3W + N + PE 400V 50Hz 16A - min. 350mA RCCB (HFI)
Rated Frequency:50/60 Hz
Warranty:12 Month Manufacturer’s Parts & Labor Warranty (excludes wear parts and supplies)
