This Listing is for model:
Dispensa-Matic U25 Label Dispenser, U-25 with Photo-eye, Up to 2.5″ Wide SKU: Dispensa-Matic-U25-Photo-Eye
About Dispensa-Matic U25 Label Dispensers
MADE IN USA | 3 Year Warranty!

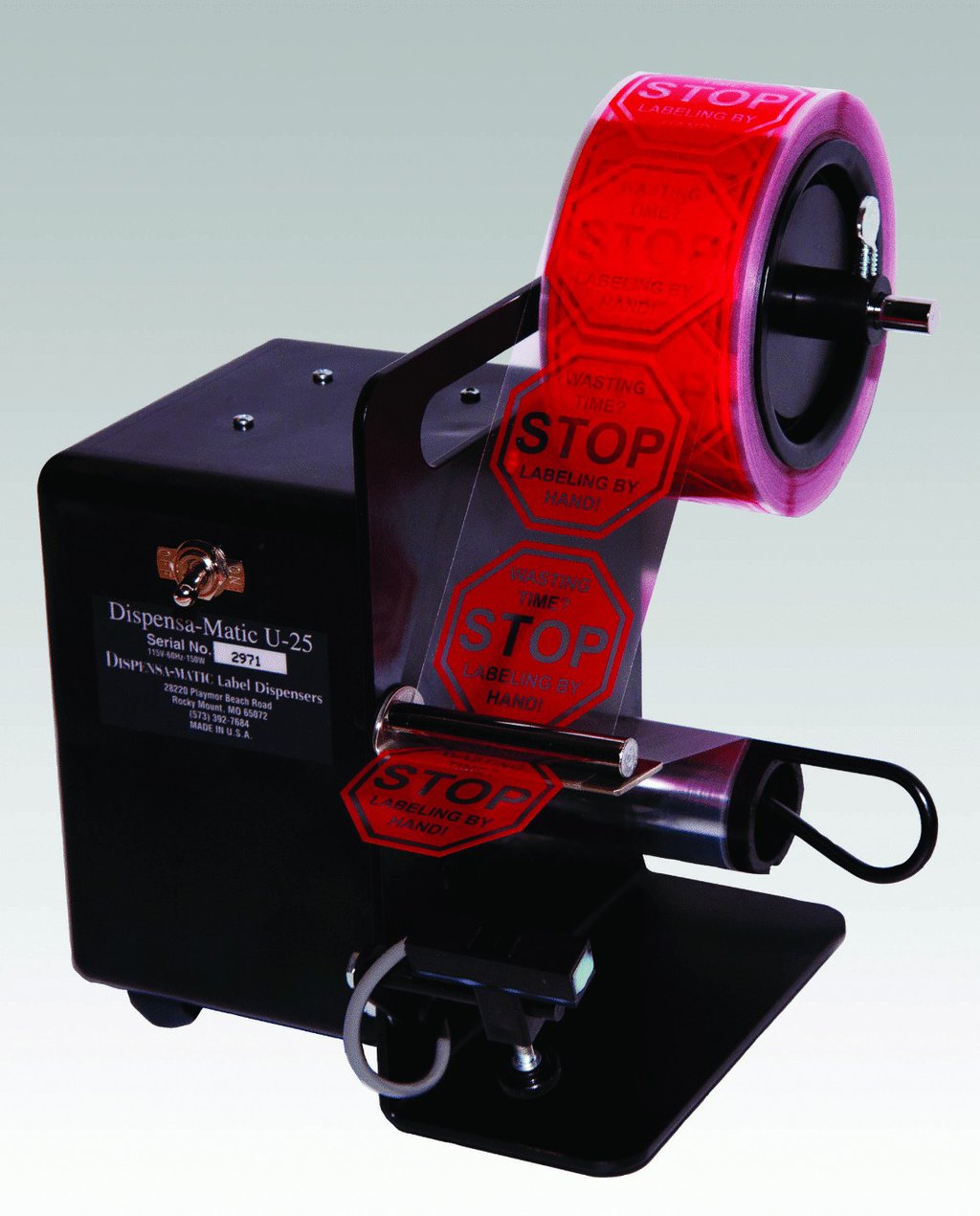

Dispensa-Matic U-25 Label Dispenser: Is a simple heavy-duty semi-automatic electric label dispenser that is designed for labels from 3/8 of an inch to 2.5 inch widths to any length tall. This label dispenser advances at over 4″ per second (Faster than so called High-Speed machines from competitors). U-25 allows you to peel small labels with ease.
Dispensa-Matic Label Dispensers now have 2 options for sensing labels. The standard option is a photo detector that detects the label by “seeing” it from .5″ to 1.5″ away. This method works for most labels, even transparent ones. The other option is a brand new design, another Dispensa-Matic patented Original from Richard Shannon! It is an optical sensor with physical detector, allowing even the thinnest transparent labels to be sensed with ease. This sensor will operate with less than 2 grams of force (one fourth the force of the previous micro-switch), but tested to last for over 2 million labels!
SATISFACTION GUARANTEED. If we cannot make you happy within 21 days, send it back. Limit 1 per customer.
Two types of label sensing options, Photo Eye Detector, and Physical Detector (Switch)
Butt cut, or die cut compatible!
Multiple row compatible.
Semi-Automatic dispenser, pick, apply, and repeat.
Label Circuit boards, PCBs, small bottles, bags, ICs, or anything that needs a small label.
Full 3 Year warranty, including parts and labor.
If repair is ever needed we offer a 1-Day turn-around!
In house manufacturing, you know you will get support when you buy Dispensa-Matic.
Dispensa-Matic U-25 is always In-Stock and ready to ship
Product Details:
We use very few outside sources for our machine components.
Side frames: made using the highest quality metals then formed, countersunk, de burred, and inspected one at a time at our facility.
Dispensing Tables: formed out of stainless. The peel edge is hand shaped to spec by our 20+ year machinist to get that perfect peeling edge needed to dispense labels without tearing the backing paper. Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate. (We do NOT use cheap teflon tape that will peel off over time!)
The U-25 motor: is a shaded pole AC motor, and is also made in the USA to our specifications. (No CHEAP 12v motors here!)
Dispensa-Matic U-25 is an original design: from Dispensa-Matic! American made precision, quality, support, and longevity with over 35 years of experience from the same owner/designer!
International compatibility: We use motor specifically for Europe and all other 220V 50/60hz, (no cheap 12v DC motors here)
Dimensions: 8″x8″x12″, Weight 7 Lbs.
