Sale!

Dispensa-Matic Flat-Matic 12″ Square Electric Label Applicator / Label Dispenser SKU: Flat-Matic-12

$3,613.00
Easy Financing


Lowest Price Guarantee*
Call or Email for Best Price
+1 (678) 824-2304
+1 (833) 940-5131
orders@tcsdigitalsolutions.com

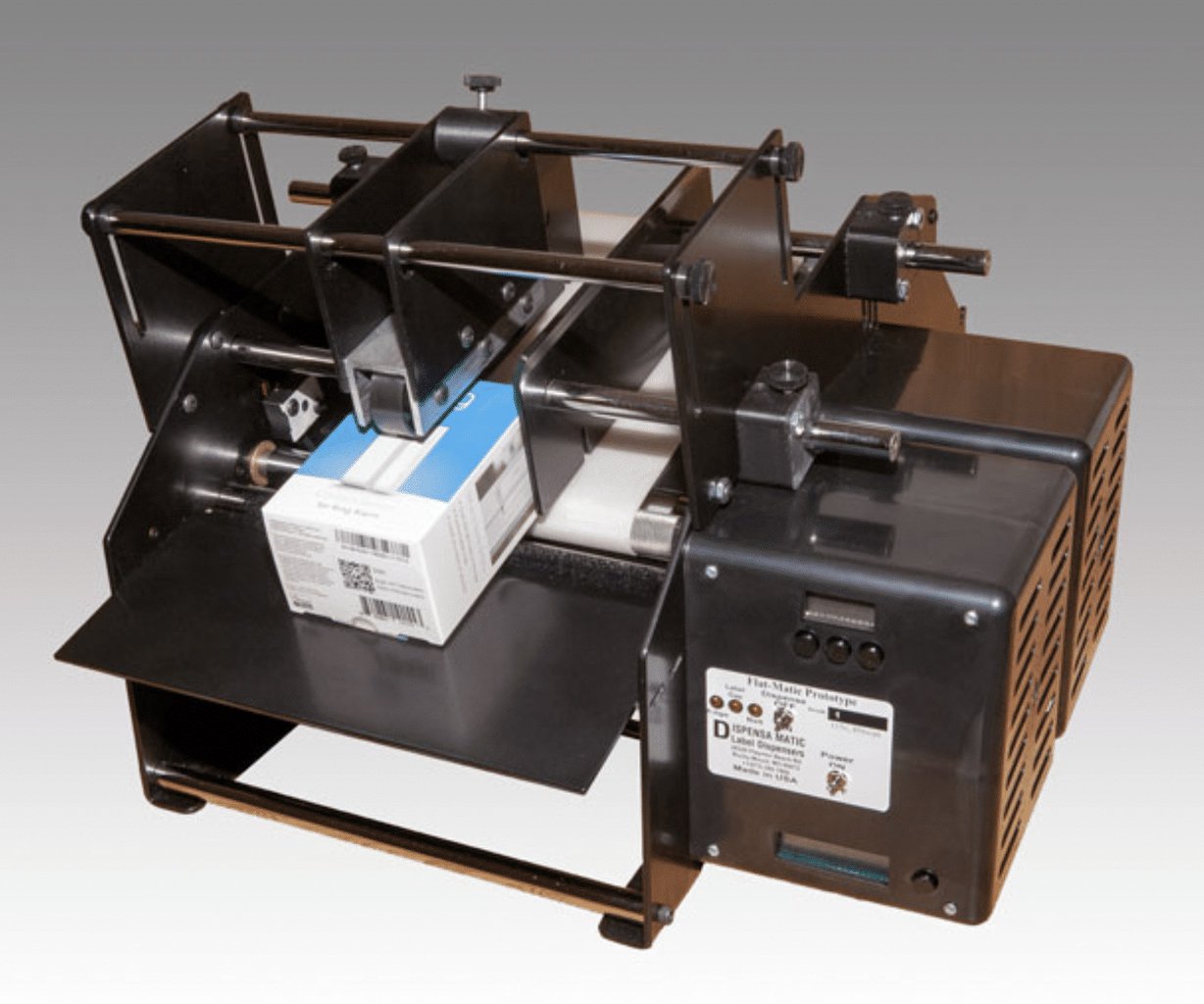

Dispensa-Matic Flat-Matic 12″ Square Electric Label Applicator / Label Dispenser SKU: Flat-Matic-12

Flat-Matic (Optical Sensing) Desktop Semi-Automatic for labeling Flat / Square containers. Label containers from 1/4″ to 4 1/2″ tall with ease using thin labels.

CIT Business Financing

Description

You are here:
Dispensa-Matic Flat-Matic 12" Square Electric Label Applicator / Label Dispenser SKU: Flat-Matic-12
  • Dispensa-Matic’s own NO-ADJUST optical sensors (no sensor adjustment or cleaning)
  • Capable of dispensing labels down to 1 mil thickness
  • Label can be from 1″-8″ on our 6″ Flat-Matic and 1.5″-14″ wide on the 12″ Flat-Matic
  • Product can be from 1 5/8″ to 6″ Wide on the 6″ Flat-Matic or 1 5/8 to 12″ wide on the 12″ Flat-Matic
  • Product can be 1/4″ to 4.5″ in height if pressure arm is used! If no pressure arm is used unlimited height.
  • All Flat-Matic purchases INCLUDE the Rewind-o-Matic at no extra charge.
  • The Flat-Matic 6″ applies labels within 1/8″, and the Flat-Matic 12″ applies labels within 1/4″.

PRIOR TO ORDERING: It is HIGHLY recommended that you send in sample containers, and a roll of labels in for testing. We will provide a video with your product and labels in a real world test. If interested in sending in test samples please call or email: orders@tcsdigitalsolutions.com so we can provide instructions on how to do so.

*A full 3 year parts and labor warranty covers each unit against manufacturing defect. We provide full service and parts at our plant if needed. Only limited service is ever necessary.

Operating Instructions

Video Operating Instructions:

Step One

Step Two

Step Three

Step Four

Flat-Matic 6 specs

Flat-Matic 12 specs

Label Specs

Flat-Matic Label Requirements:



  • Must be on 3” core
  • Must have approximately an 1/8” gap between labels
  • Must be in copy position 1, 2, 3 or 4. (copy position 1 &2 will position the product vertically, 3 & 4 will position the product horizontally.
  • Maximum roll diameter 9”
  • Label can be down to 1 mil thick
  • Length of label must be over 1 1/2”
  • Width of label can be 2” to 8” wide on 6” Flat-Matic or 2” to 14” wide on 12” Flat-Matic.



If you are using clear labels, they will work but you will to notify us, as you will need a different sensor on your machine. With clear labels you will also need black reference lines on the backing paper.



NOTE – Narrow labels will work but must be on backing paper of at least 2” wide.
