This Listing is for model:

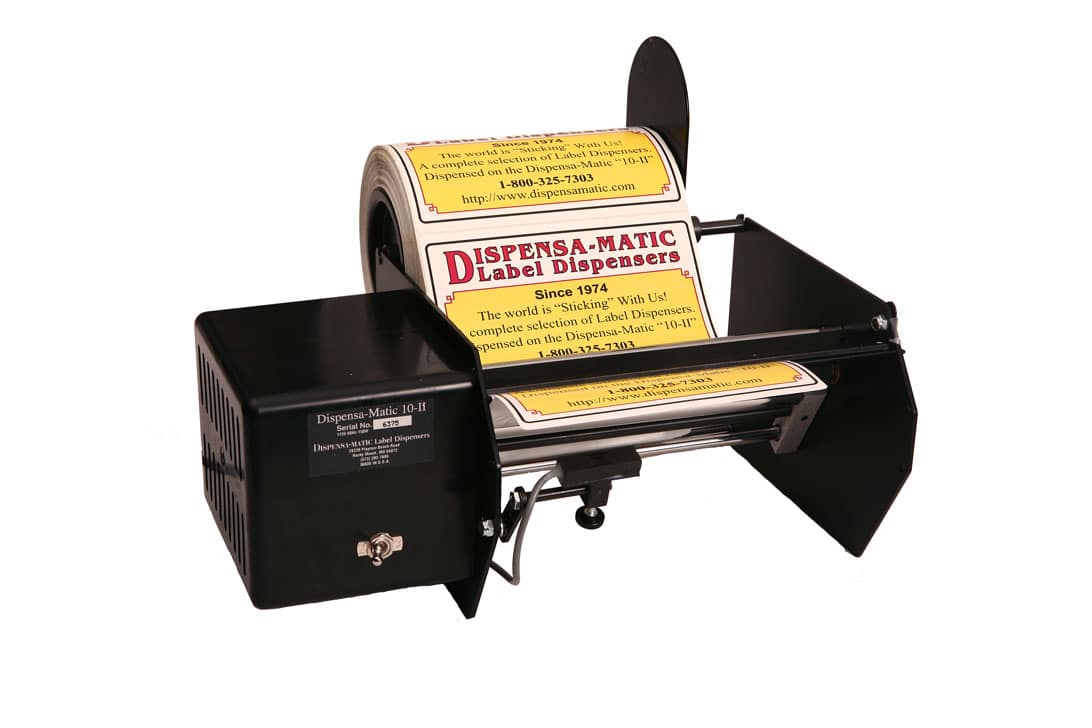

Dispensa-Matic DM 10 II Wide Format Label Dispenser with Photo Eye, Up to 10″ Wide SKU: Dispensa-Matic-10-II-Photo-Eye
About Dispensa-Matic DM II Wide Format Label Dispensers
MADE IN USA | 3 Year Warranty!
Dispensa-Matic DM-II Label Dispensers: are heavy-duty semi-automatic electric label dispenser for labels from 2″-14″ widths x any length. These label dispensers advances at over 6″ per second. DM-II machines are specifically designed not to wind up waste paper. This allows the user to dispense rolls up to 15″ Diameter (large roll adapter) without changing the waste! Loading is a “snap”, just feed the labels between the dispensing tables then through the patented feed-roll assembly and “snap” into place.
Dispensa-Matic Label Dispensers now have 2 options for sensing labels. The standard option is a photo detector that detects the label by “seeing” it from .5″ to 1.5″ away. This method works for most labels, even transparent ones. The other option is a brand new design, another Dispensa-Matic patented Original from Richard Shannon! It is an optical sensor with physical detector, allowing even the thinnest transparent labels to be sensed with ease. This sensor will operate with less than 2 grams of force (one fourth the force of the previous micro-switch), but tested to last for over 2 million labels!
SATISFACTION GUARANTEED. If we cannot make you happy within 21 days, send it back. Limit 1 per Customer.

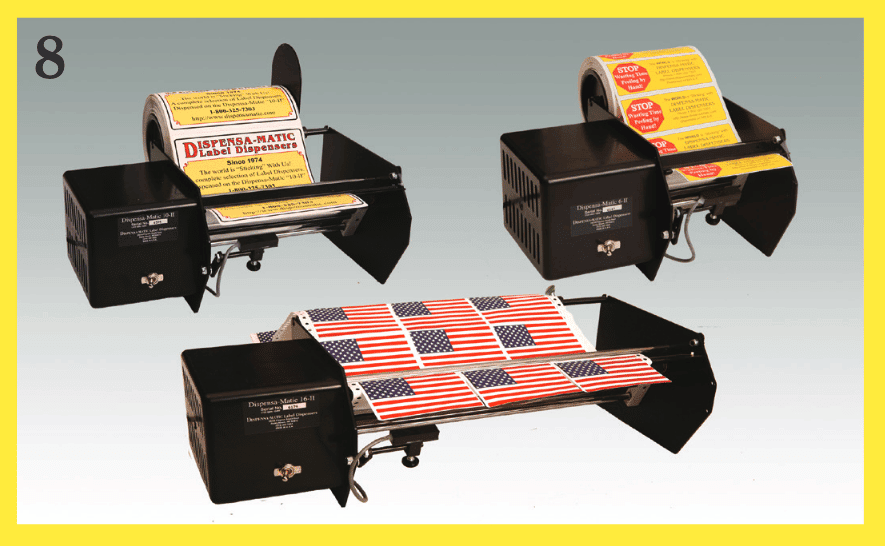

The DM-II comes in three different sizes!
The “6-II” is designed for labels that are from 2″ in width to 5″ for fan fold & 2″ to 4″ widths for rolls of labels
The “10-II” is designed for labels that are from 2″ in width to 9″ for fan fold & 2″ to 8″ widths for rolls of labels
The “16-II” is designed for labels that are from 2″ in width to 15″ for fan fold & 2″ to 14″ widths for rolls of labels
All DM-II are:
Best for roll or fan-fold labels
Best for large diameter rolls, and where constant speed is needed
Does not wind up waste
Two types of label sensing options, Photo Eye Detector, and Physical Detector
Butt cut, or die cut compatible!
Semi-Automatic dispenser, pick, apply, and repeat.
Label Circuit boards, PCBs, small bottles, bags, ICs, or anything that needs a small label.
Full 3 Year warranty, including parts and labor.
If repair is ever needed we offer a 1-Day turn-around!
In house manufacturing, you know you will get support when you buy Dispensa-Matic.
Dispensa-Matic DM-II is always In-Stock and ready to ship
We use very few outside sources for our machine components.
Side frames: made using the highest quality metals then formed, countersunk, de burred, and inspected one at a time at our facility.
Dispensing Tables: formed out of 6061-T6 Aluminum. The peel edge is hand milled to spec within .001″ using a special hand-made cutting tool to get that perfect peeling edge needed to dispense labels without tearing the backing paper. (35 years of perfecting the peeling action) Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate. (We do NOT use cheap teflon tape that will peel off over time!)
The DM-II motor: is a shaded pole AC motor, and is also made in the USA to our specifications. (No CHEAP 12v motors here!)
Dispensa-Matic DM-II is an original design: from Dispensa-Matic! American made precision, quality, support, and longevity with over 35 years of experience from the same owner/designer!
International compatibility: We use motor specifically for Europe and all other 220V 50/60hz, (no cheap 12v DC motors here)
