This Listing is for model:
DELUXE Dispensa-Matic Single Label Bottle-Matic 16″ Electric Label Applicator / Label Dispenser (16″ Base) SKU: Bottle-Matic-16-Single-Deluxe
DELUXE Models include all of the available options at a discounted price:
About Bottle-Matic Label Applicators & Dispensers
MADE IN USA | 3 Year Warranty!

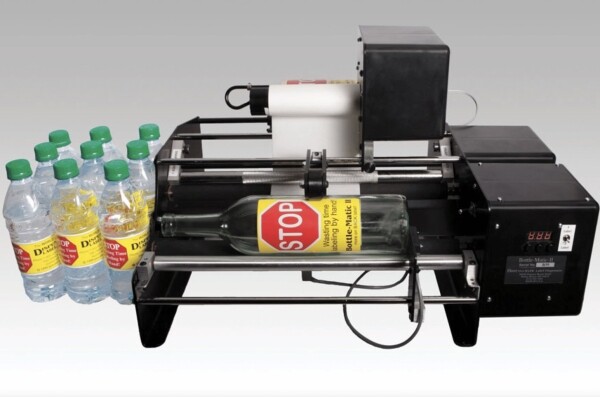

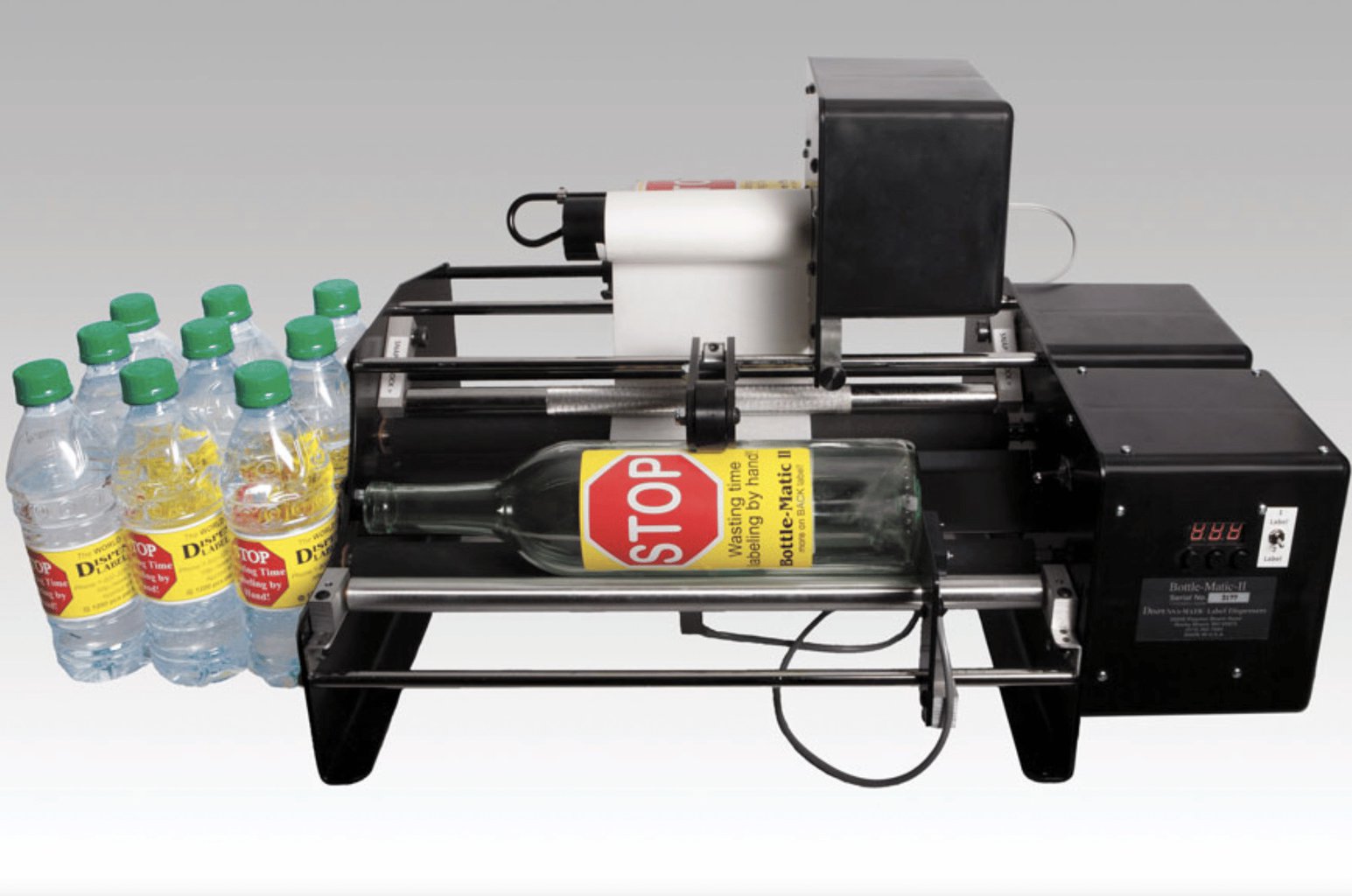

The Bottle-Matic Label Applicator enables the user to label all kinds of cylindrical objects by simply inserting the container and pressing a foot switch.
Once the foot switch is activated the label is applied at over 4.5″ per second, most water bottles are labeled in less than 2 seconds!
This allows the user to quickly remove the bottle and insert another to start the procedure again.
Once a rhythm is established bottles are labeled VERY quickly. The Bottle-Matic can label products at speeds of 1200 Pieces an hour!
2 Models Available:
Single Label Bottle-Matic: This model applies a single label to your cylindrical container.
Dual Label ( Front and Back ) Bottle-Matic II:This model applies both a front and back label to your cylindrical container
2 Sizes Available:
The Bottle-Matic 10″: is designed for cylindrical items from .5″ – 6″ in diameter, and from 2″ – 9″ in container height.
The Bottle-Matic 16″: is designed for cylindrical items from .5″ – 6″ in diameter, and from 2″ – 15″ in container height
Waste-Rewinder– $375: This option automatically rewinds the waste paper that is produced after labeling your product. Without this attached the waste paper would simple fall over the back of the machine and into a waste bin.
Auto-Matic- $140: This labeling option allows you to just insert your bottle and the labeler automatically activates. Foot switch is still included, but not needed!
Bottle-Counter- $45.00: This option counts each operation with a digital counter.
DON’T BE FOOLED! Know your getting the REAL DEAL with Bottle-Matic, we designed the machine from the ground up! (Not imported, or knock-off)
SATISFACTION GUARANTEED. If we cannot make you happy within 21 days, send it back. Limit 1 per customer.
label objects from .5″ to 6″ diameter. From a Test Tube to a 1.5 gallon bottle .
ACCURATE: Holds 1/64th” side-side accuracy on most containers.
Label cylinders to 15″ length (or longer if the item has a neck)
Able to handle most tapered containers by simply adjusting the idle roller position.
Labels over 1200 pcs per hour with average dexterity. (more if you have a fast employee)
Dispensa-Matic Label Dispensers pride in ORIGINATION! While others copy our technology and designs, we continue to be in the forefront bottle label applicator design.
Costs are a fraction of similar machines of the same build quality.
Physical trigger into optical sensor activated, will work on all kinds of labels.
We manufacture the Bottle-Matic, so we are able to do any modifications necessary for those hard to label containers, but labels most containers without modification.
We use very few outside sources for our machine components.
Side frames: Laser-Cut from the drawing quality steel then formed, countersunk, de burred, and inspected one at a time at our facility.
Dispensing Tables: formed out of 6061-T6 Aluminum. The peel edge is hand milled to spec within .001″ using a special hand-made cutting tool to get that perfect peeling edge needed to dispense labels without tearing the backing paper. (35 years of perfecting the peeling action) Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate.
Motors: Bottle-Matic uses DUAL AC shaded pole gear motors, made in the USA, to our specifications.(no cheap DC motors here)
Bottle-Matic Label Requirements:
- Must be on 3” core
- Must have approximately an 1/8” gap between labels
- Must be in copy position 3 or 4 – Copy position 3 is recommended
- Maximum roll diameter 9”
- Label must be over 2mil thick
- Length of label must be over 1”
- For 10″ Bottle-Matic Labels can be between 1 1/2″ & 9″ wide
- For 16″ Bottle-Matic Labels can be between 2″ and 15″ wide
Avoid clear cellophane backing paper (you can use it, but you must order your machine with the optional “Waste Rewinder” $375 – this material wants to cling to the machine and get tangled in rollers.
NOTE – Narrow labels will work, but must be on backing paper of at least 1 ½” wide.
Front/Back labels MUST be on same roll – (cannot use multiple rolls)
