Quick Facts

  • null

    Printer Cost: $8,495.00

  • null

    Monthly Use: 5,000–70,000+

  • null

    Ink Type: Water Shield Dye

  • null

    Print Speed: Fast

  • null

    Max Print Width: 8.5 in (216 mm)

  • null

    Max Roll Diameter: 8 in (203 mm)

Professional Print Quality at High Speeds

The L801’s combination of print quality, speed, and ink cost is tough to beat.

The L801 is a Memjet-powered industrial inkjet printer that is ideal for short- to medium-range print runs for prime and secondary labeling applications. It prints on continuous or die-cut stock from 2 to 8.5 inches in width, in full color, and speeds up to 60 feet per minute. The super-fine resolution makes for crisp text and barcodes, even at very small sizes. This detail, combined with vivid colors and rich blacks, makes labels look sharp and vibrant. The L801 is also compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks.



L801 Plus Printer

Minimize ongoing ink costs

Cost per label should be as important as printer cost when investing in a label printer. L801’s industry-leading ink cost reduces ongoing costs and easily calculated using the included software. It holds 1.25 liters of ink to support large runs and has easy-access doors for fast and simple media and ink replacement. An optional powered rewinder makes printing to finished rolls simple.

L801 Plus with WaterShield™ Water-Resistant Inks

Watershield water resistant color dye based inkjet inks from Afinia Label

Ask about the L801 Plus for increased water resistance

The Plus model offers increased water and moisture resistance1.

WaterShield-printed labels are significantly more resistant to the effects of prolonged moisture exposure than conventional dye-based inkjet labels. This makes the L801 Plus perfect for applications such as chilled beverages, foods, chemical or pharmaceutical products.

This new technology also produces more neutral grays and uses more responsibly-sourced inks2.

1 Water resistance can be media-dependent. Always test your printed label to be sure it meets your requirements.
2 Watershield™ inks do not contain chemicals that are considered to be harmful to humans or the environment

  • High-volume printing
  • Fast print speeds (≤ 12 IPS)
  • Super low ink costs
  • Water-resistant inks available

Roll-to-roll label printing

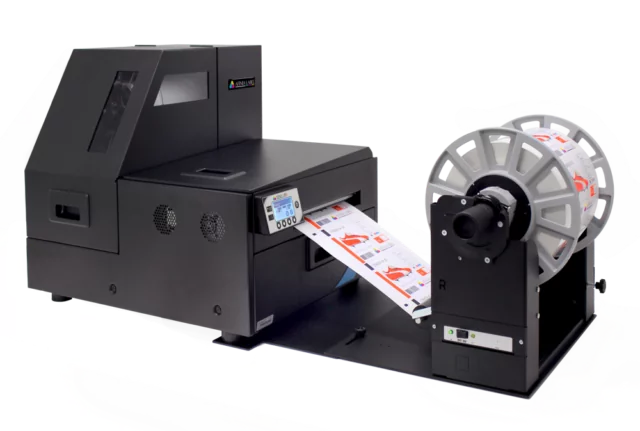

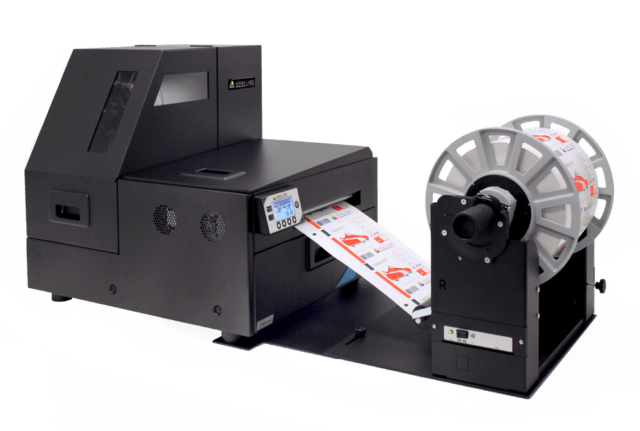

Afinia Label L801 Rewinder for roll to roll labeling

The optional rewinder pairs perfectly with the L801 to allow for continuous, roll-to-roll label production. Easily handle rolls up to 8 inches in outside diameter for high-volume jobs and reduced media costs. It’s a recommended addition for companies that experience high usage.

Like the L801, the rewinder can handle label sizes up to 8.5″ wide and rolls with up to 8.0″ outside diameter. It gives you the ability to choose the direction of rotation to situate labels, either face-in or face-out.

Once rewinding is complete, remove the core holder and the completed roll.

Memjet Waterfall Technology

The L801 Industrial Color Label Printer is a digital label printer that uses Memjet technology, allowing you to print high-impact, full-color output at up to 60 ft/min (18 m/min). Memjet’s stationary “waterfall” printhead technology allows TCS Digital Solutions labels and tags to move quickly through the printer while maintaining excellent print resolution.

High quality & resolution

Using the L801 industrial color label printer, you can print at up to 1600 x 1600 dpi for vivid, eye-catching labels. Using CMYKK (two black ink cartridges), the L801 offers exceptional color and rich blacks, giving you the ability to print with better contrast.

Low cost of ownership

Afinia Label Memjet label printers allow you to save on consumables. The L801 holds 1.25 liters of ink to support large runs and offers an industry-leading low ink cost. Send us your label files, and we will determine the ink cost for you.

Printer
Print Method:Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip)
Inks:Dye-based, 250mL CMYKK cartridges (1.25L total) — Watershield water-resistant formula available
Print Resolution:1600×1600 dpi or 1600×800 dpi
Print Speed:6"–12" per second (152mm-305mm)
Print Width:8.5" (216mm)
Media
Media Types:Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks
Media Width:2"–8.5" (50.8mm–216mm)
Media Length:2"–40" (50.8mm–1016mm)
Thickness:Minimum 0.005" (0.13mm) Maximum 0.01" (0.3mm, including liner)
Maximum Roll Diameter:8" (203.2mm)
Core Diameter:Requires 3" (76.2mm) cardboard core
Media Sensors:Gap, continuous, black mark
Die-Cut Label Gap:Minimum 0.125" (3.0mm) Maximum 0.3" (8.0mm)
Black mark:3mm wide, 25.4mm long, Left side position
General
Cutter/sheeter:Powered
Interfaces:USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
Operating System:Windows 7+ (32 and 64 bit)
Barcode Font:1D Barcode at least Grade B (Code39) with 10mils bar width
2-D Code Printing:2D Barcode at least Grade B (PDF417) with 10mils cell size
Operating Temperature:15°–35°C (59°–95°F) at RH 20–80%
Storage Temperature:-5°–50°C (23°–113°F) at RH up to 85%, non-condensing at 65°
Overall Dimensions:18.9" (480mm) W, 19" (485mm) D, 21.1" (535mm) H
Weight:83 lbs. (37.6kg)
Rated Voltage:AC 110V – 220V
Rated Frequency:50–60Hz
Warranty:One year
