This Product is Discontinued!
Please see the QuickLabel QL-120X Here
We still carry parts, ink and media for the QL-120 see below.

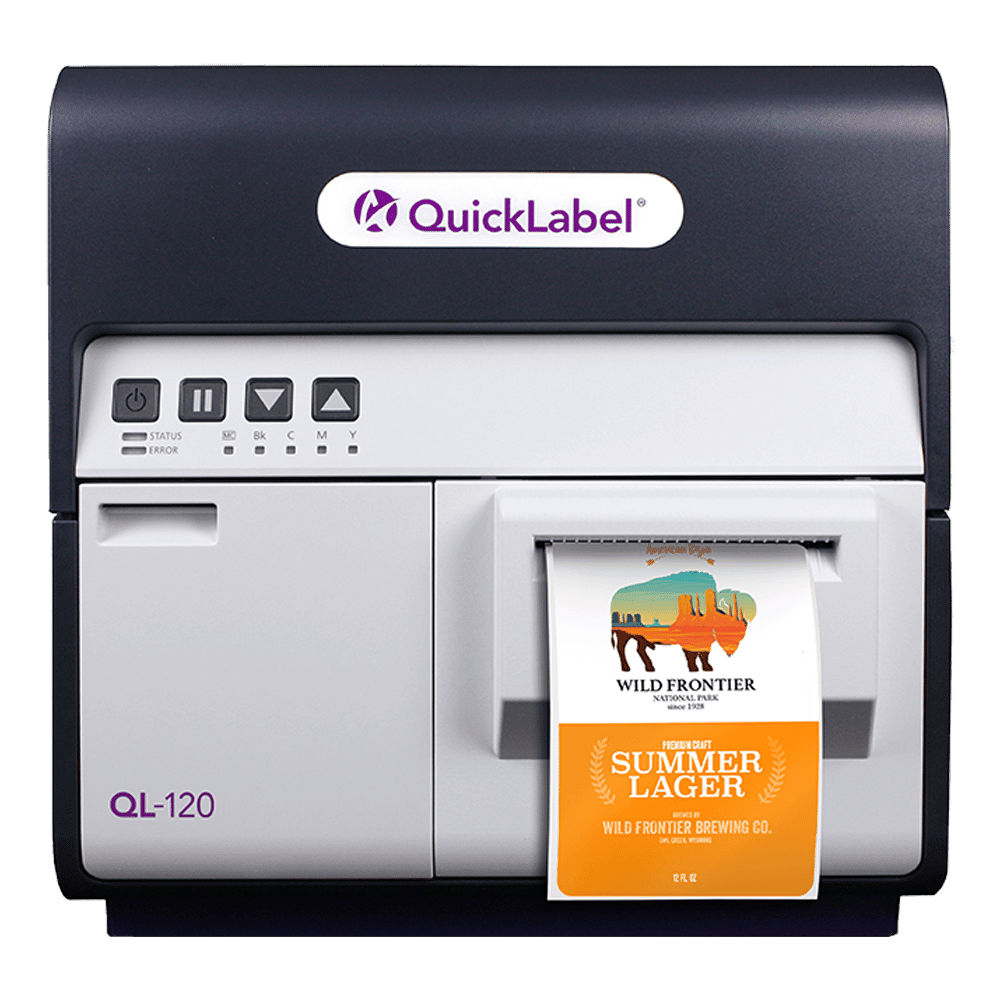

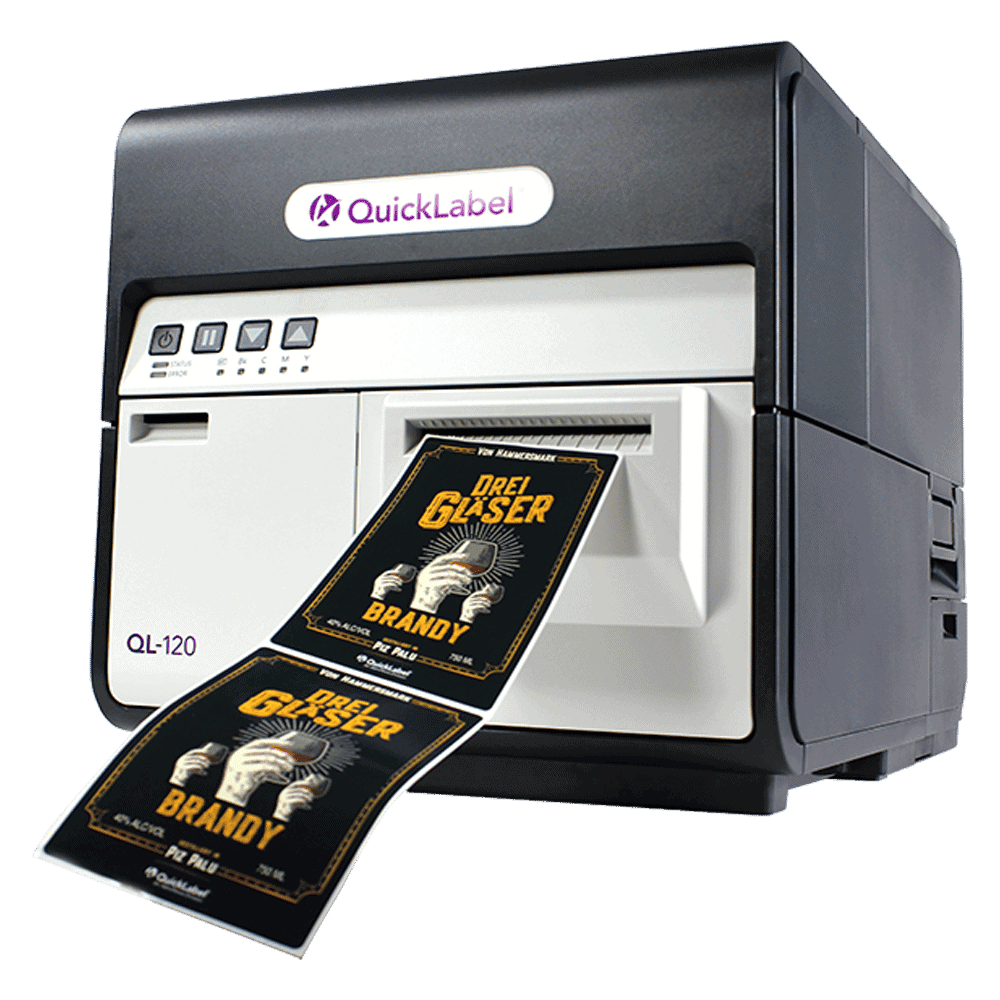

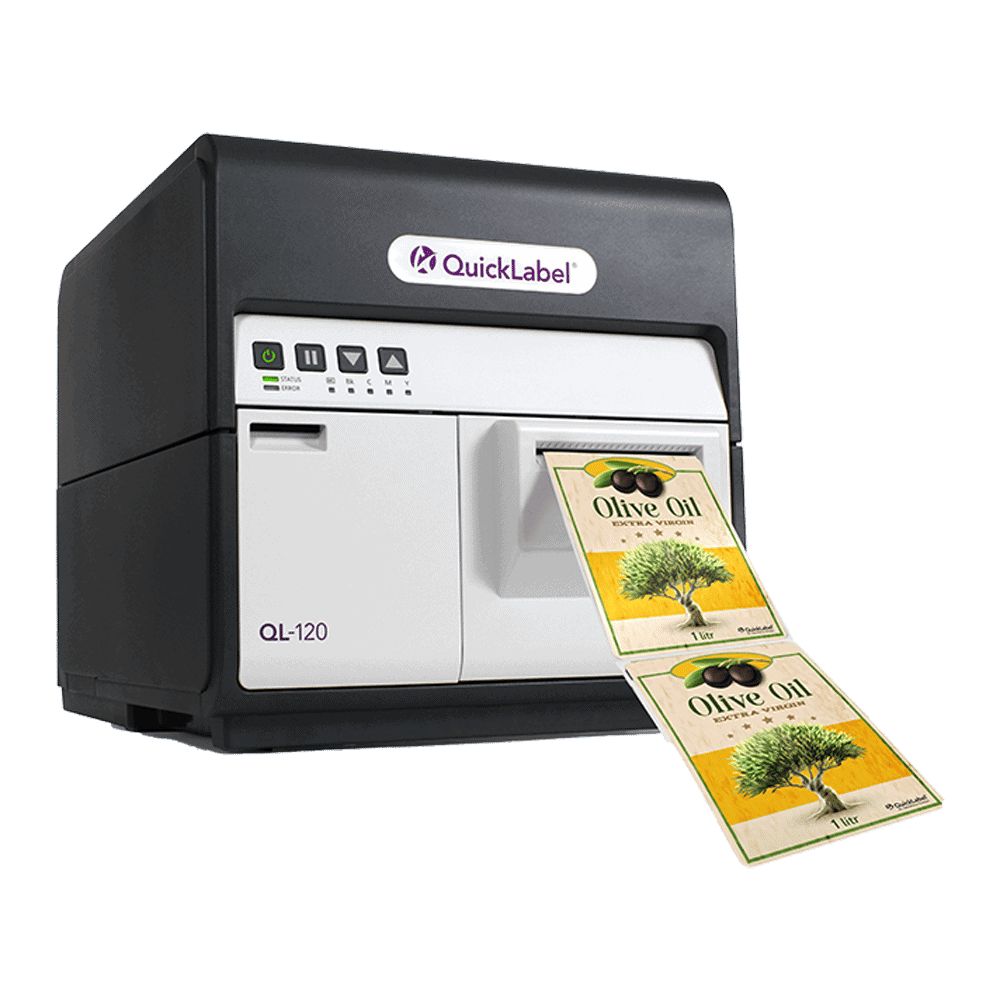

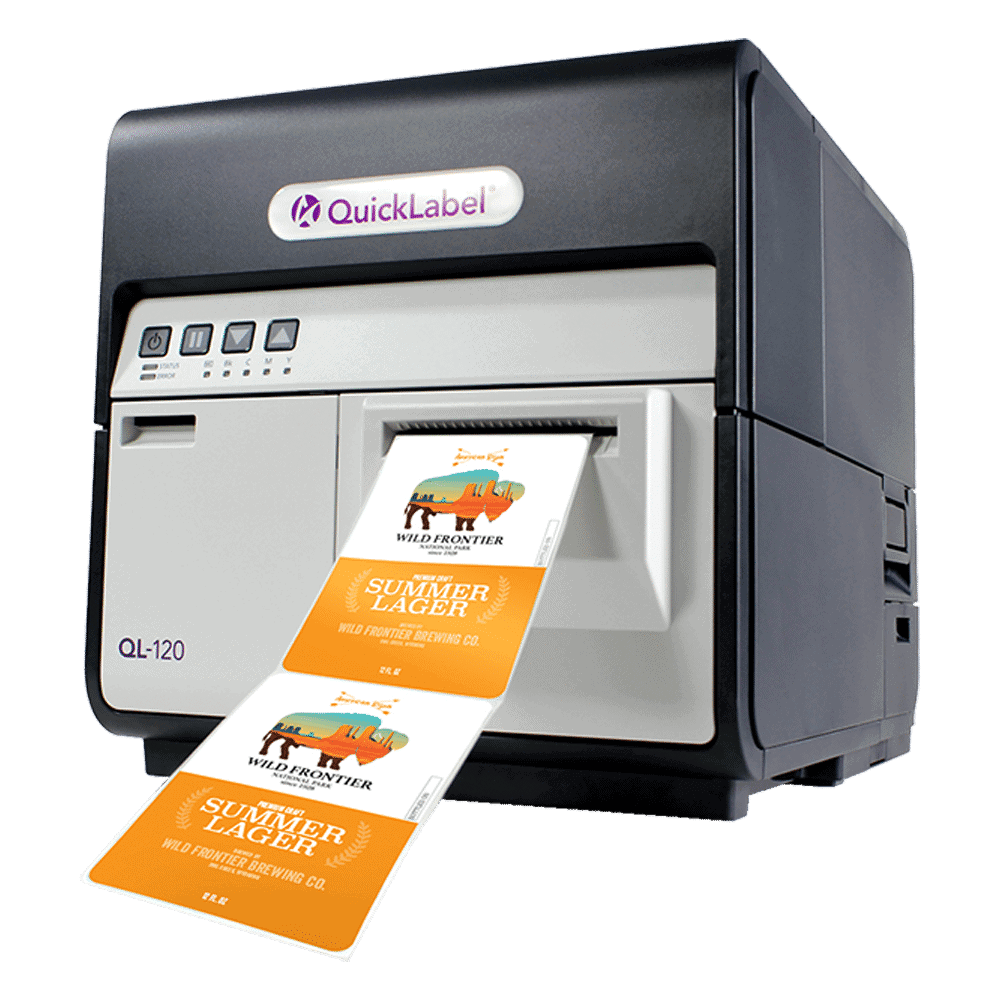

The Kiaro!® QL-120 is a fast color label printer, featuring industry-leading print quality, reliability, performance, and connectivity.
Built on the pioneering Kiaro! color label printing platform, the Kiaro! QL-120 features enhanced print speed, seamless integration into desktop or enterprise platforms, and high-quality color labels that rival flexographic labels. By taking high-quality label production in-house, the QL-120 eliminates the need for costly preprinted label inventory. For instance, overstocked label inventory usually develops from obsolescence, revisions, or regulatory changes.
Simple to install and easy-to-use, the QL-120 delivers premium 1200 x 1200 dpi color labels on an as-needed basis and cost-effective manner. Offering flexible print widths that are unmatched in the industry, the QL-120 enables users to print labels as narrow as 0.5” or as wide as 4.2” on the same device.
With the ability to generate both extremely short and incredibly long runs (up to 10,000 labels per hour*), the QL-120 is built for exceptionally flexible production.
Featuring a function-rich Windows operating interface, with fully-integral utility and status monitoring software, the QL-120 enables users to quickly and remotely manage printer setup and operation. The QL-120 also features self-maintenance during the printing process, resulting in the highest quality printed labels with little to no user intervention.
Every QL-120 also includes one free license to CQL Pro, our advanced labeling software that allows users to design, manage, and print their own labels effortlessly.
Ideal for: food and beverage, biomedical product, nutraceutical, hardware, e-liquid, personal care products, cosmetics, promotional products labeling, and more.
Benefits:
- Highest throughput available in a desktop color label printer with print speeds of up to 60 feet per minute (12 ips or 305 mm/s)

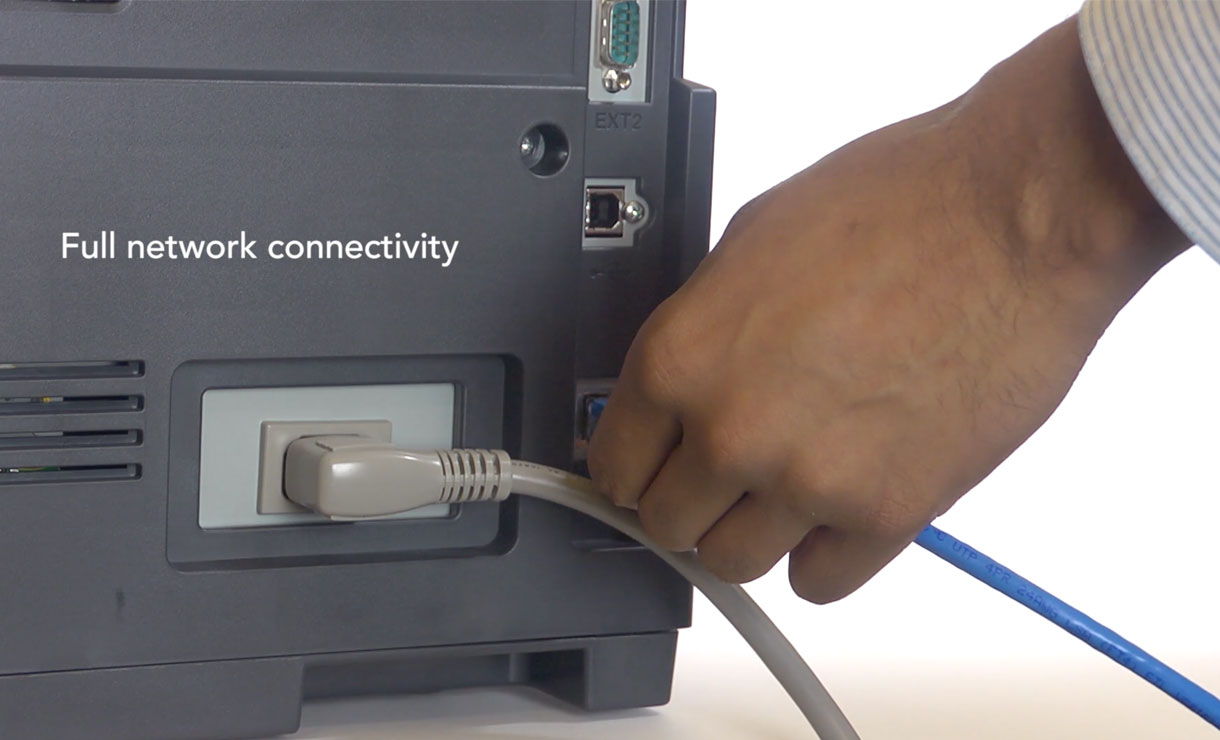

- Network-friendly printer configuration and operation for simple management in TCP/IP environments.
- Exclusive image processing and color matching for exceptional color accuracy
- Optimized data processing through CQL Pro software ensures efficient variable-data label jobs
- Built-in automatic cutter with user-specified intervals to synchronize print jobs with production needs
- External printer control and status monitoring for high-level integration with automatic label applicators and other production systems
- Compact, desktop design constructed to easily fit inside small production cells
Warranty
- Warranty: Each Kiaro! QL-120 comes with a standard One-Year Warranty, excluding wear parts. Telephone and email Technical Support Assistance. An extended 2-year warranty is also available for an additional fee.
Printer | |
Print Method: | Enter Specs Here |

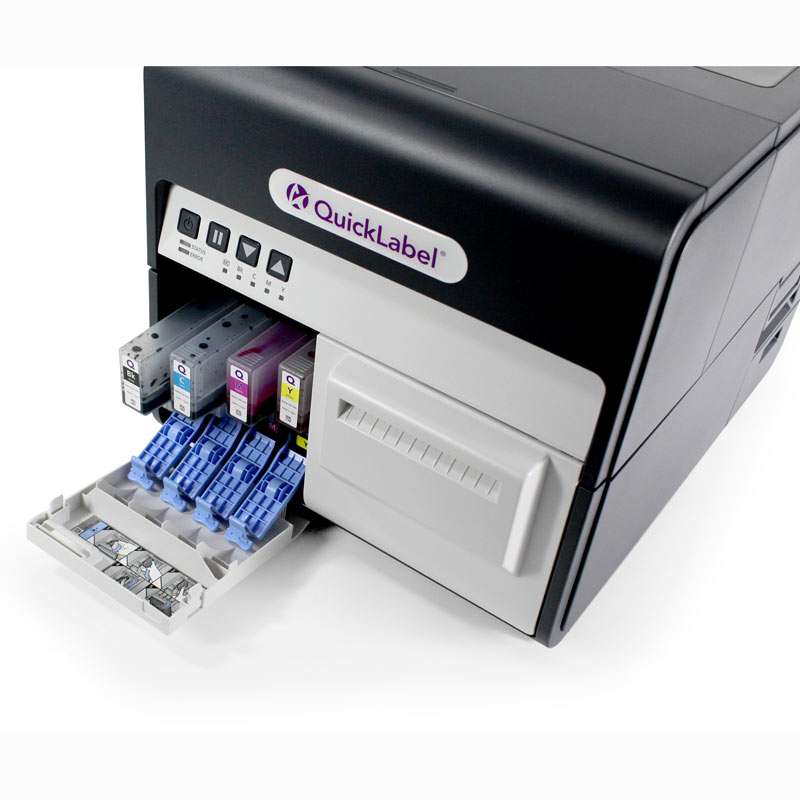

Inks: | Dye ink, (4) individual CMYK cartridges |
Print Resolution: | 1200 x 1200 dpi / 1200 x 600 dpi |
Print Speed: | 2 ips (50 mm/sec) – 12 ips (305 mm/sec) |
Print Width: | 0.5″ (12.7 mm) – 4.2″ (105.9 mm) |
Media | |
Media Types: | Matte, semi-gloss, high gloss papers and synthetics as well as tag stocks and other specialty labels |
Media Width: | 1.0″ (25.4 mm) – 4.53″ (115 mm) |
Media Length: | 0.24″ (6 mm) – 30″ (762 mm) |
Thickness: | 5.7 mil (0.145 mm) – 10 mil (0.255 mm) |
Maximum Roll Diameter: | 7.9″ OD (200 mm), 11.8” OD (300 mm) with optional UW-5.1 External Unwinder |
Core Diameter: | 3″ ID (76 mm) |
Media Sensors: | Gap, Reflective (black mark), Continuous |
Die-Cut Label Gap: | Enter Specs Here |
Black mark: | Enter Specs Here |
General | |
Cutter/sheeter: | Enter Specs Here |
Interfaces: | High-Speed USB 2.0; Gigabit Ethernet; RS-232 External Control Interface & Protocol |
Operating System: | Microsoft Windows® 10, 8, 7; Windows Server® 2012, 2008, 64/32-bit Drivers |
Barcode Font: | Enter Specs Here |
2-D Code Printing: | Enter Specs Here |
Operating Temperature: | 59º F to 86º F (15º C to 30º C), 10% to 90% Relative Humidity (non-condensing) |
Storage Temperature: | Enter Specs Here |
Overall Dimensions: | 15.2″ L x 22.2″ W x 15.5″ H (386 mm x 564 mm x 394 mm) |
Weight: | 52.9 lbs. (24 Kg) without supplies; 56.1 lbs. (26 Kg) with supplies; 68.2 lbs. (31 Kg) shipping |
Rated Voltage: | 100 – 240V, 1.5A/0.5A |
Rated Frequency: | 50/60Hz |
Warranty: | Each Kiaro! QL-120 comes with a standard One-Year Warranty, excluding wear parts. Telephone and email Technical Support Assistance. An extended 2-year warranty is also available for an additional fee. |
