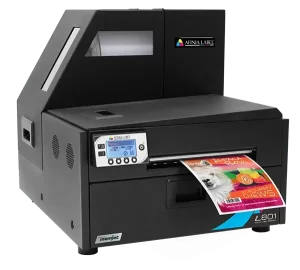

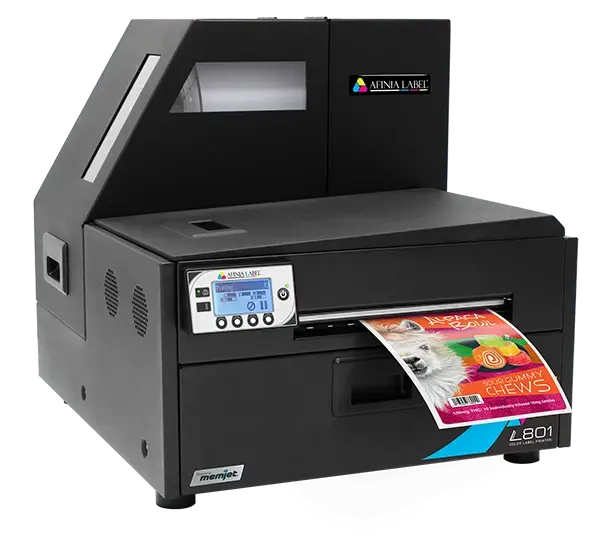

Afinia L801 – Professional Print Quality at High Speeds
Minimize ongoing ink costs
Cost per label should be as important as printer cost when investing in a label printer. L801’s industry-leading ink cost reduces ongoing costs and easily calculated using the included software. It holds 1.25 liters of ink to support large runs and has easy-access doors for fast and simple media and ink replacement. An optional powered rewinder makes printing to finished rolls simple.
Roll-to-roll label printing

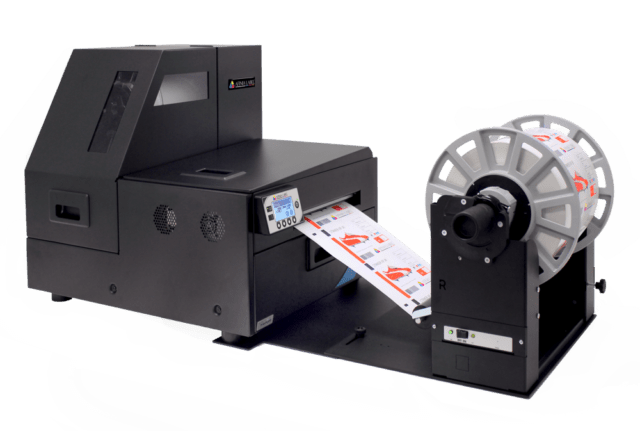

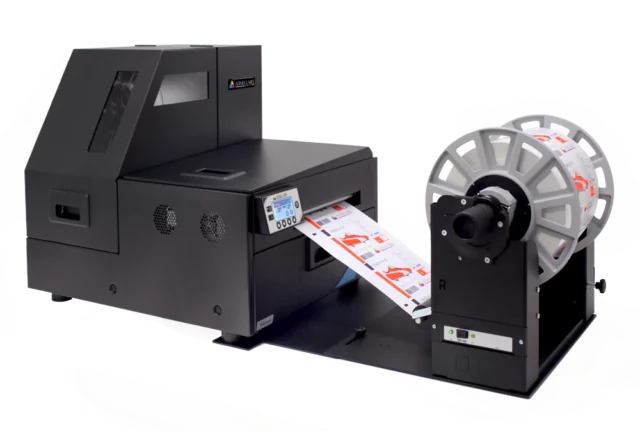

The optional rewinder pairs perfectly with the L801 to allow for continuous, roll-to-roll label production. Easily handle rolls up to 8 inches in outside diameter for high-volume jobs and reduced media costs. It’s a recommended addition for companies that experience high usage.
Like the L801, the rewinder can handle label sizes up to 8.5″ wide and rolls with up to 8.0″ outside diameter. It gives you the ability to choose the direction of rotation to situate labels, either face-in or face-out.
Once rewinding is complete, remove the core holder and the completed roll.
Memjet Waterfall Technology
The L801 Industrial Color Label Printer is a digital label printer that uses Memjet technology, allowing you to print high-impact, full-color output at up to 60 ft/min (18 m/min). Memjet’s stationary “waterfall” printhead technology allows TCS Digital Solutions labels and tags to move quickly through the printer while maintaining excellent print resolution.
High quality & resolution
Using the L801 industrial color label printer, you can print at up to 1600 x 1600 dpi for vivid, eye-catching labels. Using CMYKK (two black ink cartridges), the L801 offers exceptional color and rich blacks, giving you the ability to print with better contrast.
Low cost of ownership
Afinia Label Memjet label printers allow you to save on consumables. The L801 holds 1.25 liters of ink to support large runs and offers an industry-leading low ink cost. Send us your label files, and we will determine the ink cost for you.
If you’re seeking a greater diversity of label printers, explore our range of Afinia printers to find the perfect fit for your business requirements. For inquiries regarding our Refurb- Afinia L801 Printer, reach out to us through our contact form, phone (762) 208-6985, or email orders@tcsdigitalsolutions.com. Our experienced team is here to provide support.
| Printer | |
| Print Method: | Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip) |
| Inks: | Dye-based, 250mL CMYKK cartridges (1.25L total) — Watershield water-resistant formula available |
| Print Resolution: | 1600×1600 dpi or 1600×800 dpi |
| Print Speed: | 6"–12" per second (152mm-305mm) |
| Print Width: | 8.5" (216mm) |
| Media | |
| Media Types: | Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks |
| Media Width: | 2"–8.5" (50.8mm–216mm) |
| Media Length: | 2"–40" (50.8mm–1016mm) |
| Thickness: | Minimum 0.005" (0.13mm) Maximum 0.01" (0.3mm, including liner) |
| Maximum Roll Diameter: | 8" (203.2mm) |
| Core Diameter: | Requires 3" (76.2mm) cardboard core |
| Media Sensors: | Gap, continuous, black mark |
| Die-Cut Label Gap: | Minimum 0.125" (3.0mm) Maximum 0.3" (8.0mm) |
| Black mark: | 3mm wide, 25.4mm long, Left side position |
| General | |
| Cutter/sheeter: | Powered |
| Interfaces: | USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control |
| Operating System: | Windows 7+ (32 and 64 bit) |
| Barcode Font: | 1D Barcode at least Grade B (Code39) with 10mils bar width |
| 2-D Code Printing: | 2D Barcode at least Grade B (PDF417) with 10mils cell size |
| Operating Temperature: | 15°–35°C (59°–95°F) at RH 20–80% |
| Storage Temperature: | -5°–50°C (23°–113°F) at RH up to 85%, non-condensing at 65° |
| Overall Dimensions: | 18.9" (480mm) W, 19" (485mm) D, 21.1" (535mm) H |
| Weight: | 83 lbs. (37.6kg) |
| Rated Voltage: | AC 110V – 220V |
| Rated Frequency: | 50–60Hz |
| Warranty: | One year |
