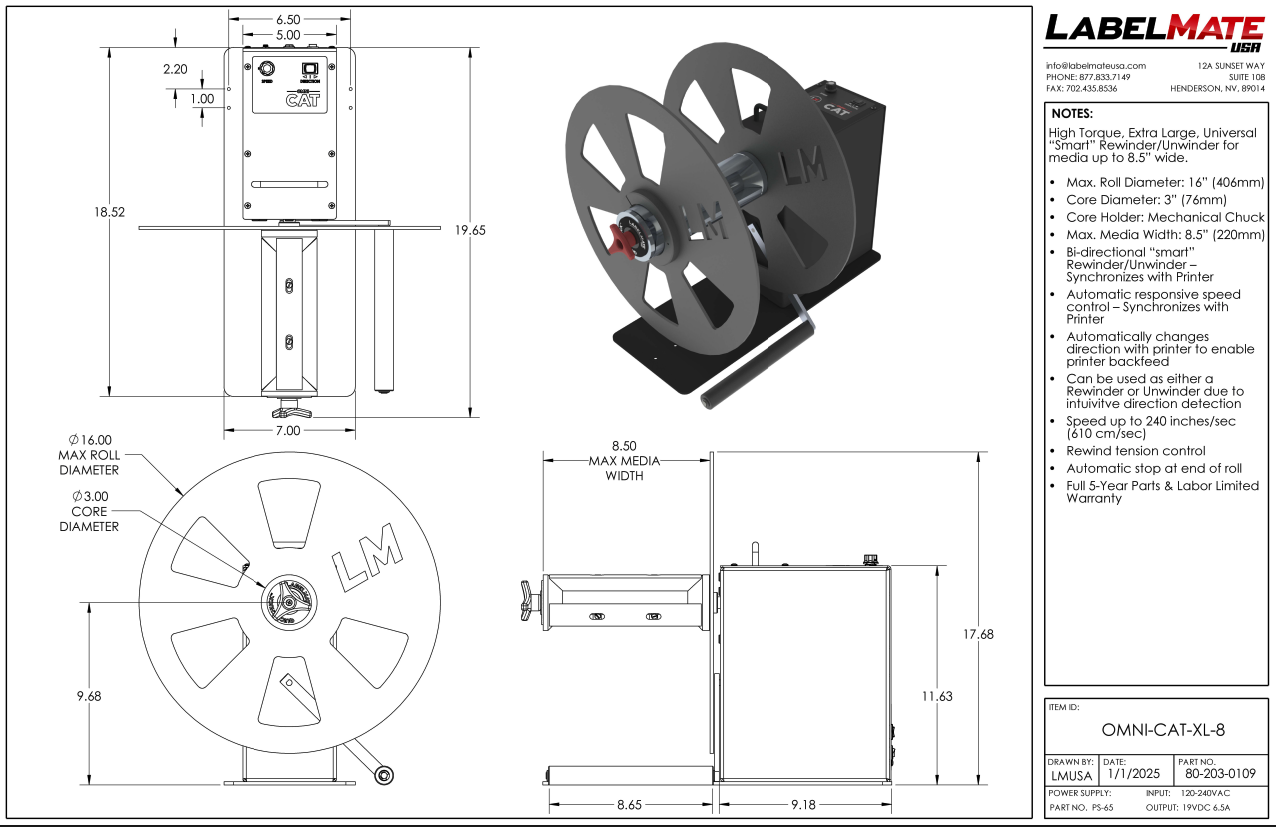

High Torque Rewinder with Sensor Arm, for media up to 8.5″ wide, and roll diameters up to 16″.
- Max. Roll Diameter: 16″ (406mm)
- Core Diameter: 3″ (76mm)
- Core Holder: Mechanical Chuck
- Max. Media Width: 8.5″ (216mm)
- Full 5-Year Parts and Labor Limited Warranty
OMNI-CAT-XL-8 High-Torque Rewinders with a Sensor Arm are the solution for rewinding very heavy rolls in-line from a printer, and in applications where extra torque is required. These Rewinders utilize high-torque gear motors that cannot be stalled, but the sensor arm on the units starts and stops the rewind action as dictated by the printer or other external device. OMNI-CAT-XL-8 Rewinders are bi-directional and equipped with fully adjustable speed control.
Shipping Information
- Size: 20″×20″×12″ (508x508x305mm)
- Weight: 36 lbs. (16.3-kg)
If you seek more options for label rewinders, explore our assortment of Label rewinders to find the ideal solution tailored to your business requirements. For any further information about our Labelmate Rewinders & Unwinders, please contact us via our contact form, phone (678)824-2304, or email orders@tcsdigitalsolutions.com. Our expert team is here to help.
