DPR Roll-to-Roll System for Epson ColorWorks C3500, C4000 SKU(S): ASD1111+ASS1111+EPS35-JPL

DPR Roll-to-Roll System for Epson ColorWorks C3500, C4000 SKU(S): ASD1111+ASS1111+EPS35-JPL

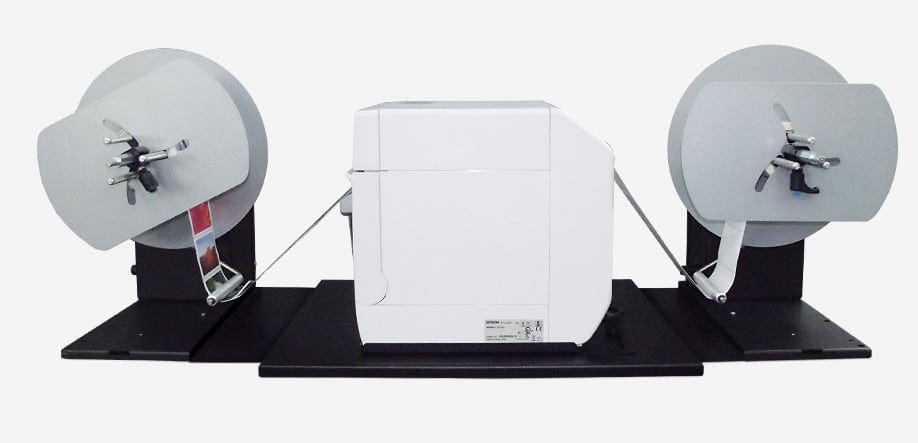

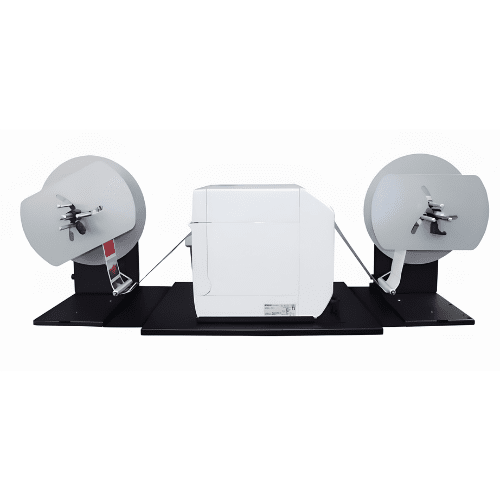

The rewinder and unwinder for Epson TM-C3500 & C4000 printers are used to manage rolls of media up to 5″ (127mm) having an outside diameter up to 10″ (250mm). Units are equipped with adjustable core holder 1.57″ (40mm) – 4.64″ (118mm).

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

An external power supply 100/240VAC – 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.
