Dispensa-Matic U45 Label Dispenser, U-45 High Speed with Switch, Up to 4.5″ Wide SKU: Dispensa-Matic-U45-HS-Switch

Original price was: $750.00.Current price is: $713.00.
FREE SHIPPING over $199*
Orders before 12PM EST usually Ship Same Business Day

In Stock

Dispensa-Matic U45 Label Dispenser, U-45 High Speed with Switch, Up to 4.5″ Wide SKU: Dispensa-Matic-U45-HS-Switch

High Speed Model. Dispensa-Matic U-45 Label Dispenser for labels to 4.5″ widths.



Lowest Price Guarantee* Call or Email for Best Price

Description

This Listing is for model:

Dispensa-Matic U45 Label Dispenser, U-45 High Speed with Switch, Up to 4.5″ Wide SKU: Dispensa-Matic-U45-HS-Switch

About Dispensa-Matic U45 Label Dispensers

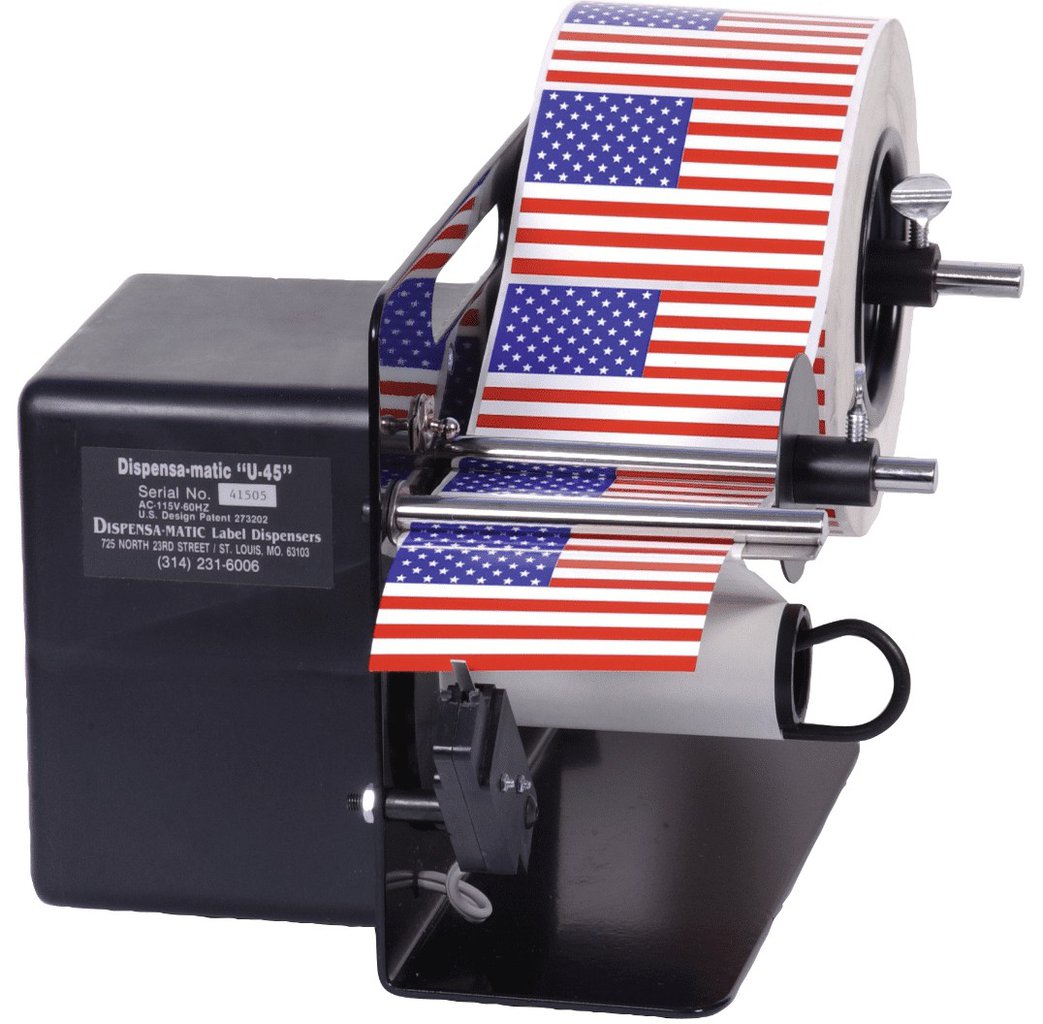

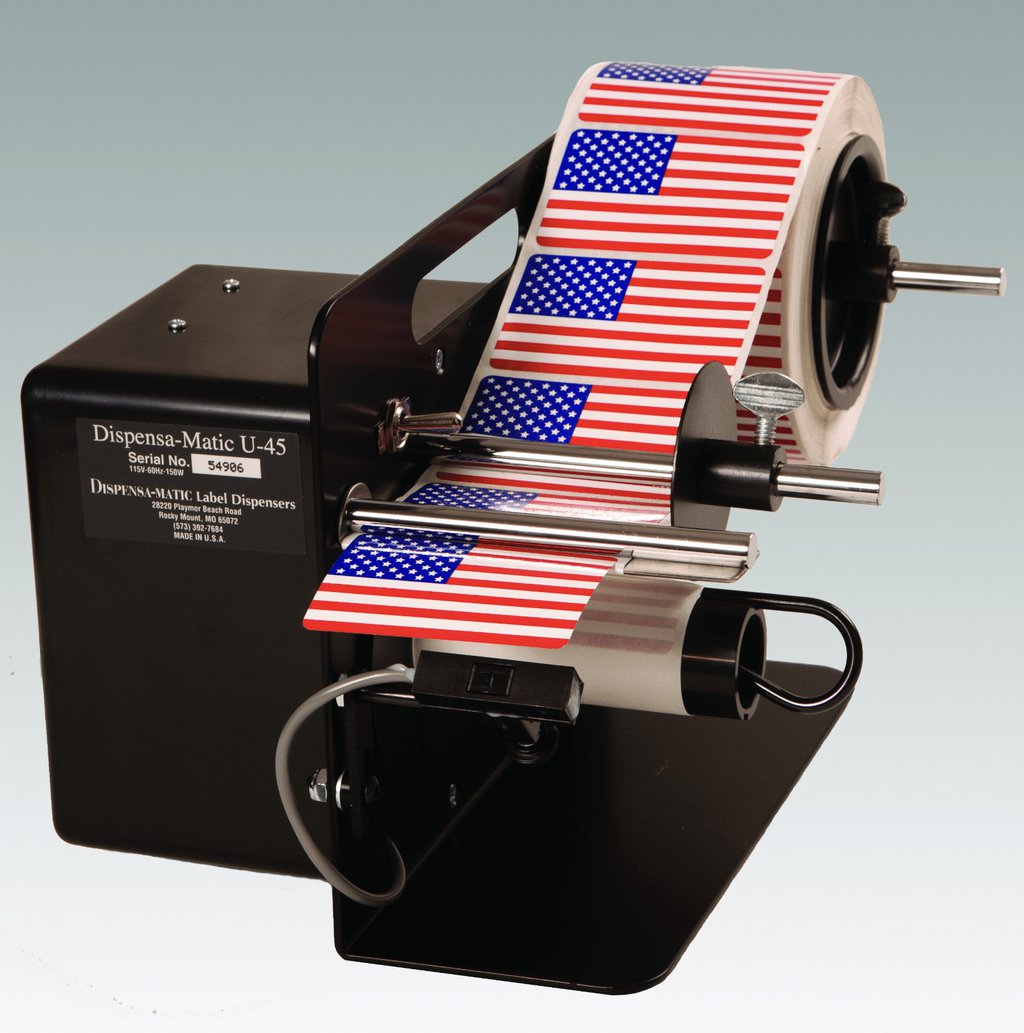

Dispensa-Matic U-45 Label Dispenser: Is a simple heavy-duty semi-automatic electric label dispenser that is designed for labels from 3/8 of an inch to 4 and 1/2 inch widths to any length tall. This label dispenser advances at over 5″ per second Standard Speed, and 11″ per second High Speed. U-45 allows you to peel small labels with ease.

Dispensa-Matic Label Dispensers now have 2 options for sensing labels. The standard option is a photo detector that detects the label by “seeing” it from .5″ to 1.5″ away. This method works for most labels, even transparent ones. The other option is a brand new design, another Dispensa-Matic patented Original from Richard Shannon! It is an optical sensor with physical detector, allowing even the thinnest transparent labels to be sensed with ease. This sensor will operate with less than 2 grams of force (one fourth the force of the previous micro-switch), but tested to last for over 2 million labels!

SATISFACTION GUARANTEED. If we cannot make you happy within 21 days, send it back.

Two speed options available: High speed produces labels at 11″ per second verses Standard speed at 5″ per second
Two types of label sensing options, Photo Eye Detector, and Physical Detector (Switch)
Butt cut, or die cut compatible!
Multiple row compatible.
Semi-Automatic dispenser, pick, apply, and repeat.
Label Circuit boards, PCBs, small bottles, bags, ICs, or anything that needs a small label.

Full 3 Year warranty, including parts and labor.
If repair is ever needed we offer a 1-Day turn-around!

In house manufacturing, you know you will get support when you buy Dispensa-Matic.
Dispensa-Matic U-45 is always In-Stock and ready to ship

Product Details:

We use very few outside sources for our machine components.
Side frames: made using the highest quality metals then formed, countersunk, de-burred, and inspected one at a time at our facility.

Dispensing Tables: formed out of stainless. The peel edge is hand shaped to spec by our 20+ year machinist to get that perfect peeling edge needed to dispense labels without tearing the backing paper. Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate. (We do NOT use cheap teflon tape that will peel off over time!)

The U-45 motor: is a shaded pole AC motor, and is also made in the USA to our specifications. (No CHEAP 12v motors here!)

Dispensa-Matic U-45 is an original design: from Dispensa-Matic! American made precision, quality, support, and longevity with over 35 years of experience from the same owner/designer!

International compatibility: We use motor specifically for Europe and all other 220V 50/60hz, (no cheap 12v DC motors here)

Dispensa-Matic U-45 Operating Instructions

Dimensions: 11″x11″x8″, weight 11 Lbs

U-45 spec sheet

U-45HS spec sheet

Operating-Instructions-Dispensa-Matic-U25-U45-U60
