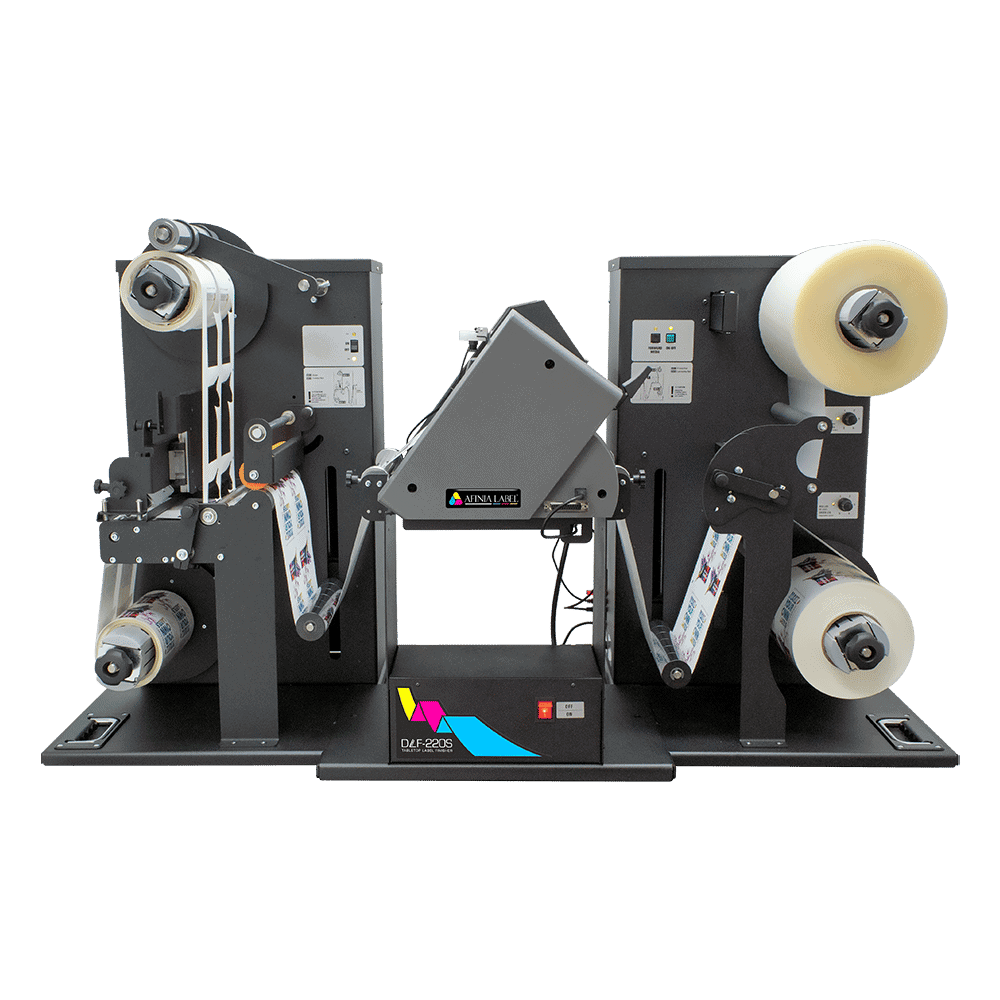

Compact, plotter-style label finishing system
Create fully-finished labels of any shape
Unwind, laminate, contour cut, remove waste, slit, and rewind in a straightforward process to create professionally-finished labels. These solutions are perfect for on-demand, short-run label finishing.
Convert labels into finished rolls, ready for application. DLF’s cutting process requires no physical dies. Cut paths can be varied as often as desired, giving users the flexibility to create any label shape on the fly.
- Tabletop consolidated form factor
- Plotter-cut from a digital file (no dies)
- Ideal for short runs & proofing
- Works with pre-printed rolls
| DLF-140S | |
| Cut Method: | Digital Plotter |
| Input / Output Roll Diameter: | 200mm (7.87") |
| Maximum Web Width: | 140mm (5.51") |
| Maximum Cutting Width: | 122mm (4.80") |
| Number of Slitting Blades: | up to 6 |
| Minimum Web Width: | 110mm (4.33”) |
| Minimum Slitting Width: | 19mm (0.75") |
| Minimum Label Length: | 10mm (0.39") |
| Maximum Label Length: | 300mm (11.8”) |
| Lamination Module: | Yes |
| Maximum Media Thickness: | 0.25mm (10 mil) |
| Maximum Cutting Speed: | 600mm/s (24 in/s) in all directions |
| Roll Core Size: | 76mm (3") |
| Agency Certifications: | CE, FCC, RoHS |
| Warranty: | One Year Parts and Labor. Usage Limitation may apply |
